FAD 650w 120v R7s Double Ended Halogen Bulb - 54574 Replacement Lamp

FAD 650w 120v R7s Double Ended Halogen Bulb - 54574 Replacement Lamp

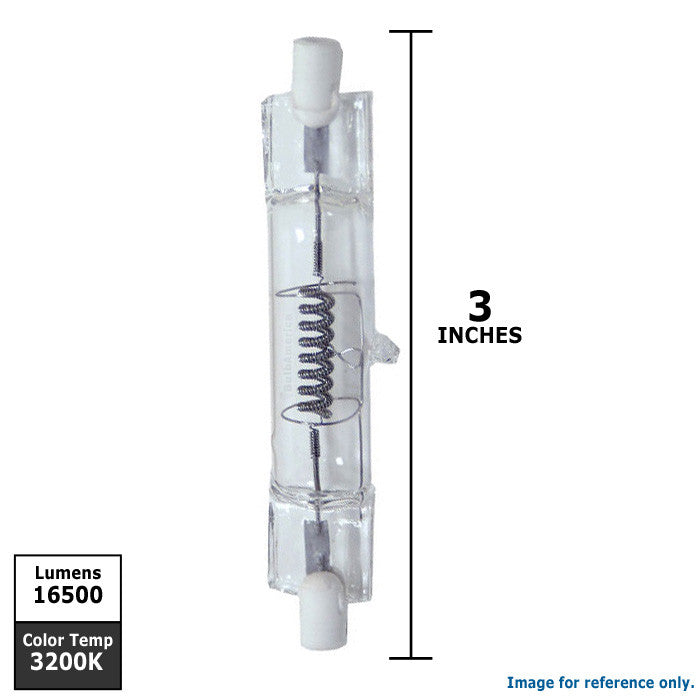

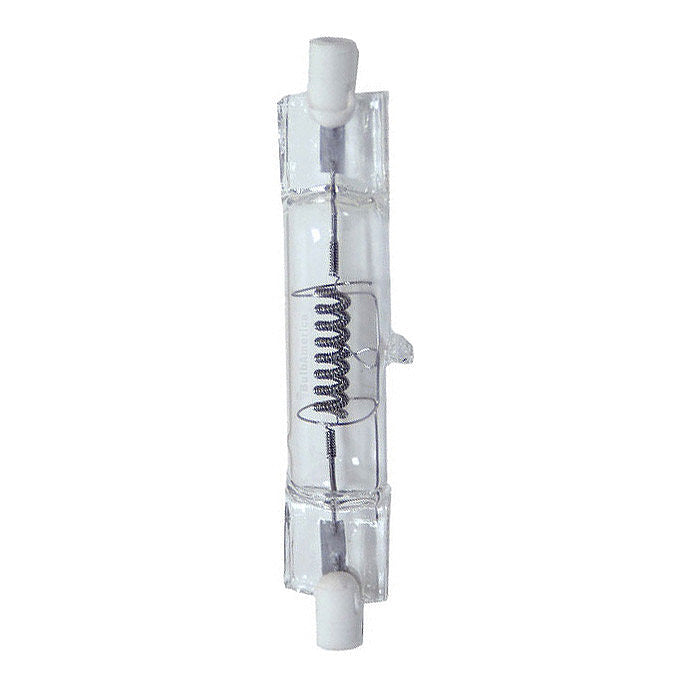

Bulbamerica 650 watts 120 volts R7s Double Ended Halogen Light Bulb, halogen double ended bulb with R7s Recessed Single Contact base, maximum overall lenght is 3.1inch.and has a rated life of 100 hours

Cross Reference:
- Imported Lamp Code 603016
- Atlas/Thorn P2/6
- Bogen FAD
- Bulbrite 762285 FAD
- Colortran B6-32
- Colortran 176-001
- Colotran 176-071
- EYE JPD650WC FAD
- GE 30325 FAD-Q650T4/CL
- Leitz 098-724
- Mole-Richardson 4051
- Nuarc VE-366
- osram 64725
- osram 64551
- osram Sylvania 54574 FAD
- Philips 6365R
- Smith-Victor 620040 FAD (clear)
- Sunlite 70200 FAD
- Ushio 1000471 FAD, JPD120V-650WC

Features:
- Wattage: 650w
- Voltge: 120V
- Base: R7S
- Light Output: 16500Lm
- Rated Life: 100 hours

Note:
Maximum Overall Length:3.10 (in)

Abbreviation Name	Q650T4/4CL
Ansi Code	FAD

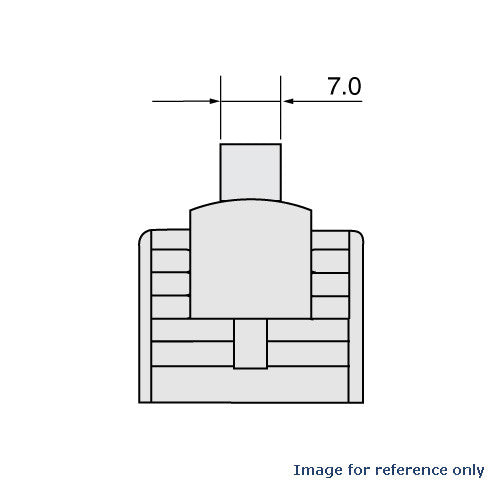

Base	R7s Recessed Single Contact
Bulb Type	Halogen Bulbs
Color Rendering Index (CRI)	100
Color Temperature (K)	3200K
Diameter (in)	0.50

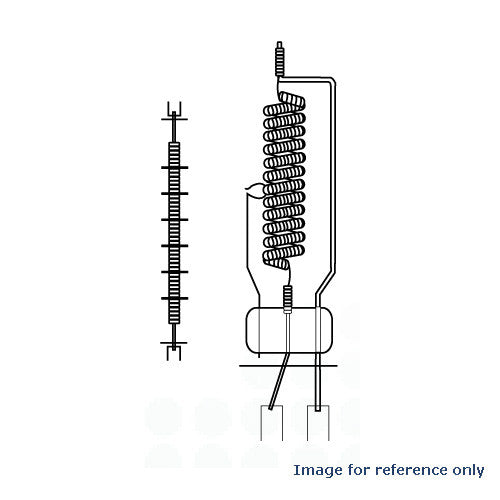

Filament	CC-8
Lamp Finish	Clear
Luminous Flux (LM)	16500
Maximum Overall Length	3.10 (in)
Rated Life (Hours)	100
Shape	Double-Ended
Voltage (V)	120V
Wattage (W)	650W

The FAD bulbs is used in following equipment
- ARRI ARRILITE 650
- Kobold Licht Bel. ST 800 P
- Mole - Richardson Type 2911
- Mole - Richardson Type 2981
- Mole - Richardson Type 4051
- Pani Ludwig CYCLORAMA IRIS
- Altman Q-LITE-JR
- Bogen Model 7050
- Eastman Kodak 2610
- Eastman Kodak 2620
- H. Wilson Corp. 2200
- H. Wilson Corp. 2200B
- H. Wilson Corp. 2200C
- Kenro 2750
- Leitz Diascriptor 4
- Mole-Richardson Teenie-Mole
- Nuarc NUQ2600
- Nuarc NUQ5300
- Nuarc SST1418-1-6
- Nuarc SST1418-6
- Nuarc VIC1418-15-6
- Nuarc VIC1418-2
- Nuarc VIC1418-25
- Nuarc VIC1418-6
- Nuarc VV1418BL-6
- Nuarc VV1418SS-6
- Nuarc VV1418SSBL-6
- Nuarc VV1418-6
- Nuarc 1418SC2
- Nuarc 2024V-6
- Smith-Victor 740-SG
-
