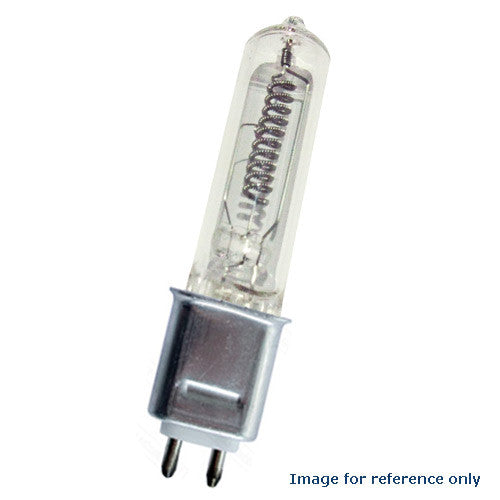

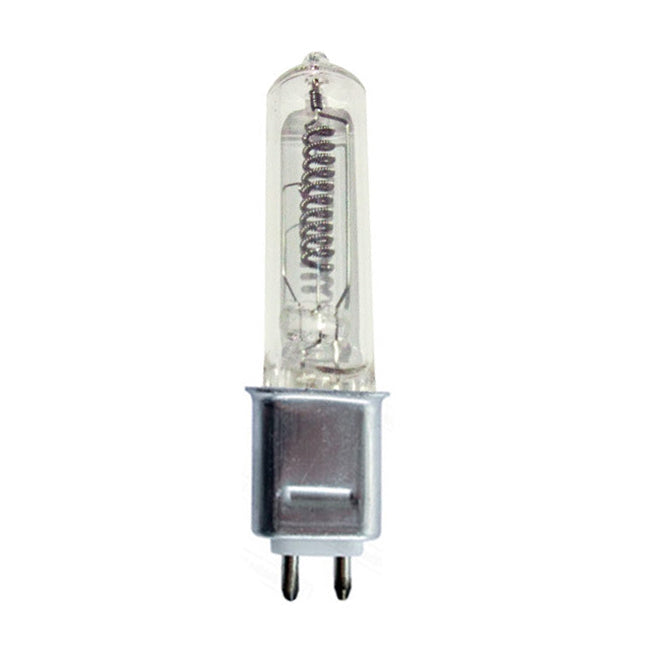

OSRAM FEL bulb - 1000w 120v G9.5 Single Ended Halogen Light Bulb

This is the OSRAM FEL. It uses 1000 watts, 120 volts. It has a G9.5 Medium Bipin. The rated life is 300 hours. This is also a Halogen light Bulb.

Applications
- Entertainment
- Theatre
- Stage
- Disco
- Concert

Features
- OSRAM FEL Halogen Bulb
- Single Ended Lamp
- Metal Base
- Replacement for ZB-FEL
- Colortran 176-033

The FEL bulbs is used in following equipment:
- Color Tran 5/50 Ellipsoidals
- Color Tran Zoom Ellipse
- Mole - Richardson Type 3311

Abbreviation Name	FEL

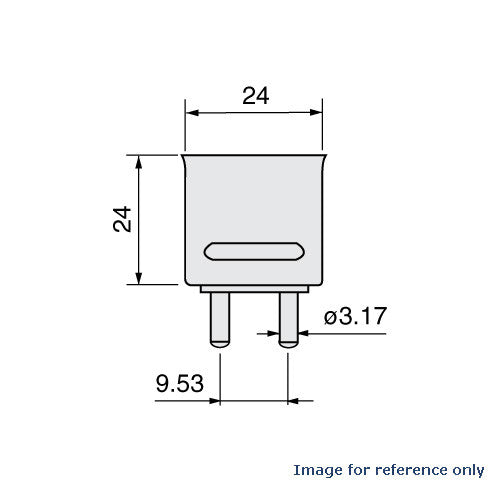

Base	G9.5 2-Pin
Bulb Type	Halogen Bulbs
Color Rendering Index (CRI)	100
Color Temperature (K)	3200K
Diameter (in)	0.780

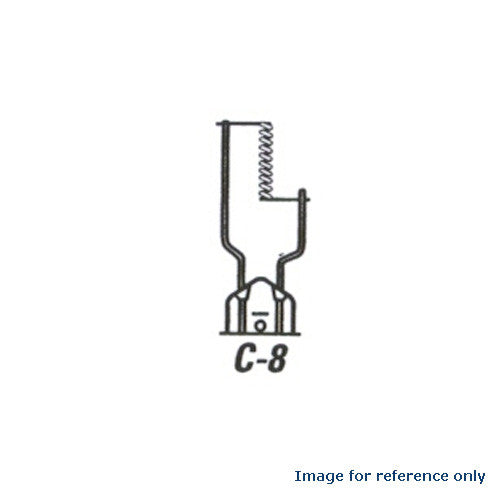

Filament	CC-8
Lamp Finish	Clear
Luminous Flux (LM)	27500

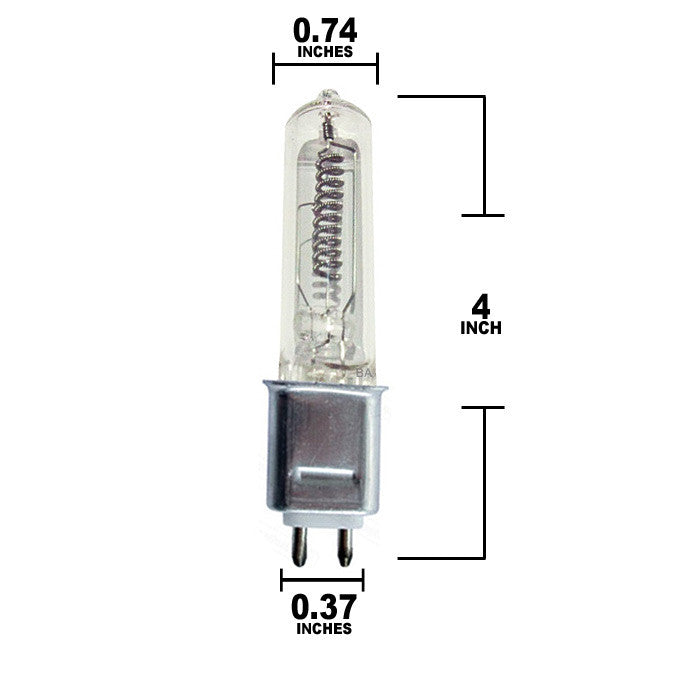

Maximum Overall Length (in)	3.939
Rated Life (Hours)	300
Shape	T6
Voltage (V)	120V
Wattage (W)	1000W

Manual:

Osram 54570 Data Sheet
OSRAM 54570 FEL
