G9.5 2-Pin HPL socket lamp holder - 69818 TP-22H Replacement
SKU: G9.5-HPL-SOCKET
$2499 $38.99
USD
Description
G9.5 2-Pin HPL socket lamp holder - TP-22H Replacement

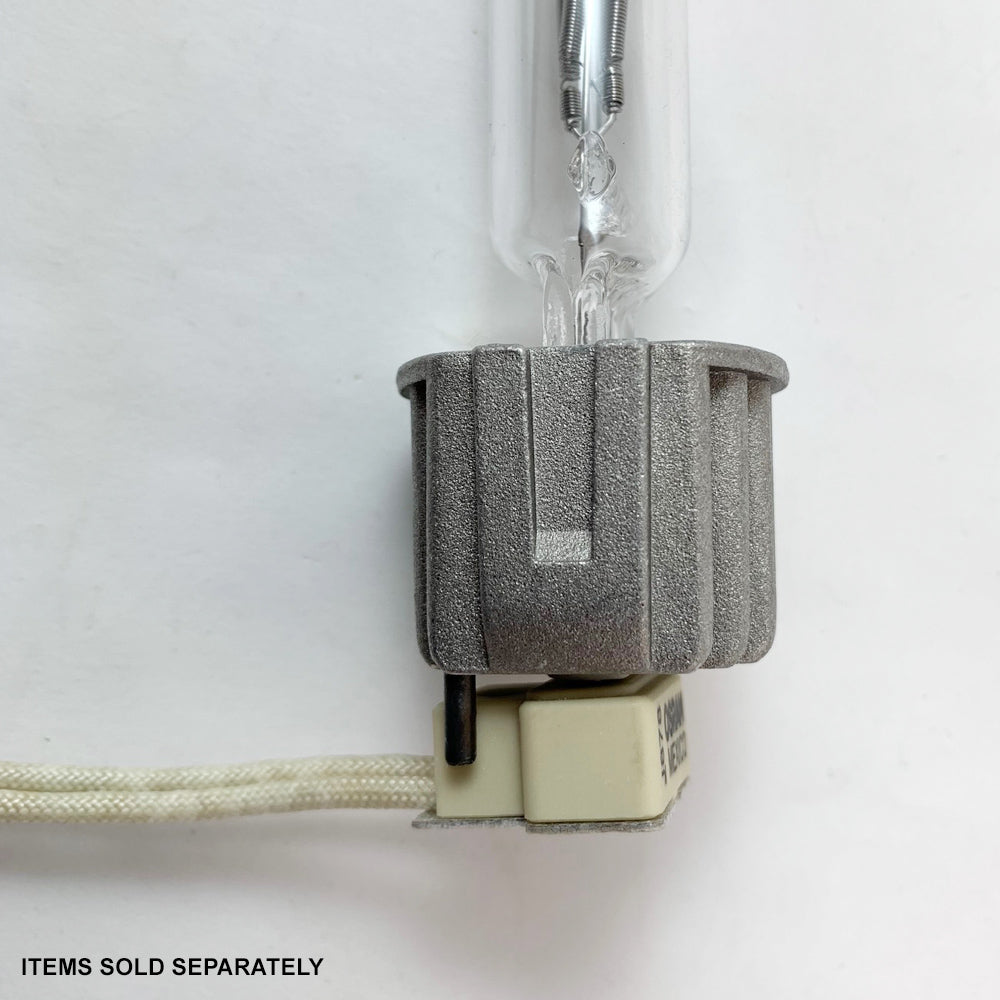

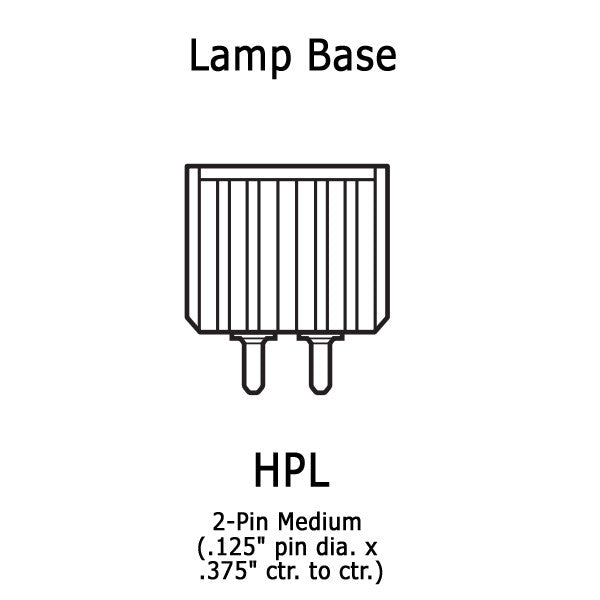

This lamp holder is design to be used with G9.5 2-Pin Base with heat sink - like HPL bulbs

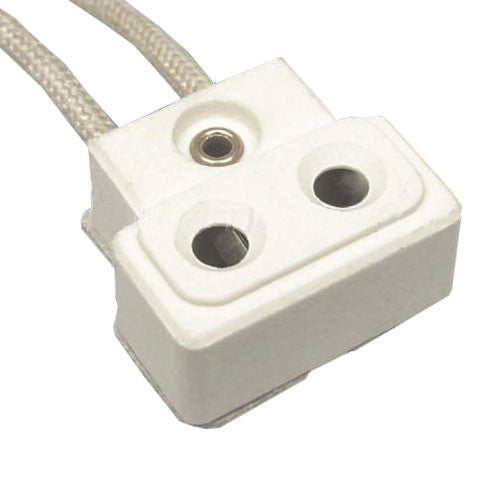

The ceramic socket has nickel plated contacts with high-temperature stainless steel backer springs.
The socket comes with two 16 gauge wires with PTFE high-temperature wire jackets. This socket is designed for maximum 250v and 1000W.
Cross Reference:
- Osram 69818 TP22H 44IN/16GA/UL5359
The socket comes with two 16 gauge wires with PTFE high-temperature wire jackets. This socket is designed for maximum 250v and 1000W.
Cross Reference:
- Osram 69818 TP22H 44IN/16GA/UL5359
Specs
Specs
| Lamp Holder | |
| Natural | |
| Nickel (with high temperature back-up spring) | |
| 572 | |
| TP-22H | |
| 250 | |
| AWG16 UL 69837 | |
| 44.00 |
