G9.5 Ceramic Steatite Socket Aluminum Housing 16AWG 36in Lead

BulbAmerica SKU: G9.5-SOCKET
$1699 $26.99 USD
255 in stock




Description

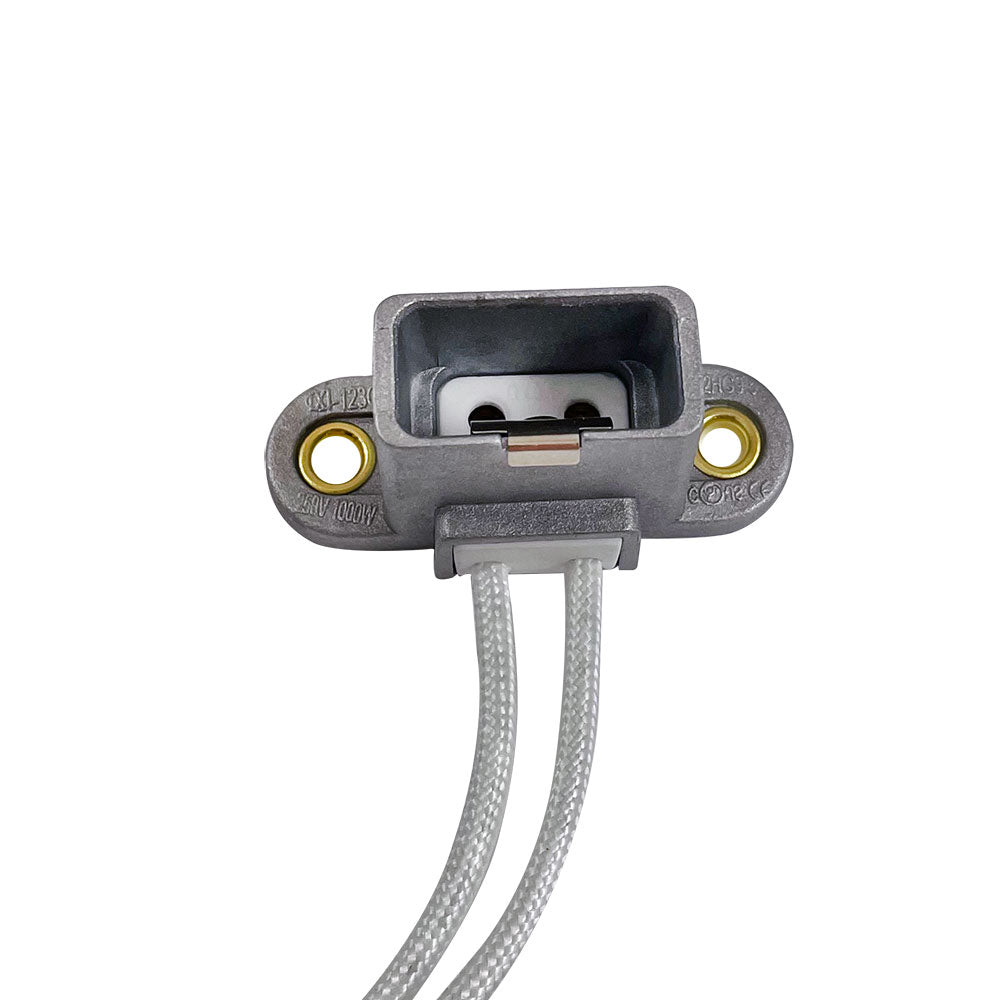

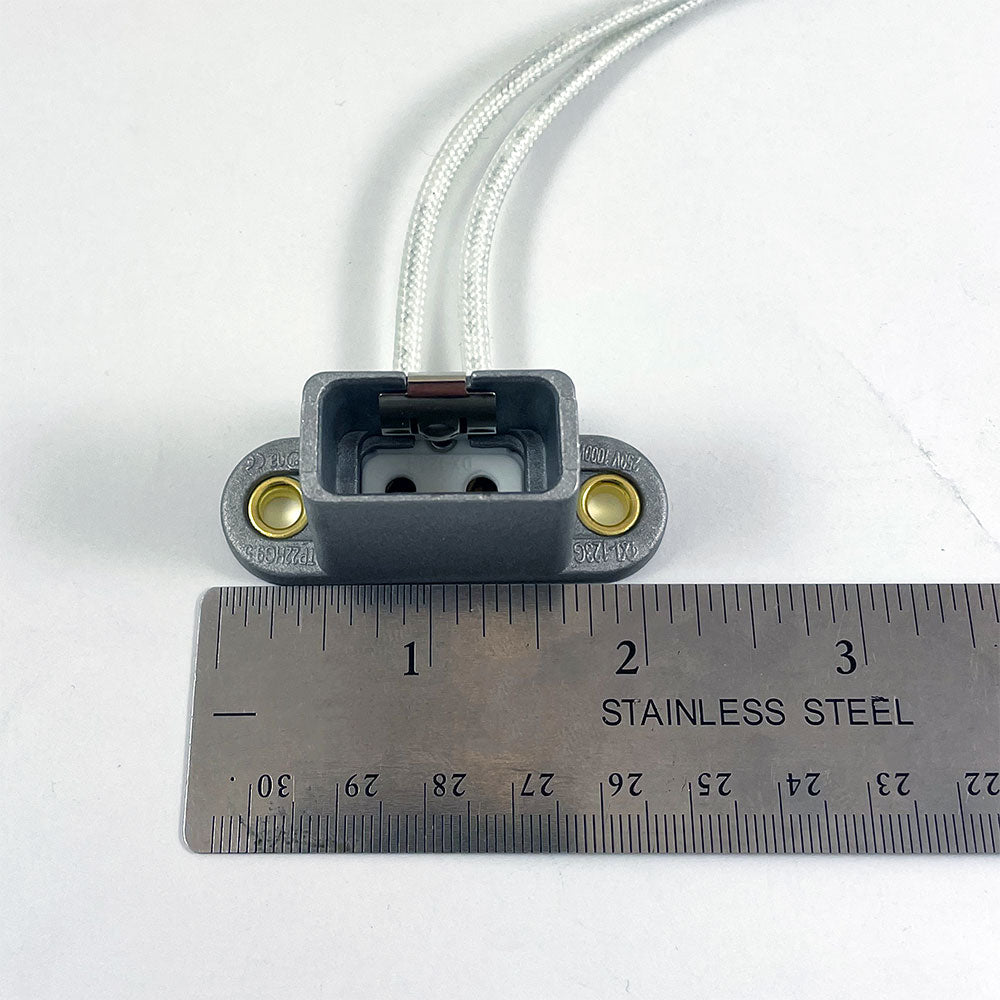

BulbAmerica G9.5 Ceramic Steatite Socket w/ Cast Aluminum Housing 16AWG 36in Lead
BulbAmerica sockets are of the highest quality in order to provide a safe and reliable connection that maximizes the life and performance of the lamp and socket system.
Product features and benefits
- Ceramic housings designed specifically for high-temperature halogen and metal halide applications
- High-quality contact materials for optimal mechanical and electrical properties
- Body Material: Ceramic Steatite Body / Die Cast Aluminum Housing
- Wire: 36 Inch, 16 AWG, ULSF2 Wire insulation, White color
- Maximum Wattage: 1000W, Maximum Voltage: 250V

Areas of application
- Halogen Fixtures
- Metal Halide Fixtures
- Halogen Instrumentation
- Halogen Equipment

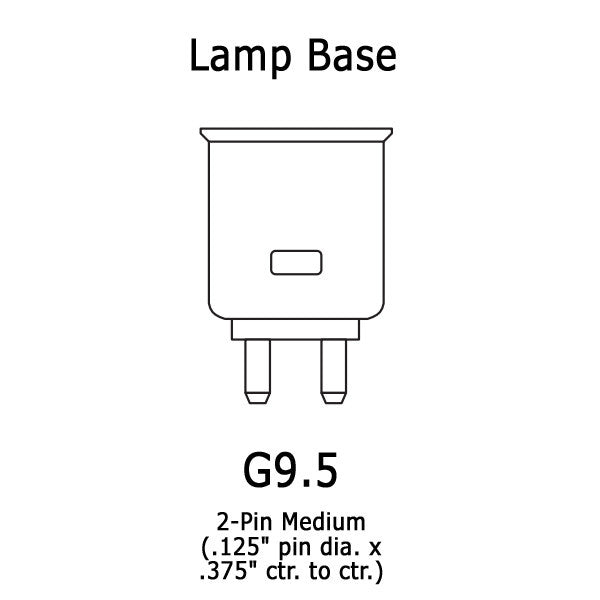

This lamp holder is for bulbs with G9.5 base, like:
- EHC/EHB, GLC 575/115/300, EHD, GLD 750/115/300, EHF, GLE 750/115/1500, EHG, 1000/240V/G9.5, FEL, 1000Q/T6/RTP/C, FEP/240- 1000Q/T6/RTPFS, FLK, - FLK PLUS HPR 575/115, FLK/X 115V, - GLA 575/115/2000, - FRN 2000T7Q

Specs

Manufacturer BulbAmerica
Part Number G9.5-SOCKET
UPC 675650419429
Application Socket
Base G9.5 2-Pin
Contact Material Silver Plated Nickel

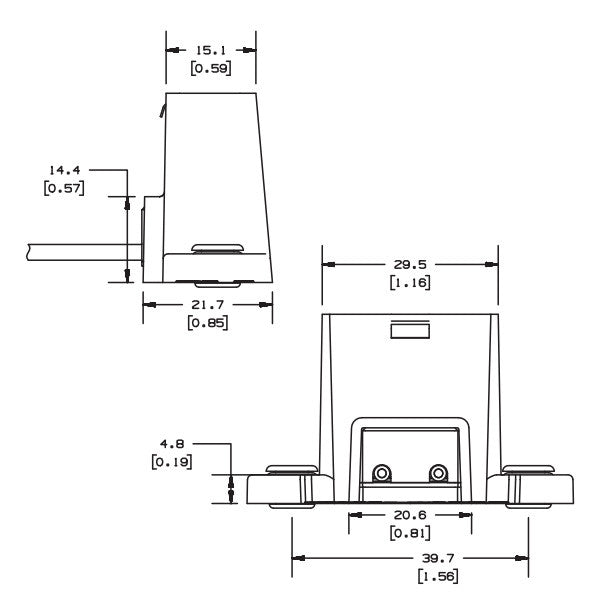

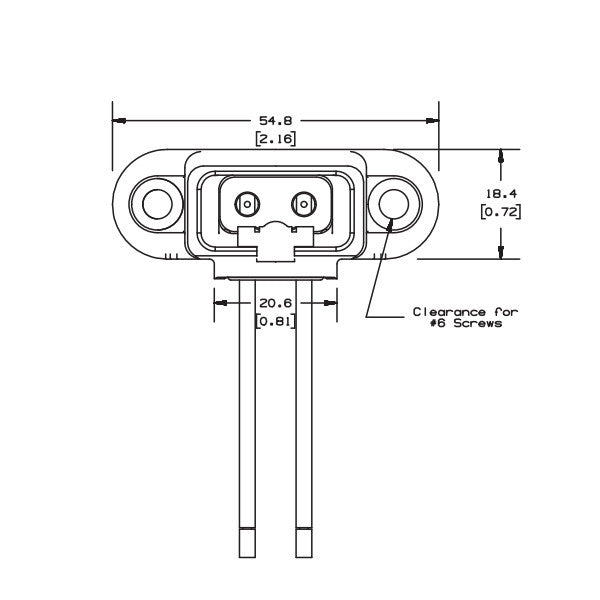

Length 2.16 in
Width 0.85 in
Height 1.25 in
Maximum Voltage 250V
Maximum Wattage 1000W
Wire Guage/Type AWG16 SF2
Length (in) 36.00
