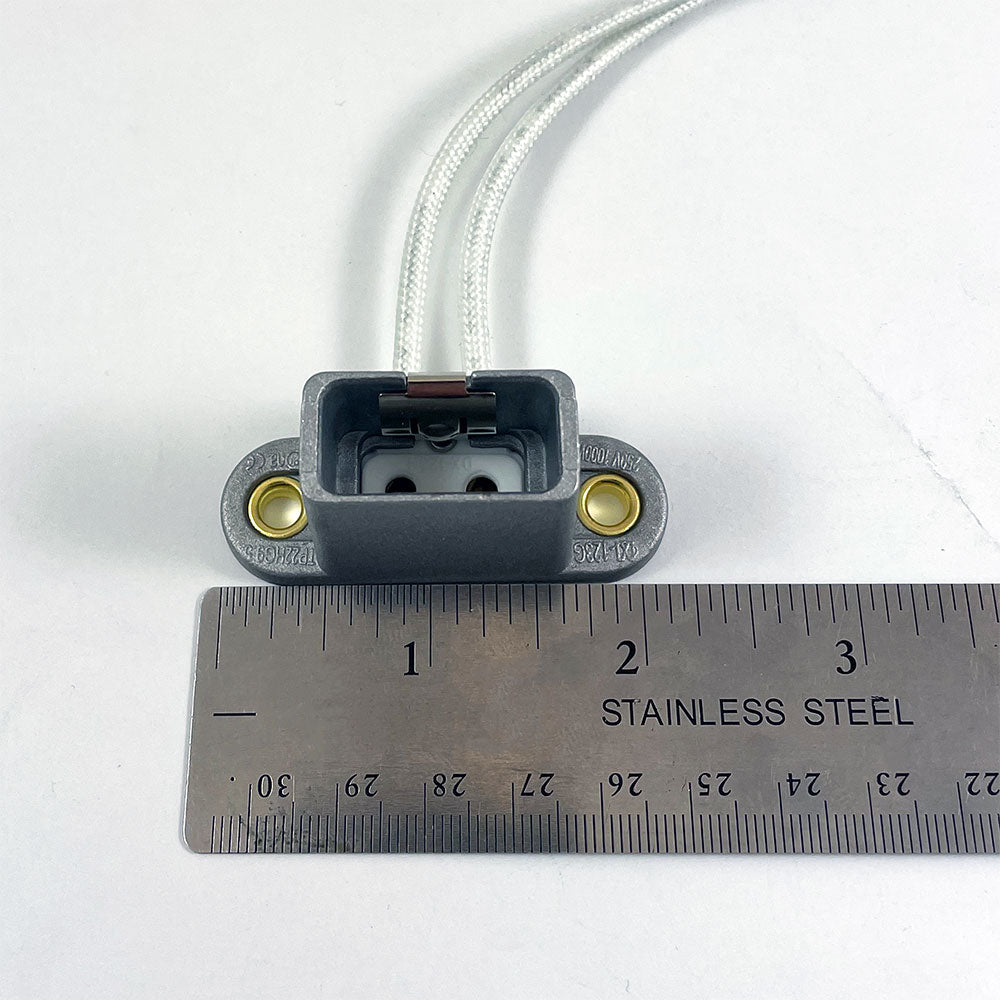

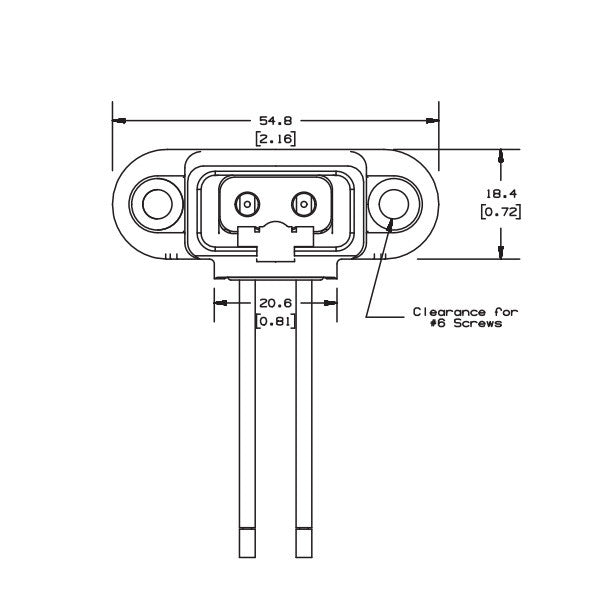

G9.5 lamp holder - Ceramic Steatite Socket - 69006 TP-22XL Replacement

Bulbamerica SKU: G9.5-XL-SOCKET
$1238 $23.99 USD
426 in stock



1

Description

The Bulbamerica 1000w G9.5 T5 UV-C Germicidal lamps provide highly effective UV-C irradiance at 254nm, which provides the needed effect for purification, without the use of toxic chemicals. These lamps are ideal for both air and water purification systems.

Bulbamerica 1000w UV-C Germicidal lamps are reliable and efficient sources with long service life in excess of 8,000 hours. In addition, the special outer glass tube absorbs the lower wavelengths, suppressing the formation of ozone and ensuring environmentally friendly sterilization.

Cross Reference:
- Osram 69006 TP22XL 36IN/16GA/ULSF2

Product features and benefits
- Ceramic housings designed specifically for high temperature halogen and metal halide Applications
- High quality contact materials for optimal mechanical and electrical properties
- UL recognized and CE certified
- Body Material: Ceramic Steatite Body / Die Cast Aluminum Housing
- Wire: 36 inch, 16 AWG
- Maximum Wattage: 1000W, Maximum Voltage: 250V

Areas of application:
- Halogen Fixtures
- Metal Halide Fixtures
- Halogen Instrumentation
- Halogen Equipment

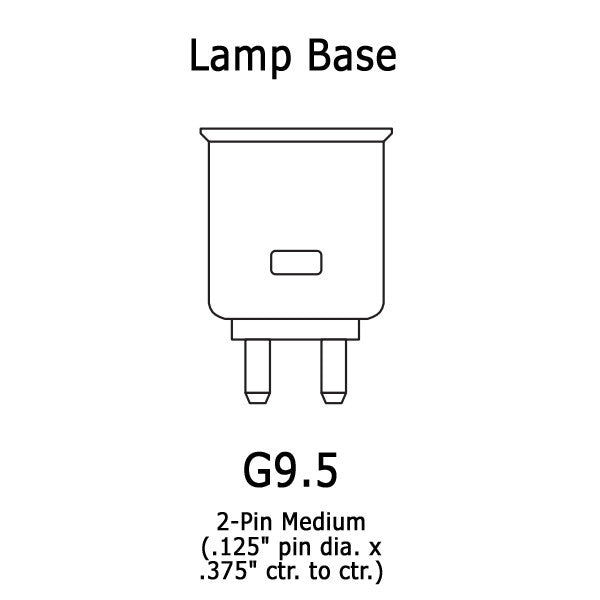

This lamp holder is for bulbs with G9.5 base, like:
- EHC/EHB, GLC 575/115/300, EHD, GLD 750/115/300, EHF, GLE 750/115/1500, EHG, 1000/240V/G9.5, FEL, 1000Q/T6/RTP/C, FEP/240
- 1000Q/T6/RTPFS, FLK,
- FLK PLUS HPR 575/115, FLK/X 115V,
- GLA 575/115/2000,
- FRN 2000T7Q
- Strip Length (in): 0.38
- Qualifications: UL Recognized-E31557, CSA Certified
- LR20904
- Wire Leads: Any UL recognized and CSA certified wire: AWG 18,16 or 14, 600 V min, 392F

Specs

Application Socket
Base G9.5 2-Pin
Color White
Contact Material Silver Plated Brass
Operation Temperature (F) 392
Type TP-22
Voltage (V) 250
Wire Guage/Type AWG16 SF2
Length (in) 36.00
