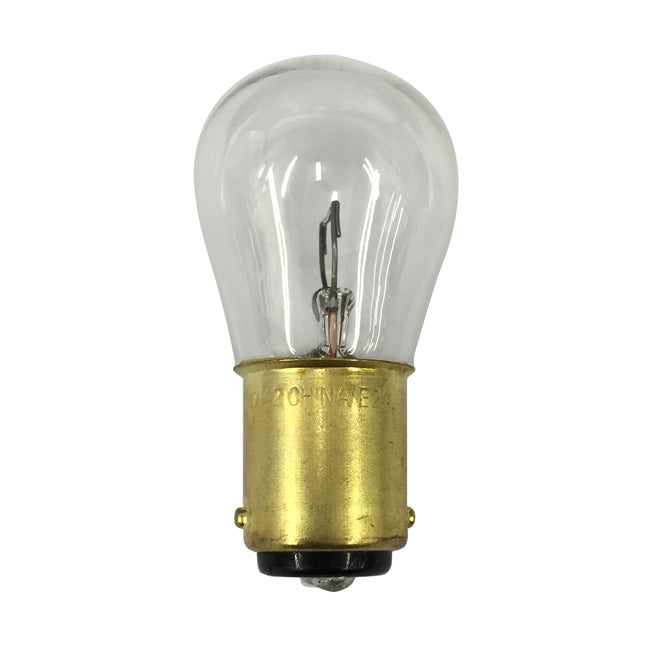

GE 1692 - 17w S8 28v Aircraft Low Voltage Light Bulb

GE 1692 - 27571 17 watt 28 volts S8 Bulb Type Double Contact Bayonet (BA15d) Aircraft Low Voltage Light Bulb

Features:

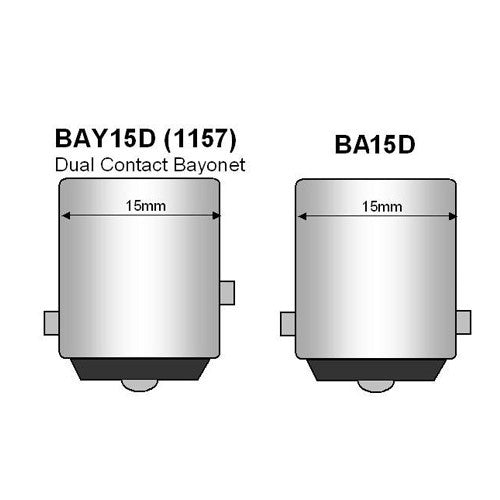

- Base Type: Pin/Plug-In, Base Description: BA15d (Double Contact Bayonet)
- Filament: 2C-2R, Lumen per Watt: 11
- Rated Life: 1000 hrs, Atmosphere: Gas-filled
- Primary Application: Aircraft Low Voltage, Bulb Shape: S8
- Voltage: 28, Wattage: 17

Part Numbers:
- Eiko 40326
- GE 27571
- GE-1692
- Philips 281980
- 28198-0
- JKL1692
- 1692L
- NSN 6240-00-155-8726

GENERAL CHARACTERISTICS
Base Type	Pin/Plug-In
Base Description	BA15d (Double Contact Bayonet)
Filament	2C-2R
Rated Life	1000 hrs
Atmosphere	Gas-filled
Primary Application	Aircraft Low Voltage
Base	BA15d
Bulb Shape	S8
ELECTRICAL CHARACTERISTICS
Voltage	11
Lumen per Watt	28
Wattage	17
PHOTOMETRIC CHARACTERISTICS
Mean Spherical Candlepower	15 cd
DIMENSIONS
Diameter	1 in
Light Center Length (LCL)	1.12 in
MOL	2 in
PACKAGING INFORMATION
Package Quantity	10
UPC	043168275712
Length	0.01 in
Width	0.01 in
Height	0.01 in
Gross Weight	1.6 Ib

Manual:

GE 27571 Data Sheet
