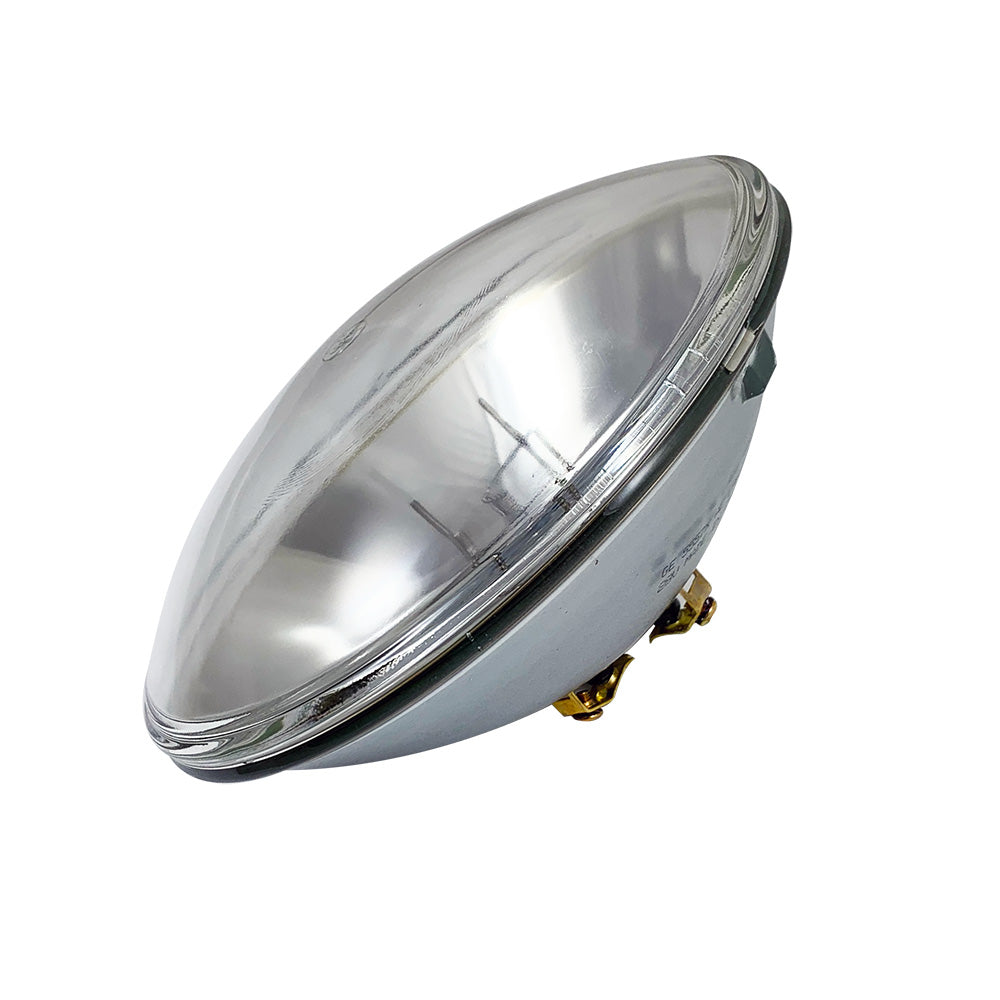

GE 5557X - 1000w/400W 28v PAR64 Air Landing Taxi Spot Sealed Beam Lamp

$2999 $59.99
USD
Description
GE 5557X - 1000w/400W 28v PAR64 Air Landing Taxi Spot Sealed Beam Lamp
Features:
- Primary Application: Aircraft Very Narrow Spot - Aircraft Landing, Taxi, Aviation
- Base Type: Pin/Plug-In, Base Description: G53 (Screw Terminals)
- Filament: CC-8, Lamp Count: 1
- Rated Life: 100 hrs, - Product Technology: Incandescent, Bulb Shape: PAR64
- Voltage: 28V
- Wattage: 1000W / 400W
Cross Reference:
- GE 89358
- GE 5557X
- AC Land/Taxi
- 28V/28V/28Vbr> - 540M/100M CP
- Wamco WL-5557X
GE 89358 has introduced an improved GE5557X, which lasts 50 to 100 hours - nearly twice as long. This lamp offers a new, improved rounded lens, for extended service life.

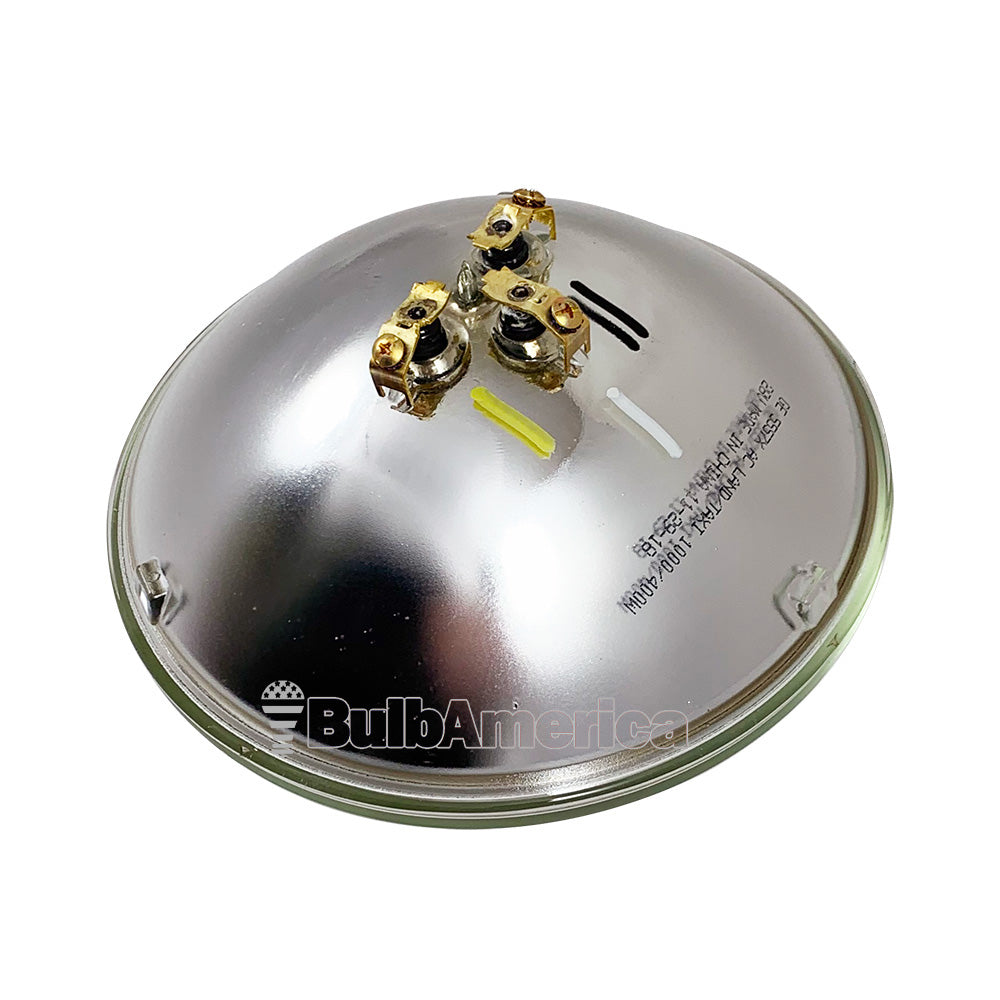

Compared to other aviation bulbs, the GE 5557X provides high-intensity illumination with a spot beam spread of 11deg horizontal and 15deg vertical at 1000W, and 25deg horizontal and 11deg vertical at 400W. It has three screw terminals for secure installation and is commonly used in commercial and military aircraftFeatures:
- Primary Application: Aircraft Very Narrow Spot - Aircraft Landing, Taxi, Aviation
- Base Type: Pin/Plug-In, Base Description: G53 (Screw Terminals)
- Filament: CC-8, Lamp Count: 1
- Rated Life: 100 hrs, - Product Technology: Incandescent, Bulb Shape: PAR64
- Voltage: 28V
- Wattage: 1000W / 400W
Cross Reference:
- GE 89358
- GE 5557X
- AC Land/Taxi
- 28V/28V/28Vbr> - 540M/100M CP
- Wamco WL-5557X
Specs
GENERAL CHARACTERISTICS | |
Base Type | Pin/Plug-In |
Base Description | G53 (Screw Terminals) |
Filament | CC-8 |
Lamp Count | 1 |
Rated Life | 100 hrs |
Primary Application | Aircraft Very Narrow Spot |
Product Technology | Incandescent |
Bulb Shape | PAR64 |
ELECTRICAL CHARACTERISTICS | |
Voltage | 28 |
Wattage | 1000 |
PHOTOMETRIC CHARACTERISTICS | |
Beam Candlepower (MBCP) | 500000 |
DIMENSIONS | |
Diameter | 8 in |
MOL | 3.75 in |
PACKAGING INFORMATION | |
UPC | 043168893589 |
