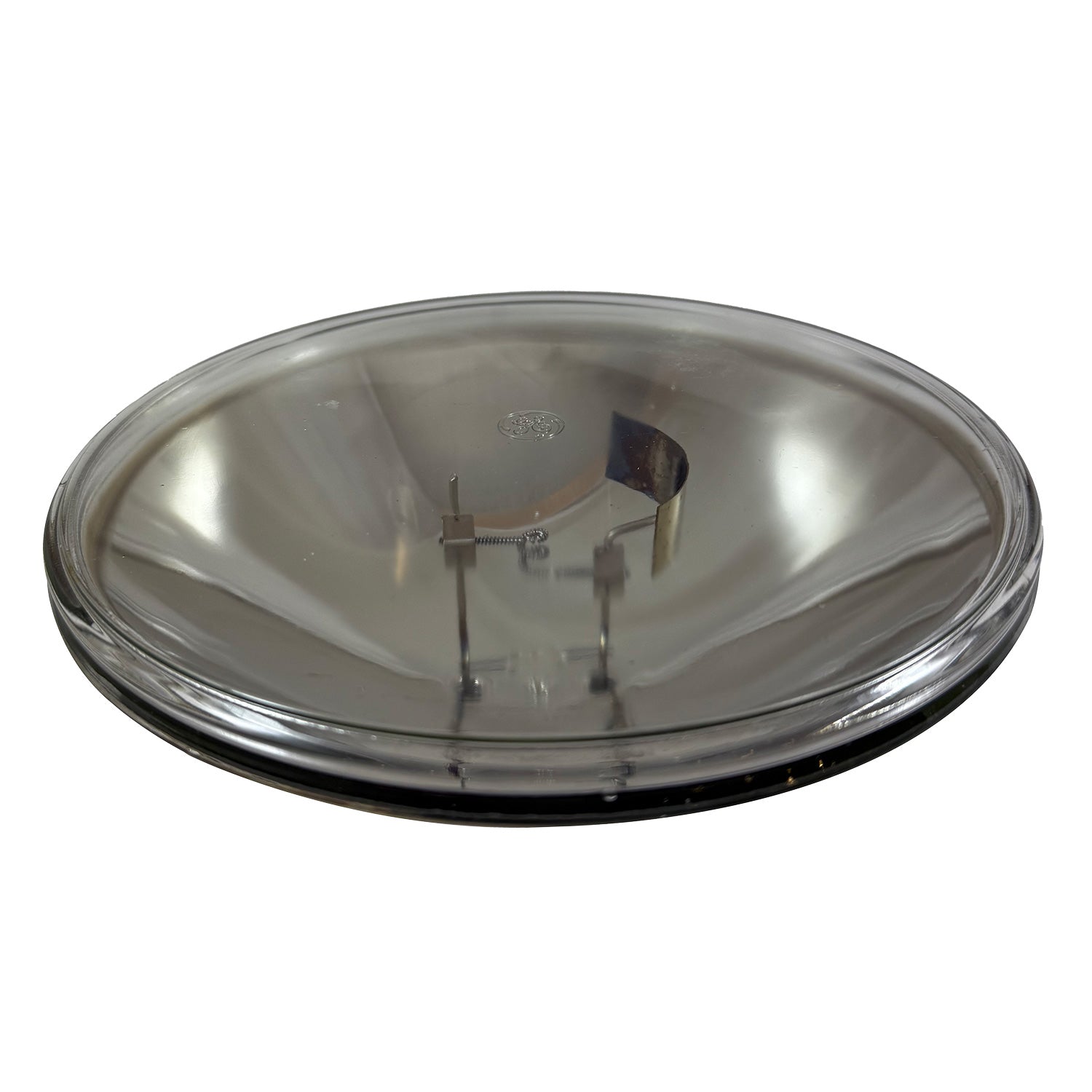

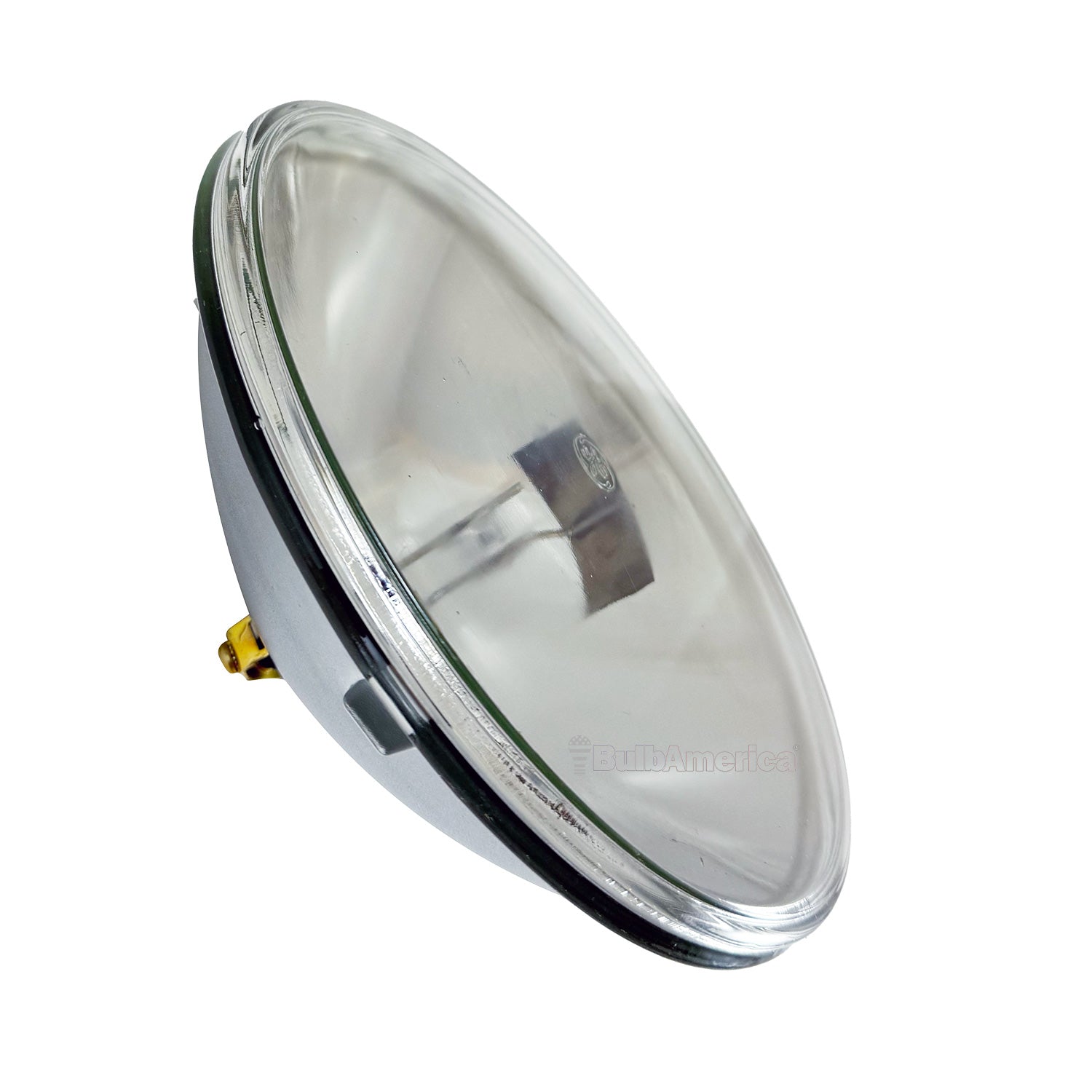

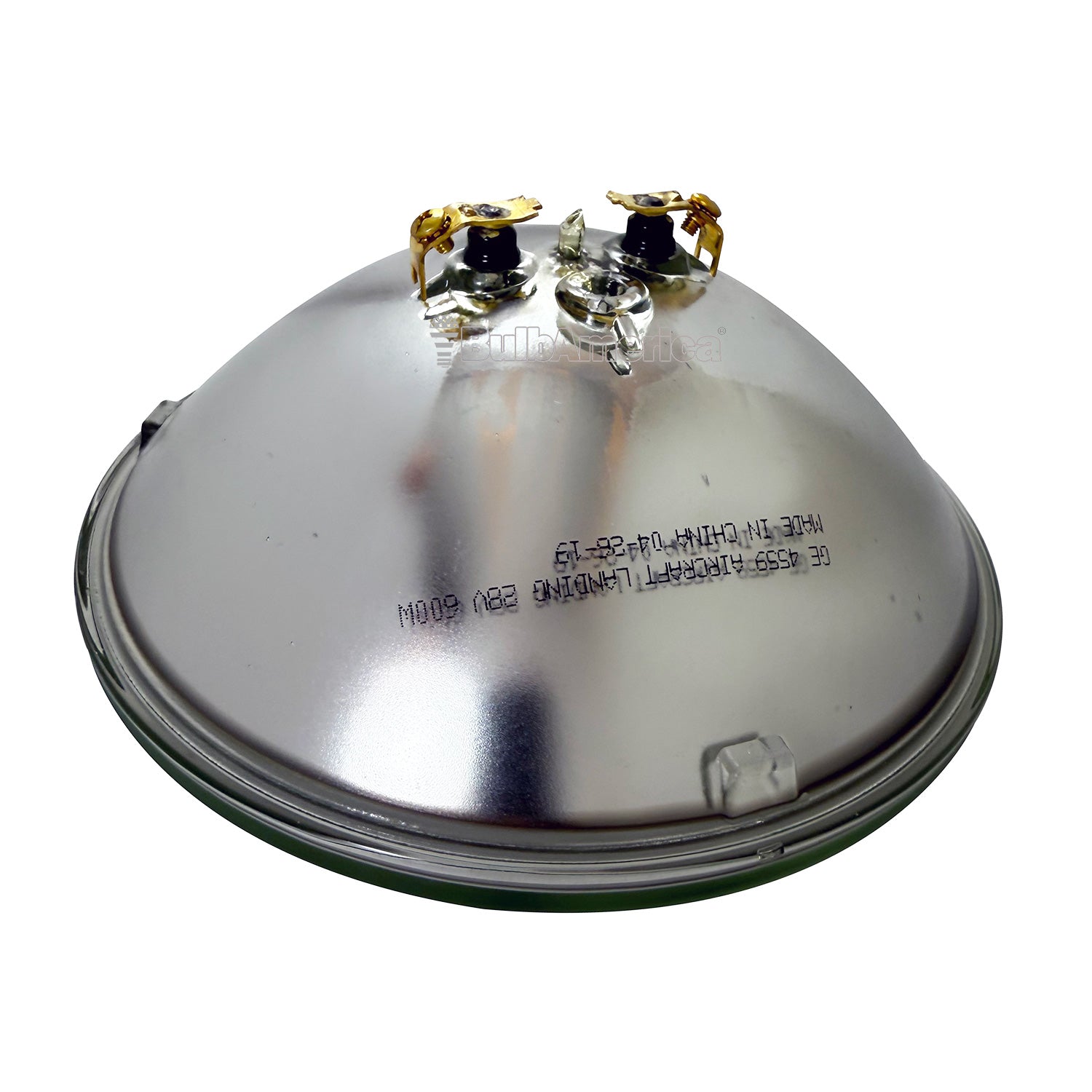

GE 40578 4559 - 600W 28V PAR64 G53 Very Narrow Spot Aircraft Landing Bulb

GE 40578 4559 600Watts 28Volts 4559 PAR64 Screw TerminalsG53 Incandescent light bulb aircraft very narrow spot 25 hours of life

Features:
- Base Type: Pin/Plug-In, Base Description: G53 (Screw Terminals)
- Filament: CC-8, Lamp Count: 1
- Rated Life: 25 hrs, Primary Application: Aircraft Very Narrow Spot
- Product Technology: Incandescent, Bulb Shape: PAR64
- Voltage: 28, Wattage: 600

Part Numbers:
- Osram 14936 046135149368
- GE 40579 Q4559
- GE 40578 4559
- 600PAR64/NSP-28V

Cross Reference:
- Hi-G Hi Intensity VRI-VIC-200770
- VRI-VIC-200740
- VRI-VIC-200783
- Model 4528
- 4528B
- 6428
- S10301
- MS25242-Q4559, MS25242

GENERAL CHARACTERISTICS
Base Type	Pin/Plug-In

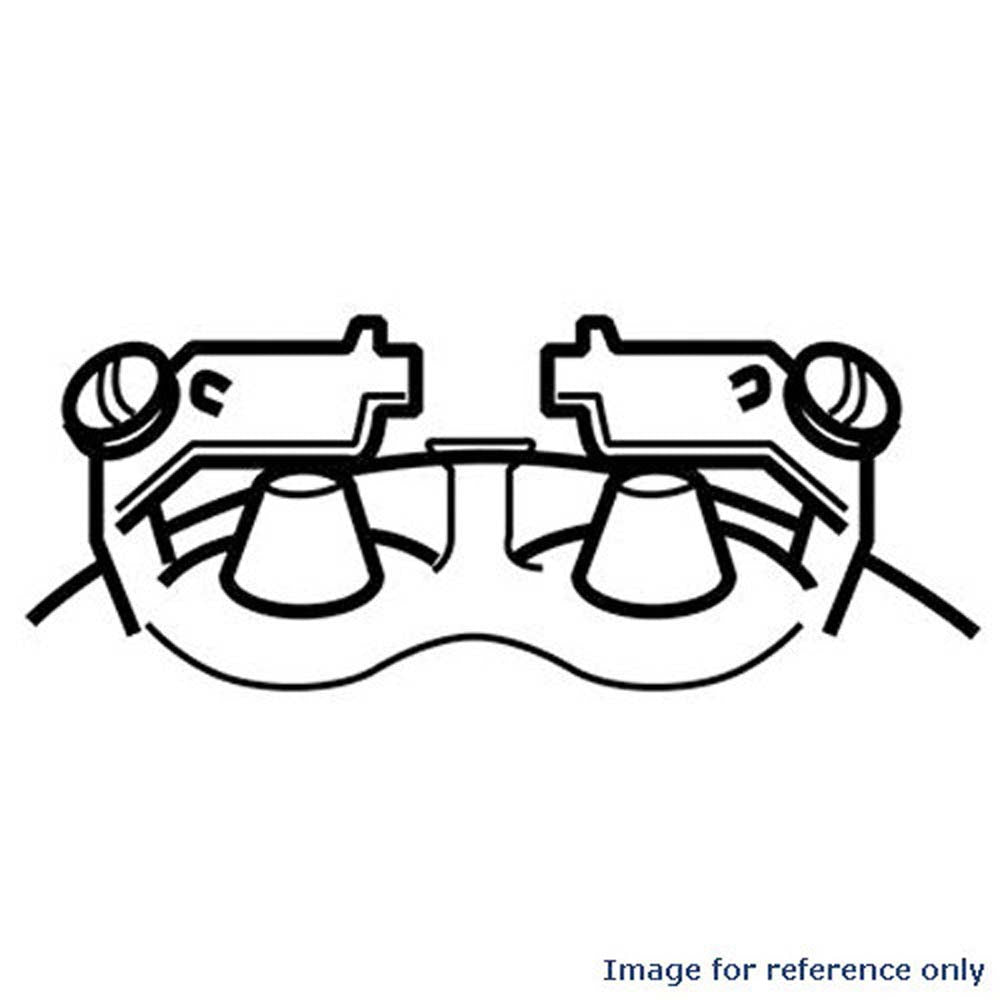

Base Description	G53 (Screw Terminals)

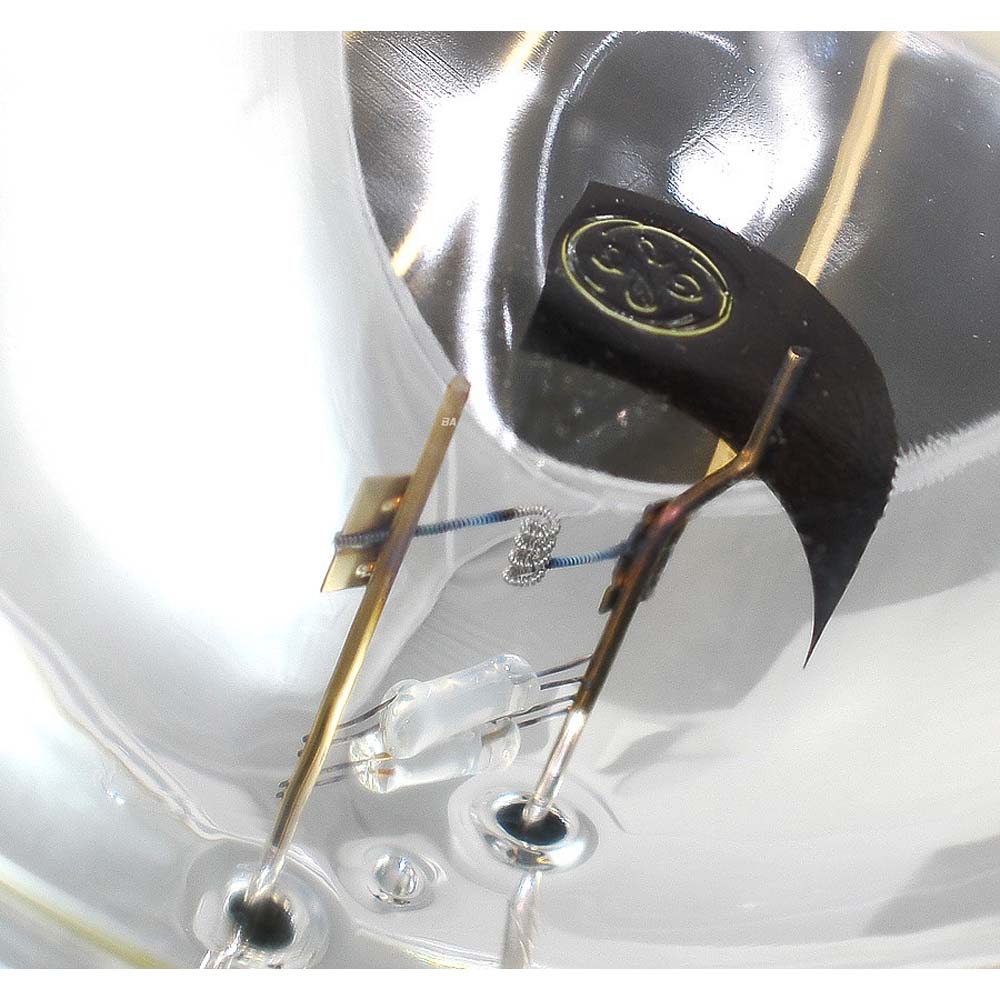

Filament	CC-8
Lamp Count	1
Rated Life	25 hrs
Primary Application	Aircraft Very Narrow Spot
Product Technology	Incandescent
Bulb Shape	PAR64
ELECTRICAL CHARACTERISTICS
Voltage	28
Wattage	600
PHOTOMETRIC CHARACTERISTICS
Beam Candlepower (MBCP)	600000
DIMENSIONS

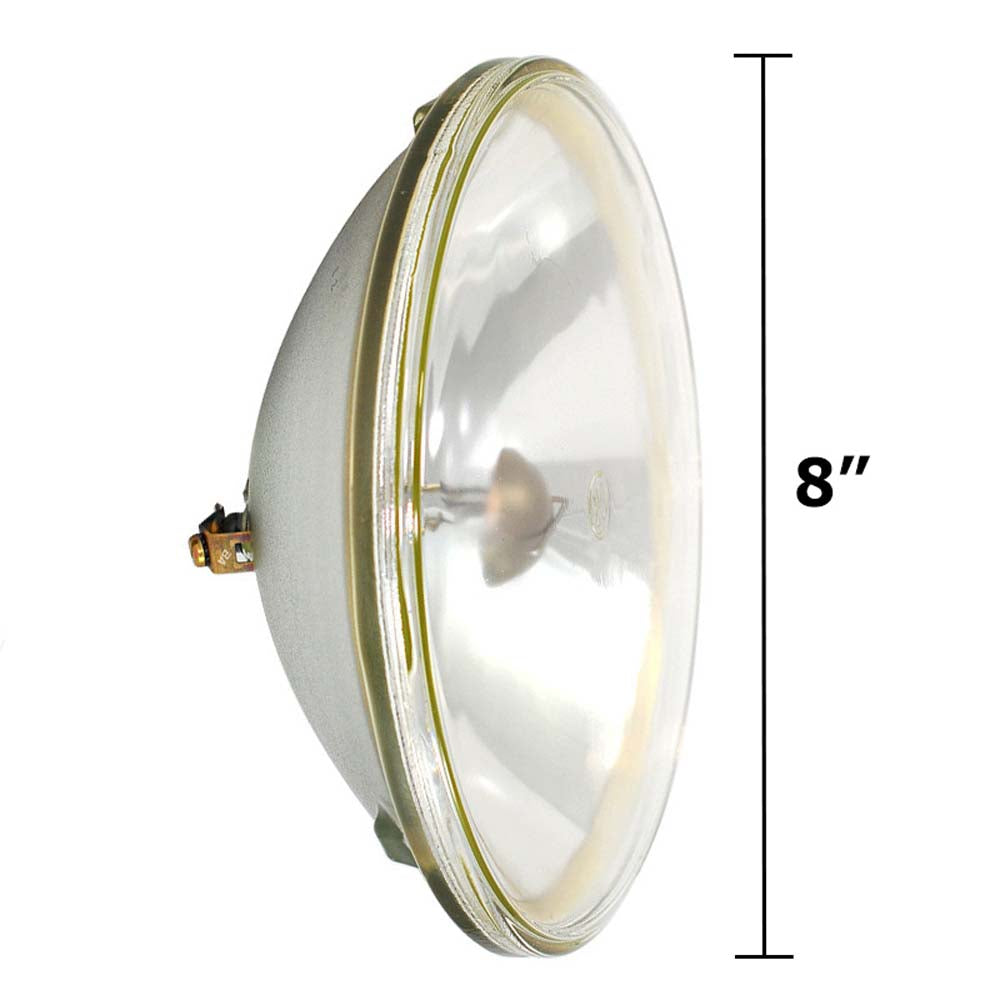

Diameter	8 in
MOL	3.75 in
PACKAGING INFORMATION
Package Quantity	12
UPC	043168405782
Length	21.25 in
Width	14.17 in
Height	16.54 in
Gross Weight	25.95 Ib

Manual:

GE 40578 Data Sheet 01
GE 40578 Data Sheet 02
