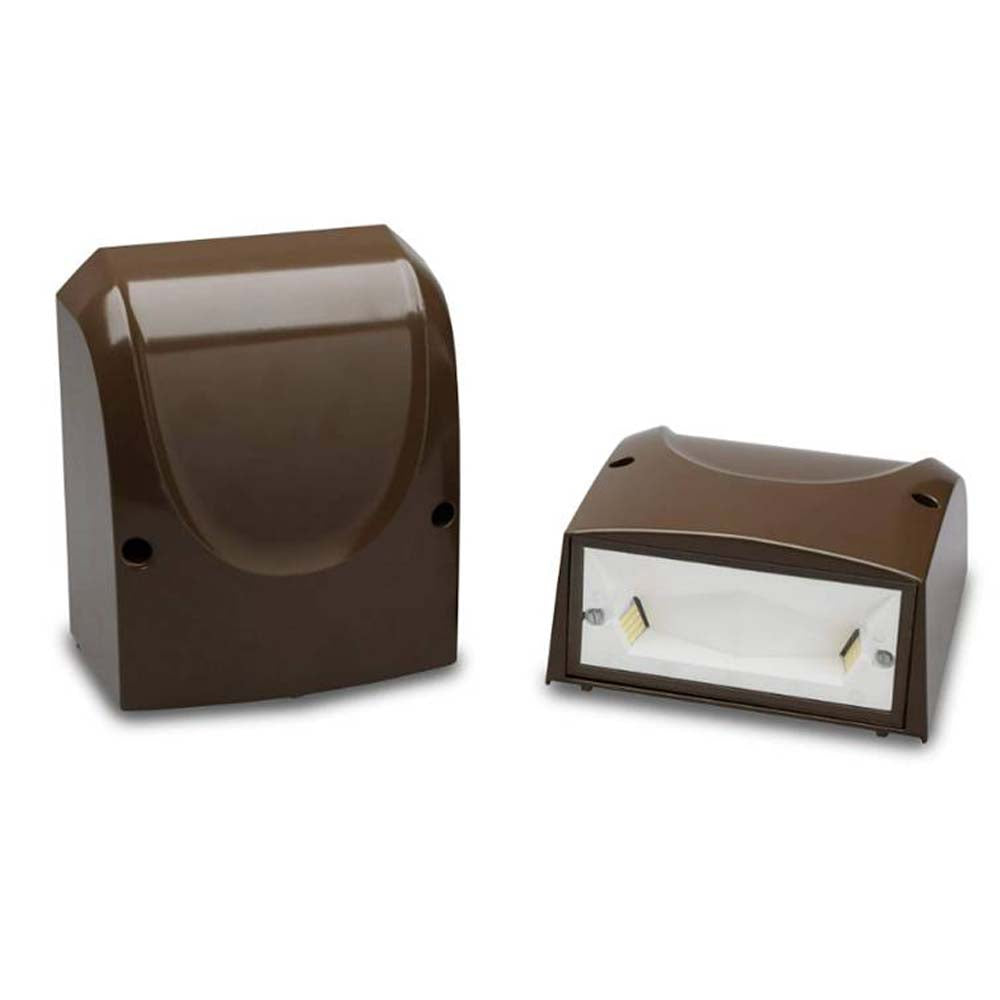

GE EVOLVE 36W LED Wall Pack 4000K 4000Lm Flush Mount

GE Evolve LED L-Series Wall Pack, EWLS, is a designed replacement for 50W to 250W HID, while offering significant energy savings in a long-life LED wall pack. The EWLS's 2-screw housing design enables a fast and simplified installation. The low-watt Egress package (13W) is designed to meet recommended illuminance requirements for egress applications such as side and rear exit doors in commercial buildings and can meet NFPA 101 life safety lighting requirements when used with external battery backup.

Features:
- TDesigned to replace 50W to 250W MH wall packs
- Impact Resistant Tempered Glass Lens
- Two lumen packages 1500 and 4000 lumens
- 4000k CCT High brightness LEDs
- 20+ years of expected lumen maintenance
- Zero up-light construction, full cut-off
- Fully sealed from outdoor environmental elements
- Impact-resistant tempered glass lens
- Small form-factor, <10lbs for easy handling
- 120-277 and 347 voltage versions
- Optional features: Motion sensor, Button PE and 0-10v dimming available
- Available in flush-mount or conduct box with knock-out entry points on sides and top easy installation
- Fast 3-5day delivery from GE's Quickship stocking program

Benefits:
- Increased Sense of Security
- Replaces 50W to 250W Metal Halide Wall Packs offering significant energy savings & rapid payback
- Fast & Simple Installation
- GE Six-Sigma Quality & Reliability

Applications:
- Building entrance & perimeter lighting
- Side and rear exit doors
- Stairways and entry path
- Schools, Apartment buildings, Hospitals, Retail & Commercial Buildings
- Leading docks

Manufacturer	GE Lighting
Lamp Type	LED Wall Pack
Finish	Dark Bronze
Wattage	36
Voltage	120-277
Watts Equivalent	50-250W
Color Temperature/CCT (K)	4000k
Color	Cool White
Lumens	4000
Housing	Aluminum
Height (in.)	8.27
Length (in.)	7.37
Width (in.)	3.85
Weight	1.69
UPC	662053287366
Abbreviation	EWLS01040AF740N1FMDKBZ
Safety Ratings	UL/cUL Listed
Surge Protection	Integral surge protection
Warranty	5 Years Limited

Manual:

93059497 Data Sheet
