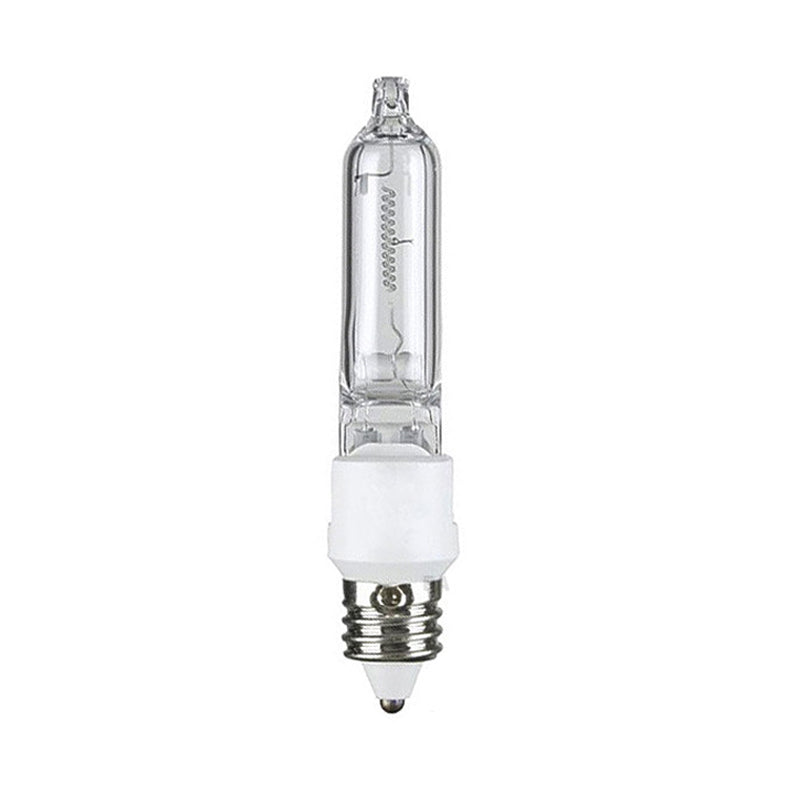

GE EVR 500w 120v Halogen Stage and Studio Light Bulb
SKU: 47950
$5099 $66.99
USD
Sorry, this product is temporarily out of stock, please check Related Products below, or use the email for stock updates
Description
GE EVR 500W 120V Tungsten Halogen Single-End Clear Finish Mini Can Quartzline bulb.
The GE EVR bulb uses 500 watts and operates at 120 volts.
EVR bulb has a E11 Mini Candelabra base.
The rated life for EVR bulb is 2000 hours.
The EVR lamp is used as replacement bulb in Microfilm Projector, Stage and Video applications.
CROSS REFERENCES
- Colortran 176-179
- GE 47950 EVR-Q500CL/MC
- Grainger 2V266
- Osram Sylvania 58766 500Q/CL/MC (EVR)
- Philips 38079-0 500Q/CL EVR 120V
- Ushio 1000384 EVR, JCV120V-500WGS
The GE EVR bulb uses 500 watts and operates at 120 volts.
EVR bulb has a E11 Mini Candelabra base.
The rated life for EVR bulb is 2000 hours.
The EVR lamp is used as replacement bulb in Microfilm Projector, Stage and Video applications.
CROSS REFERENCES
- Colortran 176-179
- GE 47950 EVR-Q500CL/MC
- Grainger 2V266
- Osram Sylvania 58766 500Q/CL/MC (EVR)
- Philips 38079-0 500Q/CL EVR 120V
- Ushio 1000384 EVR, JCV120V-500WGS
Specs
| GENERAL CHARACTERISTICS | |
| Lamp type | Halogen - Single-Ended |
| Bulb | T4 |
| Base | Miniature Candelabra Screw (E11) |
| Primary Application | Stage & Studio |
| Filament | CC-8 |
| Bulb Finish | Clear |
| Rated Life (NOM) | 2000 hrs |
| PHOTOMETRIC CHARACTERISTICS | |
| Initial Lumens (NOM) | 10450 |
| Color Temperature (NOM) | 2950 K |
| Nominal Initial Lumens per Watt (NOM) | 21 |
| ELECTRICAL CHARACTERISTICS | |
| Wattage (NOM) | 500.0 |
| Voltage (NOM) | 120.0 |
| Burn Position | Universal burning position |
| DIMENSIONS | |
| Maximum Overall Length (MOL) (NOM) | 3.6200 in (91.9 mm) |
| Bulb Diameter (DIA) (NOM) | 0.5000 in (12.7 mm) |
| Light Center Length (LCL) (NOM) | 2.0000 in (50.8 mm) |
| PRODUCT INFORMATION | |
| Product Code | 47950 |
| Description | EVR-Q500CL/MC |
| ANSI Code | EVR |
| Standard Package GTIN | 10043168479506 |
| Sales Unit | Unit |
| No Of Items Per Sales Unit | 1 |
| UPC | 043168479509 |
