GE 10099 EVV 120w 6.6A GZ9.5 T4 Quartzline Airport and Airfield Halogen lamp
SKU: 10099
$3199 $41.99
USD
Sorry, this product is temporarily out of stock, please check Related Products below, or use the email for stock updates
Description

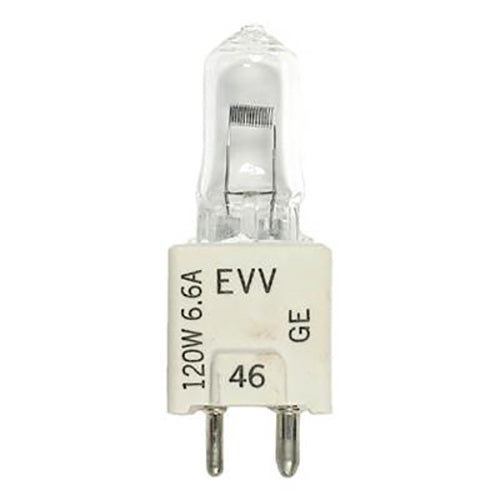

GE EVV 120W 6.6A GZ9.5 base Airport and Airfield Quartzline Halogen lamp
Features:
- Wattage: 120w
- Amp: 6.6A
- Base: GZ9.5 2-Pin
- Rated Life: 500Hrs
- Initial Lumens: 3150Lm
Application:
- Airport Lighting
- Airfield Lighting
Features:
- Wattage: 120w
- Amp: 6.6A
- Base: GZ9.5 2-Pin
- Rated Life: 500Hrs
- Initial Lumens: 3150Lm
Application:
- Airport Lighting
- Airfield Lighting
Specs
| GENERAL CHARACTERISTICS | |
| Lamp type | Halogen - Single-Ended |
| Bulb | T4 |
| Base | Oriented Medium 2-Pin (GZ9.5) |
| Primary Application | Airport & Airfield |
| Filament | C-6 Oval |
| Rated Life (NOM) | 500 hrs |
| PHOTOMETRIC CHARACTERISTICS | |
| Initial Lumens (NOM) | 3150 |
| Color Temperature (NOM) | 3200 K |
| Source Size (W) x (H) | 0.25 x 0.12 in |
| Nominal Initial Lumens per Watt (NOM) | 26 |
| ELECTRICAL CHARACTERISTICS | |
| Wattage (NOM) | 120W |
| Amps (NOM) | 6.6A |
| Burn Position | Base down |

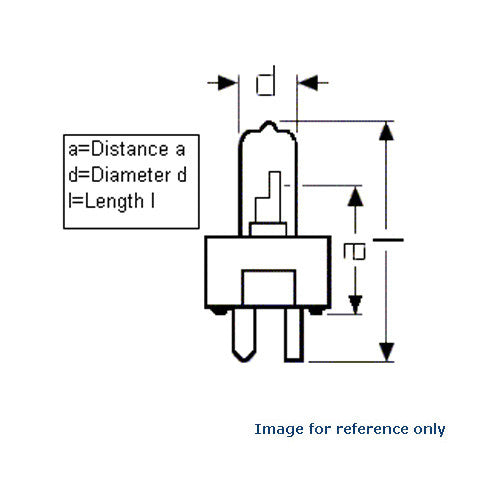

| DIMENSIONS | |
| Maximum Overall Length (MOL) (NOM) | 2.5000 in (63.5 mm) |
| Bulb Diameter (DIA) (NOM) | 0.5000 in (12.7 mm) |
| Light Center Length (LCL) (NOM) | 1.5400 in (39.1 mm) |
| PRODUCT INFORMATION | |
| Product Code | 10099 |
| Description | EVV |
| ANSI Code | EVV |
| Standard Package | Case |
| Standard Package GTIN | 10043168100998 |
| Sales Unit | Unit |
| No Of Items Per Sales Unit | 1 |
| UPC | 043168100991 |
