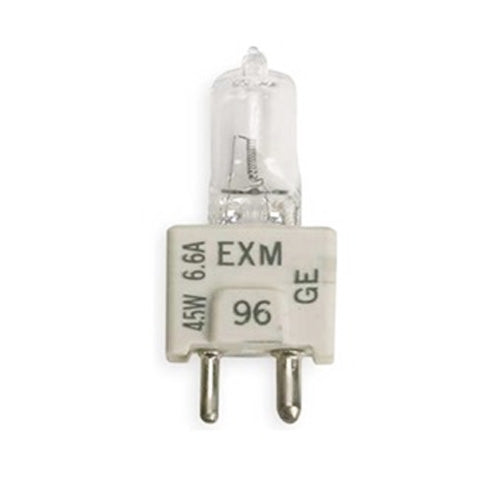

GE EXM 45W 6.6A GZ9.5 Airport and Airfield Halogen Quartzline lamp

GE SKU: 11482

GE

$2495 $39.99

65 in stock

Description

GE EXM 45W 6.6A GZ9.5 Airport and Airfield Halogen Quartzline lamp

Features:
- Wattage: 45w
- Amp: 6.6A
- Base: GZ9.5 2-Pin
- Rated Life: 1000Hrs
- Initial Lumens: 750Lm

Application:
- Airport Lighting
- Airfield Lighting

Specs

GENERAL CHARACTERISTICS
Lamp type Halogen - Single-Ended
Bulb T3.5

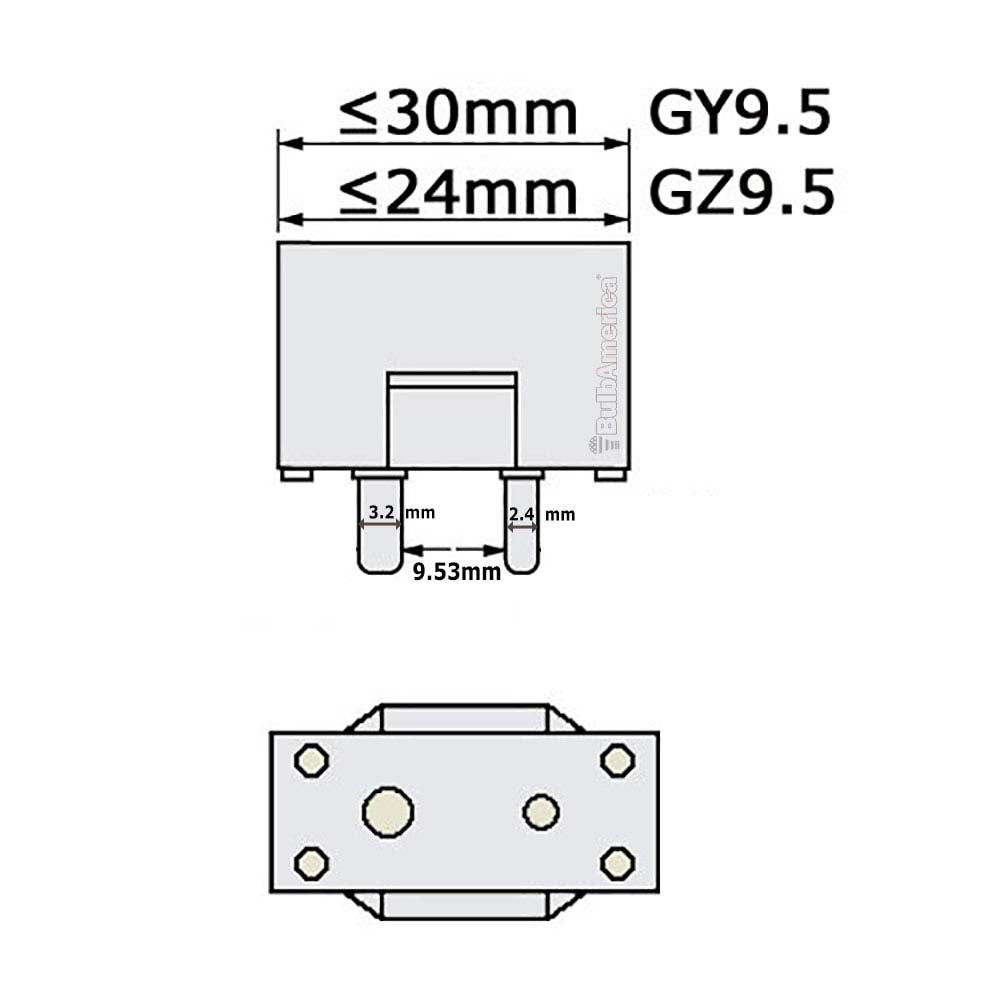

Base Oriented Medium 2-Pin (GZ9.5)
Primary Application Airport & Airfield
Filament C-8
Rated Life (NOM) 1000 hrs
PHOTOMETRIC CHARACTERISTICS
Initial Lumens (NOM) 750
Color Temperature (NOM) 2950 K
Source Size (W) x (H) 0.06 x 0.19 in
Nominal Initial Lumens per Watt (NOM) 17
ELECTRICAL CHARACTERISTICS
Wattage (NOM) 45.0
AMP (NOM) 6.6
Burn Position Horizontal 15 or Base Down
DIMENSIONS
Maximum Overall Length (MOL) (NOM) 1.7500 in (44.4 mm)
Bulb Diameter (DIA) (NOM) 0.4380 in (11.1 mm)
Light Center Length (LCL) (NOM) 1.0000 in (25.4 mm)
PRODUCT INFORMATION
Product Code 11482
ANSI Code EXM
Standard Package Case
Standard Package GTIN 10043168114827
Sales Unit Unit
No Of Items Per Sales Unit 1
UPC 043168114820
