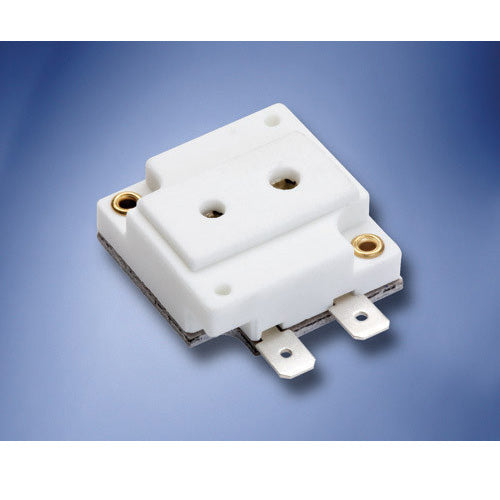

GZ9.5 Lamp Holder ceramic socket - 69725 TP27 Replacement
SKU: GZ9.5-SOCKET
$2399 $42.99
USD
Sorry, this product is temporarily out of stock, please check Related Products below, or use the email for stock updates
Description
GZ9.5 Lamp Holder ceramic socket - 69725 TP27 Replacement
Cross Reference:
- Osram 69725 TP27 NO LEADS
TP27 no leads Lamp Holder ceramic socket for light bulbs with GZ9.5 base like:
- 235T4Q/2PPF
- DYS 600, BHC, DYV
- EKB
- EXL
Features:
- Maximum Wattage: 1000W
- Maximum Voltage: 600V
- Maximum Operating Temperature: 250 C
- Qualifications UL Recognized E31557 CSA Certified LR20904
- Body Material: Steatite Contact Material Silver/Nickel Plated Brass
- Attachments: 0.187" x 0.020" push lock terminal
Cross Reference:
- Osram 69725 TP27 NO LEADS
TP27 no leads Lamp Holder ceramic socket for light bulbs with GZ9.5 base like:
- 235T4Q/2PPF
- DYS 600, BHC, DYV
- EKB
- EXL
Features:
- Maximum Wattage: 1000W
- Maximum Voltage: 600V
- Maximum Operating Temperature: 250 C
- Qualifications UL Recognized E31557 CSA Certified LR20904
- Body Material: Steatite Contact Material Silver/Nickel Plated Brass
- Attachments: 0.187" x 0.020" push lock terminal
Specs
| | GZ9.5 2-Pin Prefocus |
| | Silver / Nickel Plated Brass |
| | 482 |
| | 600 |
