Description

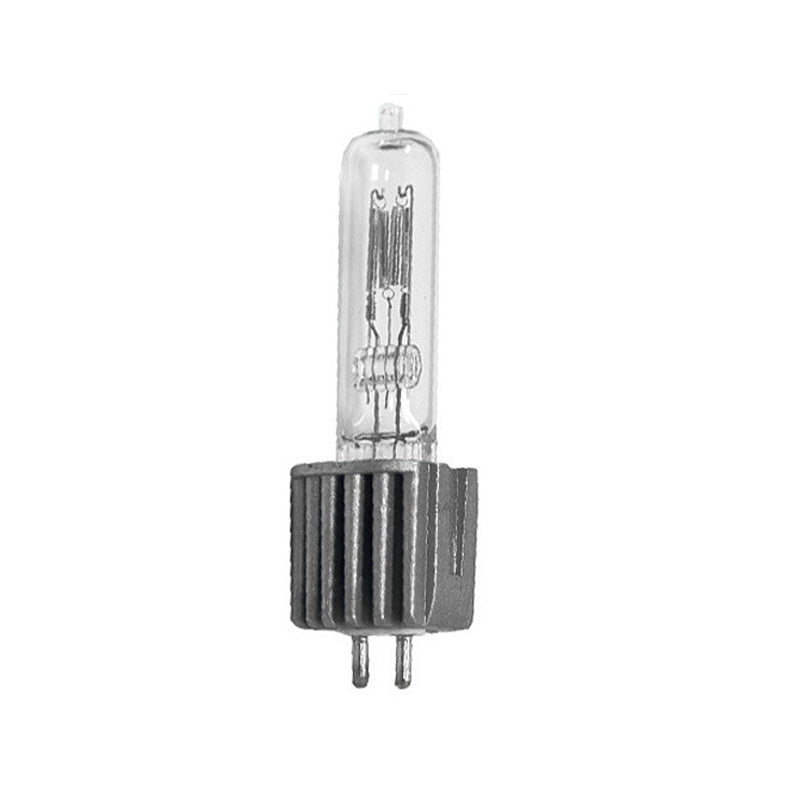

575 watt, tungsten halogen, HPL series, long life, Ultra Compact Filament. A family of stage & studio and architectural light sources and have been designed to work with ETC Source Four fixtures. Though these lamps are available in various wattages and voltages they all feature G9.5 medium 2-pin bases with heat sinks. Bulbamerica HPL-575-115-X runs on 115V and is a member of Long Life series, giving it a life hour rating of 2,000 hours. In addition, this lamp featuresultra compact filament technology, giving the lamp improved light collection and efficiency.
Cross Reference:
- Osram 54807 HPL 575/115/X (UCF)
Specs
Abbreviation Name | HPL-575-115-X |
Base | G9.5 2-Pin w/ Heat Sink |
Bulb Type | Halogen Bulbs |
Color Rendering Index (CRI) | 100 |
Color Temperature (K) | 3065K |

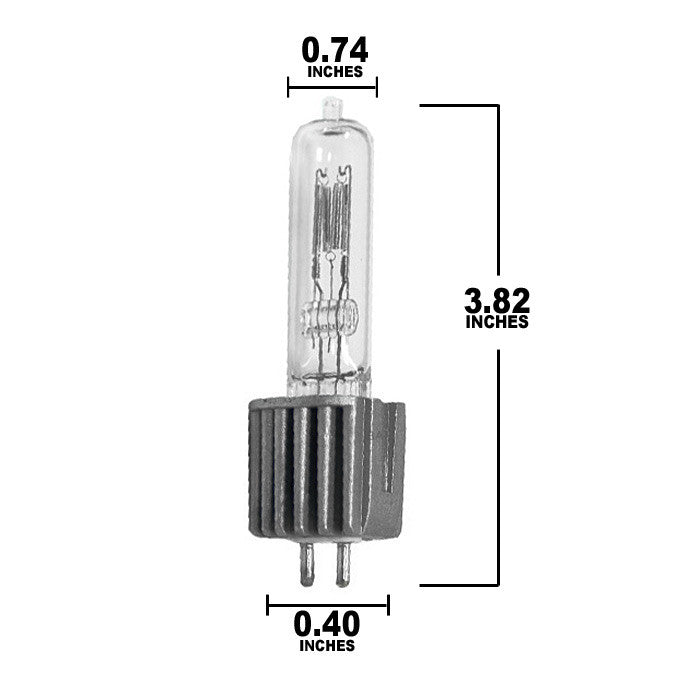

Diameter (in) | 0.741 |

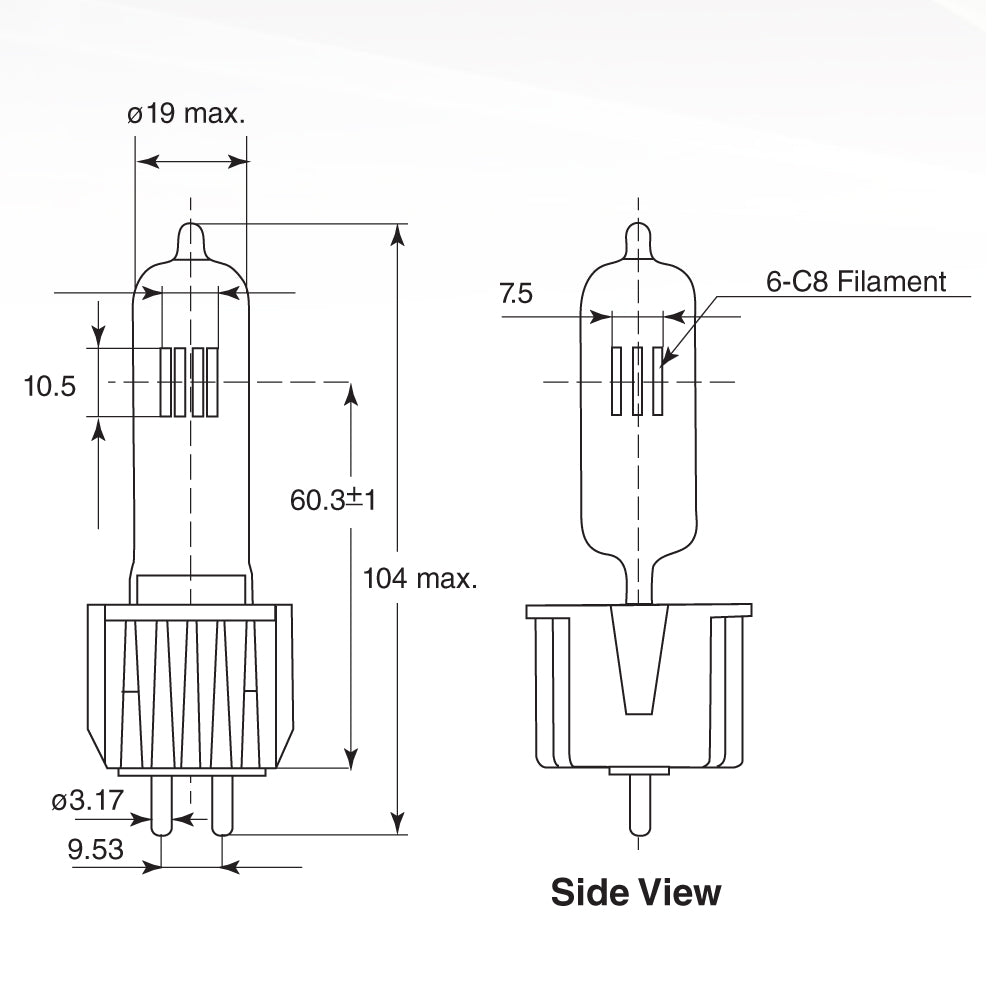

Filament | 4-C8 |
Lamp Finish | Clear |
Luminous Flux (LM) | 12360 |
Maximum Overall Length (in) | 3.822 |
Rated Life (Hours) | 2000 |
Shape | T6 |
Voltage (V) | 115V |
Wattage (W) | 575W |
Equipment
The HPL575/115 bulbs is used in following equipment
- ETC Source Four
- ETC Source Four 230 V
- ETC Source Four Jr
- ETC Source Four junior 230 V
- ETC Source Four Par & Parnel
- ETC Source Four Par 575
- ETC Source Four Zoom
