HPL 575w lamp 120v LL OSRAM 575watt Long Life HPL575/120/X Halogen Bulb

OSRAM SKU: 54815
$1260 $25.99 USD
166 in stock

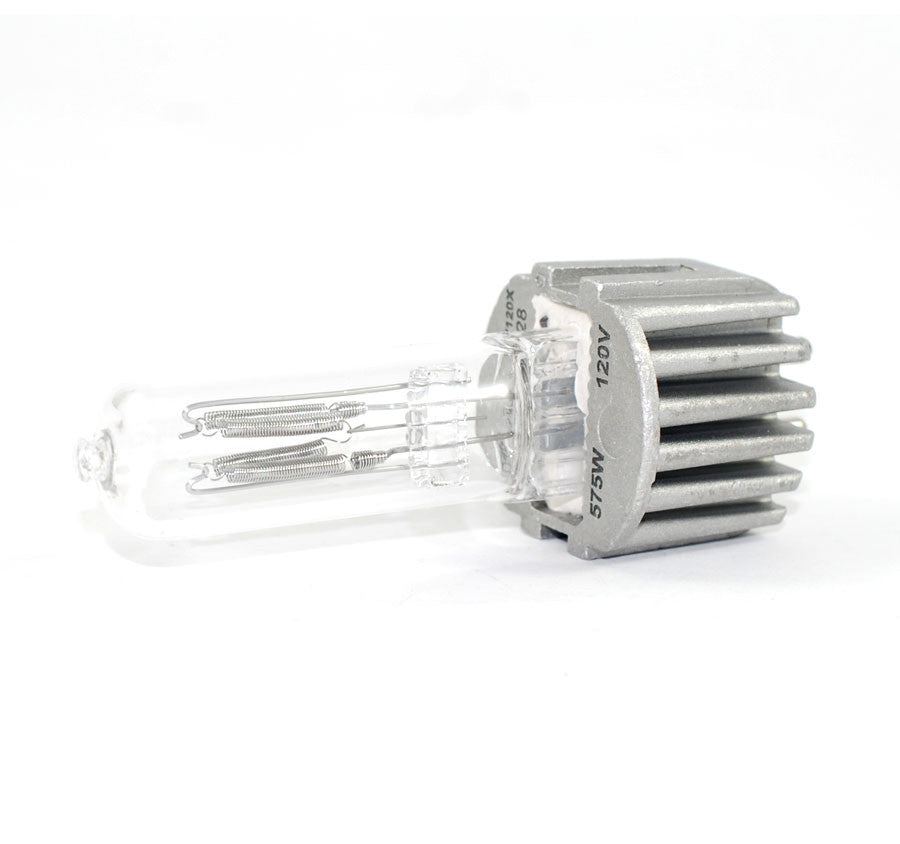

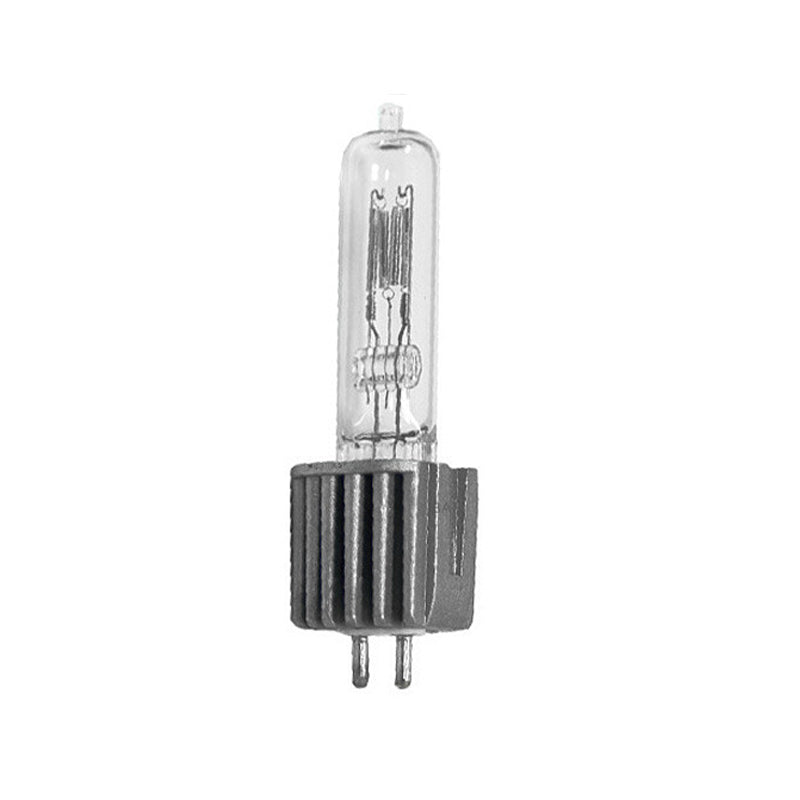

This 575 watt, tungsten halogen, long life, Ultra Compact Filament (UCF) is part of the stage, studio and architectural family of light bulbs, the HPL is designed to work with ETC Source Four fixtures. Though HPL lamps are available in various wattages and voltages they all feature G9.5 2-pin bases with heat sinks and 4-C8 filament. OSRAM 54815 is an HPL 575that runs on 120V and has a 2,000 hours rate life. The UCF (ultra compact filament) design and technology, giving the OSRAM HPL bulbs improved light collection and efficiency.

Cross Reference:
- OSRAM 54815 HPL575/120/X (UCF)
- GE 92435 HPL575/LL/C 120V
- Ushio 1002283 HPL-575/120X+, JS120V-575WX


Abbreviation Name HPL575/120/X

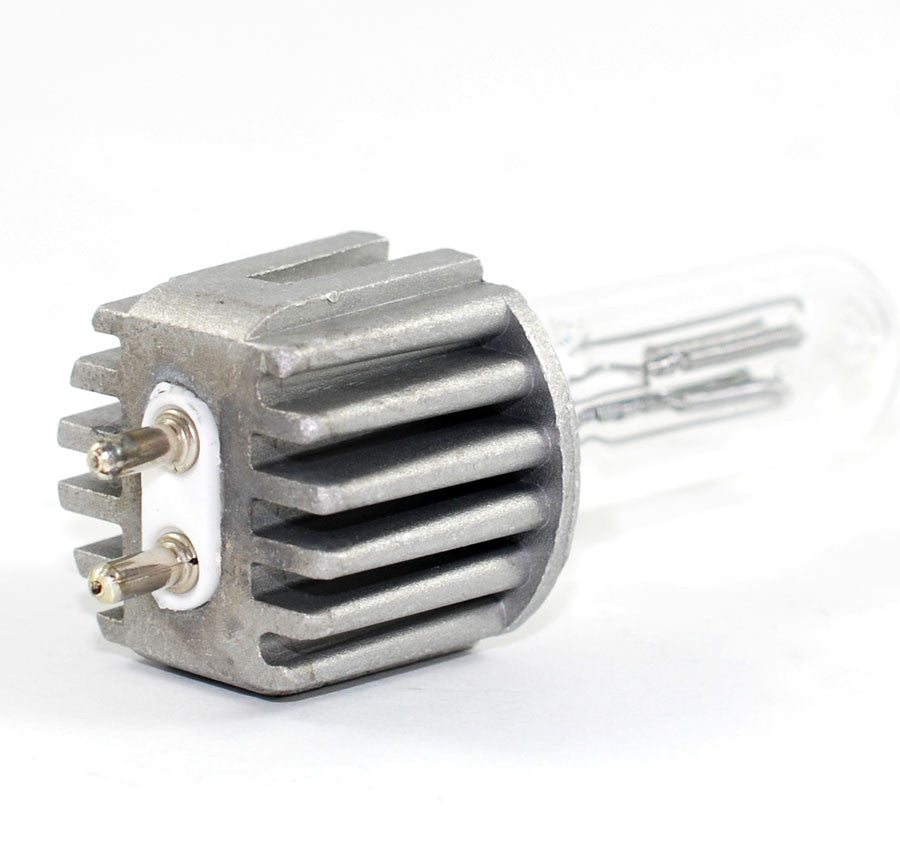

Base G9.5 2-Pin w/ Heat Sink
Bulb Type Halogen Bulbs
Color Rendering Index (CRI) 100
Color Temperature (K) 3050K

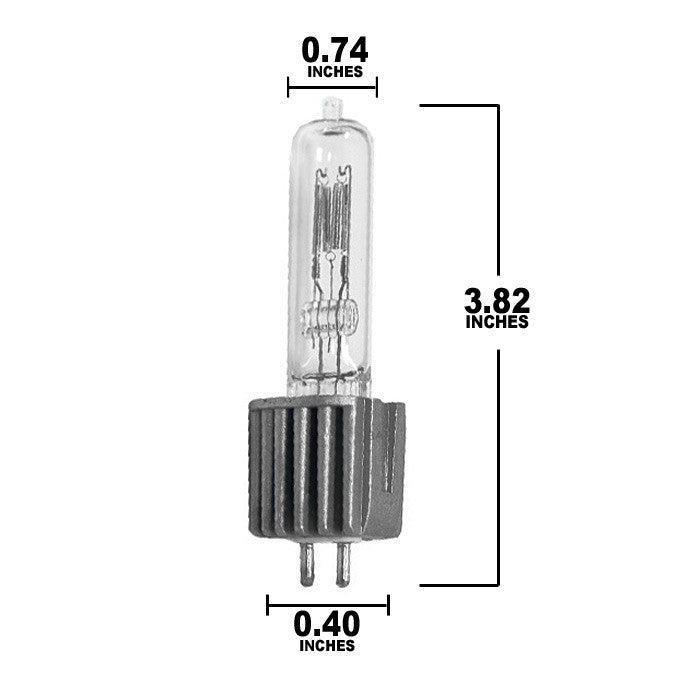

Diameter (in) 0.741

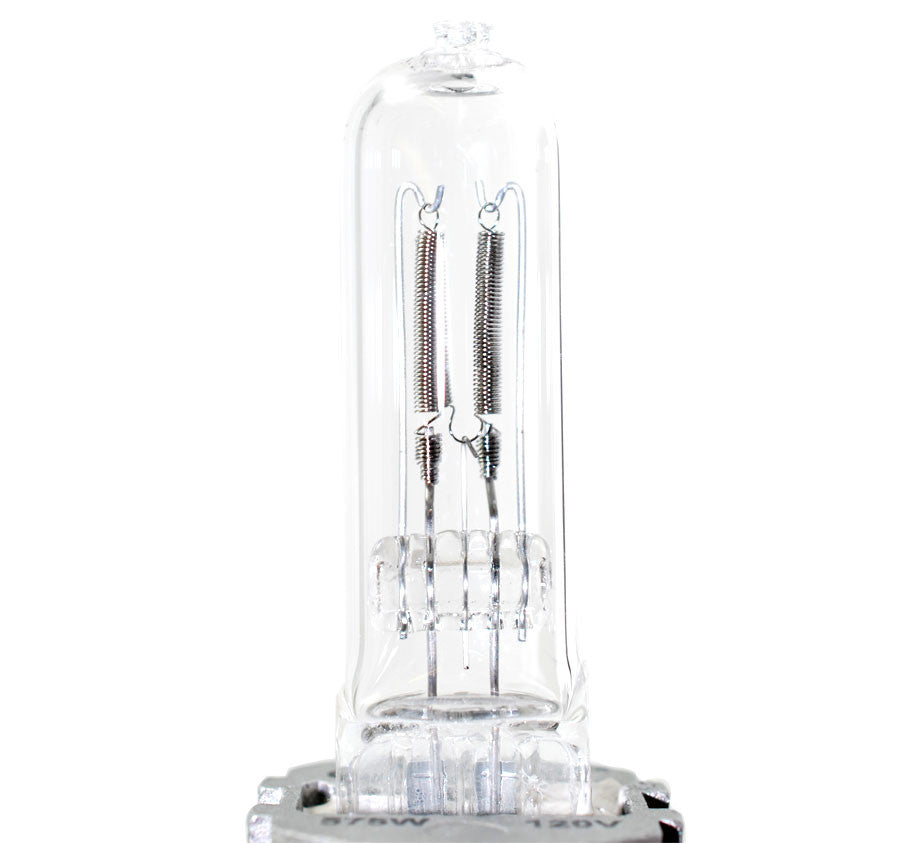

Filament 4-C8
Lamp Finish Clear
Luminous Flux (LM) 12360
Maximum Overall Length (in) 3.822
Rated Life (Hours) 2000
Shape T6
Voltage (V) 120V
Wattage (W) 575W
