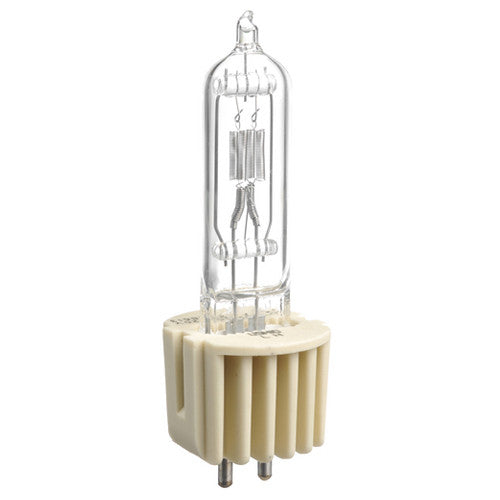

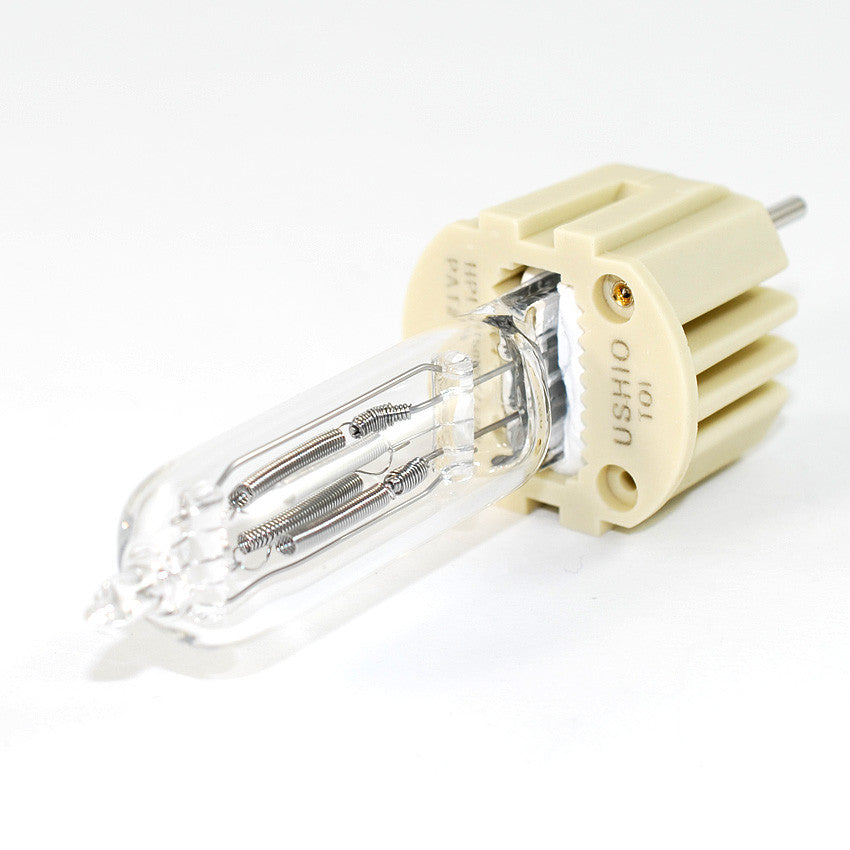

HPL 575w lamp 230v USHIO HPL-575/230X Long Life 575 watt halogen bulb

Ushio HPL-575/230X, JS230V-575WXN HPL 575Watt 230volt long life tungsten halogen, Long Life HPL Lamp.

The High performance Ushio 1002233 HPL-575/230X, JS230V-575WXN, 1500 Hour lamp has been redesigned to be the most powerful HPL ever. It's ultra-compact filament geometry now improves the optional efficiency of your ETC Source Four fixtures to produce up to 20% more fixture lumens. That's up to 20% more light from the same fixture as compared to the old lamp design.

Features:
- Abbreviation Name: HPL-575/230X, JS230V-575WXN, 1500 Hour
- Description: 575W 230V
- Base: G9.5 2-Pin w/ Heat Sink
- Bulb Type: Halogen Bulbs
- Color Rendering Index (CRI): 100
- Color Temperature (K): 3050K
- Diameter (in): 0.72
- Filament: 6-C8
- Lamp Finish: Clear
- Luminous Flux (LM): 11780
- Maximum Overall Length (in): 4.09
- Rated Life (Hours): 1500
- Shape: T6
- Voltage: 230V
- Wattage: 575W

Abbreviation Name	HPL-575/230X, JS230V-575WXN, 1500 Hour
Description	575W 230V
Base	G9.5 2-Pin w/ Heat Sink
Bulb Type	Halogen Bulbs
Color Rendering Index (CRI)	100
Color Temperature (K)	3050K
Diameter (in)	0.72
Filament	6-C8
Lamp Finish	Clear
Luminous Flux (LM)	11780
Maximum Overall Length (in)	4.09
Rated Life (Hours)	1500
Shape	T6
Voltage	230V
Wattage	575W

Manual:

HPL Cross Reference
Ushio 1002233 HPL-575/230X
