HPL-750 750w 120V T6 USHIO HPL HPL-750/120X 3050K Long Life halogen lamp bulb

Ushio HPL-750/120X+, JS120V-750WX HPL lamp 750 Watt 120 Volt tungsten halogen, Long Life HPL series.

The High performance Ushio 1003178 HPL-750/120X+, JS120V-750WX, 1500 Hour lamp has been redesigned to be the most powerful HPL ever. It's ultra-compact filament geometry now improves the optional efficiency of your ETC Source Four fixtures to produce up to 20% more fixture lumens. That's up to 20% more light from the same fixture as compared to the old lamp design.

Features:
- Abbreviation Name: HPL-750/120X+, JS120V-750WX, 1500 Hour
- Description: 750W 120V

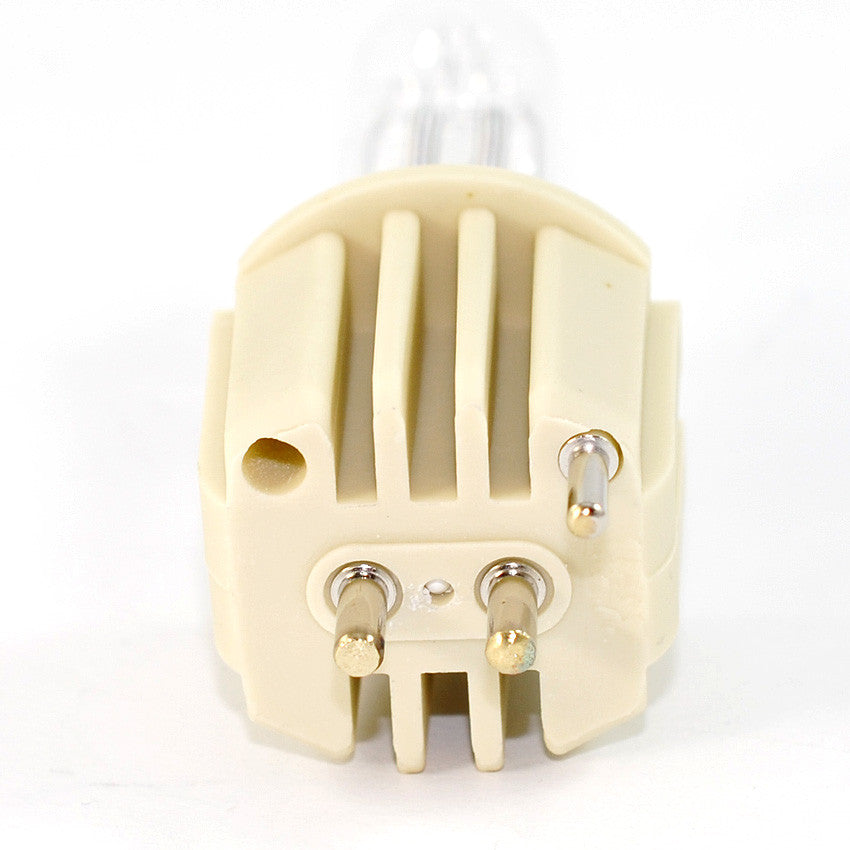

- Base: G9.5 2-Pin w/ Heat Sink
- Bulb Type: Halogen Bulbs
- Color Rendering Index (CRI): 100
- Color Temperature (K): 3050K
- Diameter (in): 0.72
- Filament: 4-C8
- Lamp Finish: Clear
- Luminous Flux (LM): 16400
- Maximum Overall Length (in): 4.09
- Rated Life (Hours): 1500
- Shape: T6
- Voltage: 120V
- Wattage: 750W

Abbreviation Name	HPL-750/120X+, JS120V-750WX, 1500 Hour
Description	750W 120V
Base	G9.5 2-Pin w/ Heat Sink
Bulb Type	Halogen Bulbs
Color Rendering Index (CRI)	100
Color Temperature (K)	3050K
Diameter (in)	0.72
Filament	4-C8
Lamp Finish	Clear
Luminous Flux (LM)	16400
Maximum Overall Length (in)	4.09
Rated Life (Hours)	1500
Shape	T6
Voltage	120V
Wattage	750W

Manual:

Ushio 1003178 HPL-750/120X+
HPL Cross Reference
