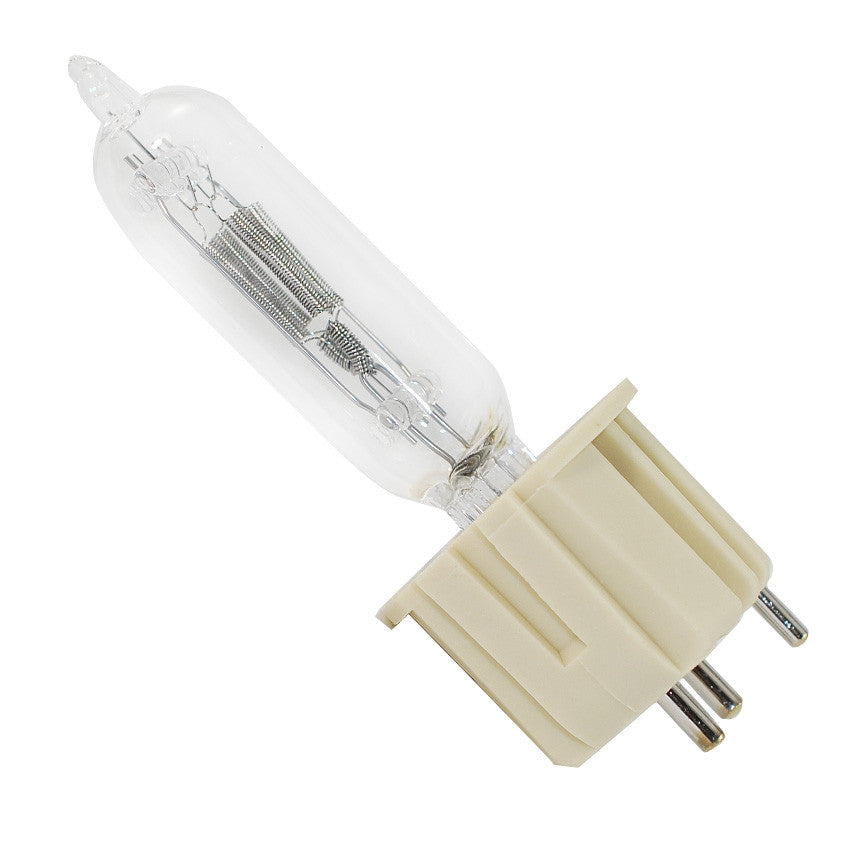

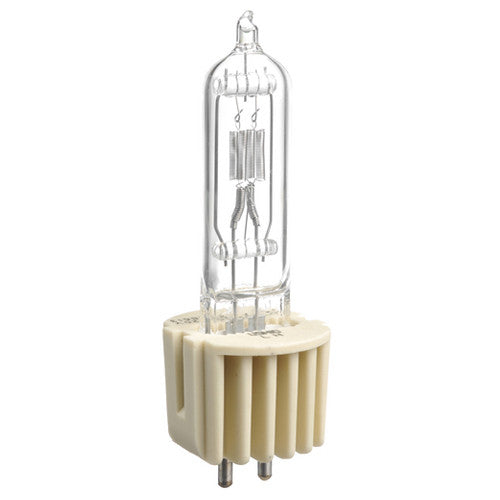

HPL 750w lamp 115v USHIO HPL-750/115V 750 watt halogen bulb

Ushio HPL-750/115V+, JS115V-750WC 750 Watt 115Volt tungsten halogen, HPL series.

The High performance Ushio 1000675 HPL-750/115V+, JS115V-750WC, 300 Hour lamp has been redesigned to be the most powerful HPL ever. It's ultra-compact filament geometry now improves the optional efficiency of your ETC Source Four fixtures to produce up to 20% more fixture lumens. That's up to 20% more light from the same fixture as compared to the old lamp design.

Features:
- Abbreviation Name: HPL-750/115V+, JS115V-750WC, 300 Hour
- Description 2: 750W 115V
- Base: G9.5 2-Pin w/ Heat Sink
- Bulb Type: Halogen Bulbs
- Color Rendering Index (CRI): 100
- Color Temperature (K): 3250K
- Diameter (in): 0.72
- Filament: 4-C8
- Lamp Finish: Clear
- Luminous Flux (LM): 21900
- Maximum Overall Length (in): 4.09
- Rated Life (Hours): 300
- Shape: T6
- Voltage: 115V
- Wattage: 750W

The HPL750/115 bulbs is used in following equipment:
- ETC Source Four
- ETC Source Four Parnel
- ETC Source Four Zoom

Abbreviation Name	HPL-750/115V+, JS115V-750WC, 300 Hour
Description 2	750W 115V
Base	G9.5 2-Pin w/ Heat Sink
Bulb Type	Halogen Bulbs
Color Rendering Index (CRI)	100
Color Temperature (K)	3250K
Diameter (in)	0.72
Filament	4-C8
Lamp Finish	Clear
Luminous Flux (LM)	21900
Maximum Overall Length (in)	4.09
Rated Life (Hours)	300
Shape	T6
Voltage	115V
Wattage	750W

Manual:

Ushio 1000675 HPL-750/115V+
HPL Cross Reference
