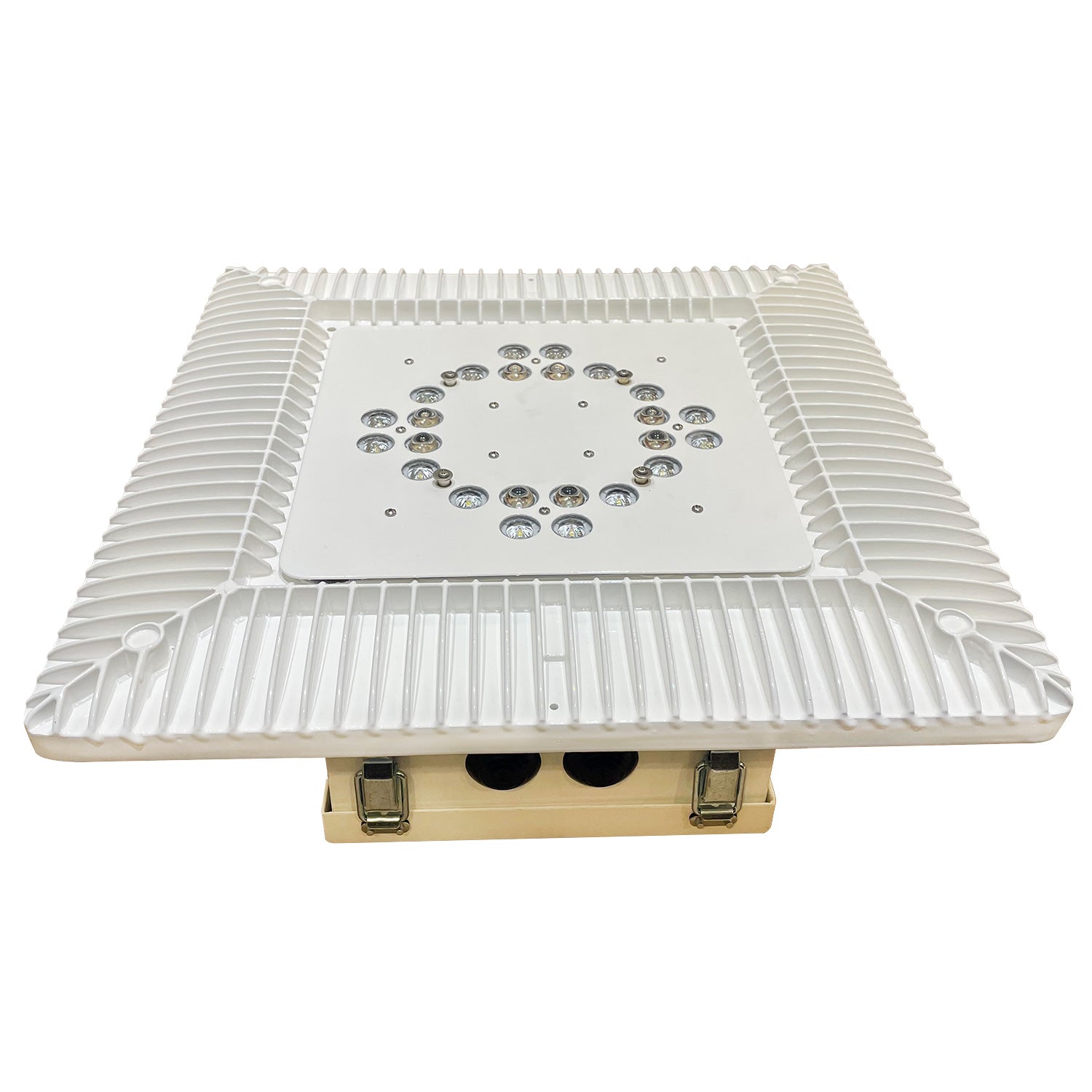

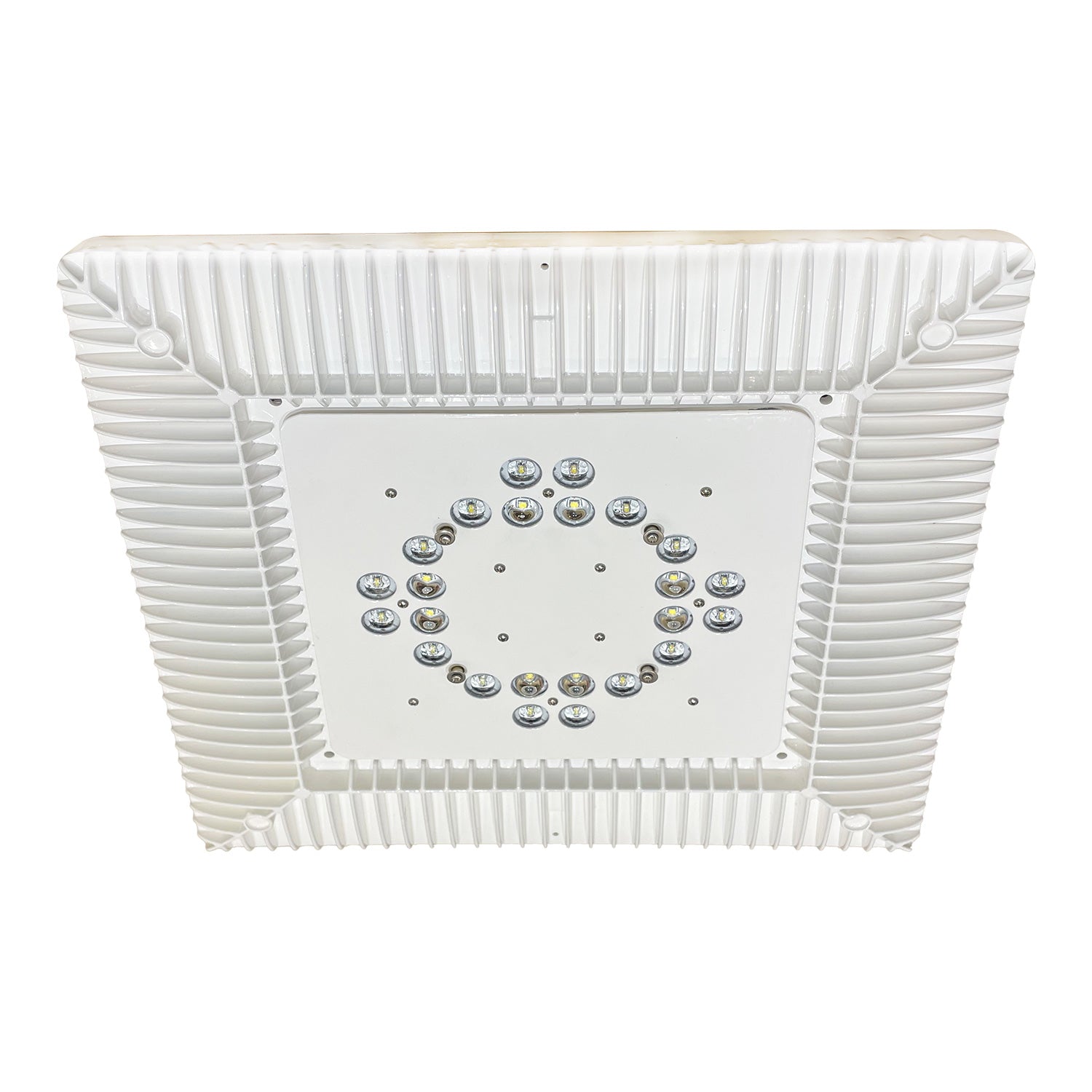

Hubbell LED Gas Station Canopy Light 60W 5000K 120–277V White Fixture

Hubbell LED Gas Station Canopy Light 60W 5000K 120–277V White Fixture

Features and Benefits:
- Stylish vertically finned die-cast lower heatsink and aluminum driver box above the canopy
- Designed for optimal thermal transfer and easy installation
- Made from low-copper marine-grade cast aluminum
- Optical assembly designed to exceed IP66 design standards allowing for light hose down cleaning
- Application-specific optics maximize energy efficiency by focusing illumination on key areas and preventing wasted light
- All-inclusive housing provides an integral wiring and driver compartment for ease of installation
- Replaceable LED module enables future upgrades/ service for the LED light engine
- Thermal frame technology provides state-of-the-art passive cooling in the most demanding environments
- Choice of 16 high-brightness LED configurations with individual acrylic lenses to produce a square or round distribution for multiple applications
- Acrilyc lens - NOT INCLUDED

GENERAL CHARACTERISTICS
Fixture Life hours	60,000 hrs
Material	Metal
Lens Material	Aluminum
Finish	White
FIXTURE CHARACTERISTICS
Number of Lights	1 - Light
Mounting	Ceiling Flush Mount
Use Location	Outdoor
ELECTRICAL CHARACTERISTICS
Watts	60
Equivalent Watts	175w
Volts	120-277
LIGHT CHARACTERISTICS
Brightness	5,750 Lumens
Color Accuracy (CRI)	70
Color Temperature	5100K
PRODUCT DIMENSIONS
Item Dimensions (in)	(W) 9.70 (H) 6.61 (D) 15.75
Ingress Protection	IP65
PRODUCT DATA
Item Number	FLEDR-24-7-UNIV-CVQ-5-WH
Brand	HUBBELL LIGHTING
Warranty	5 Years Limited

Manual:

FLEDR-24-7-UNIV-CVQ-5-WH Data Sheet
FLEDR-24-7-UNIV-CVQ-5-WH Installation Manual
