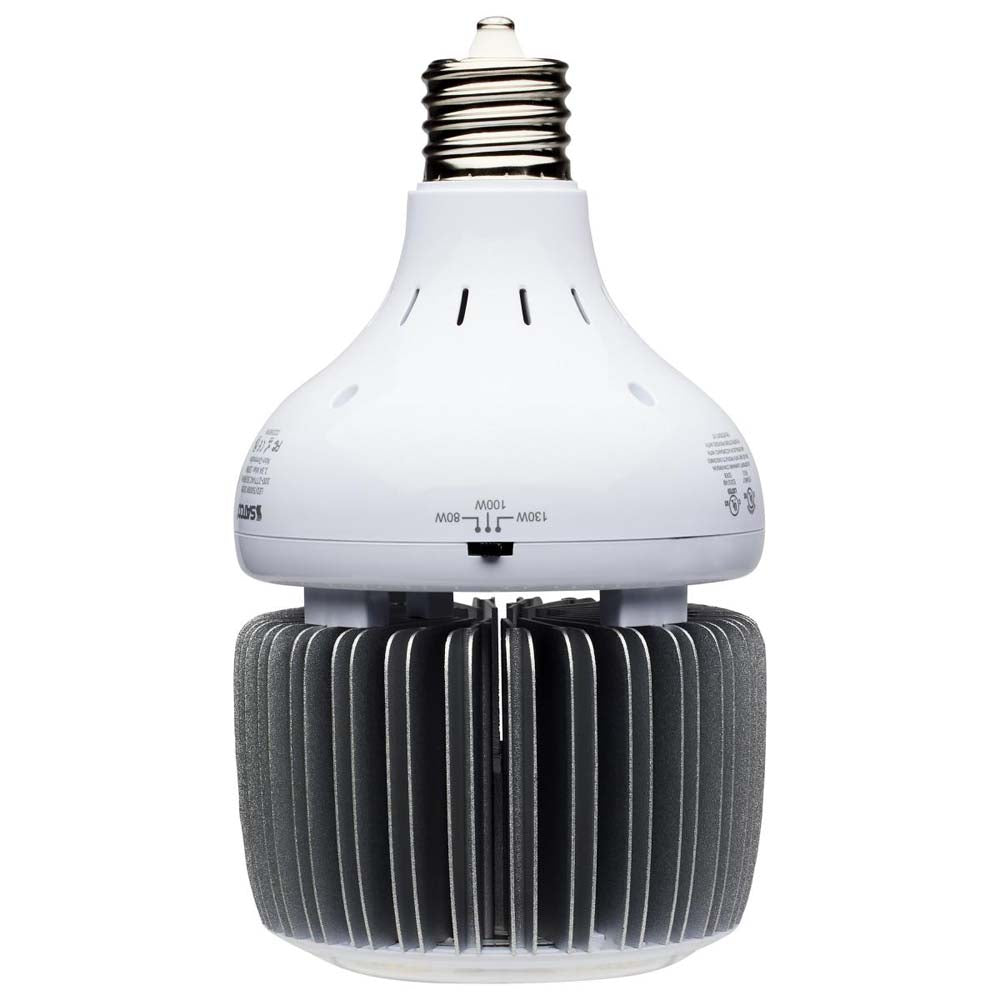

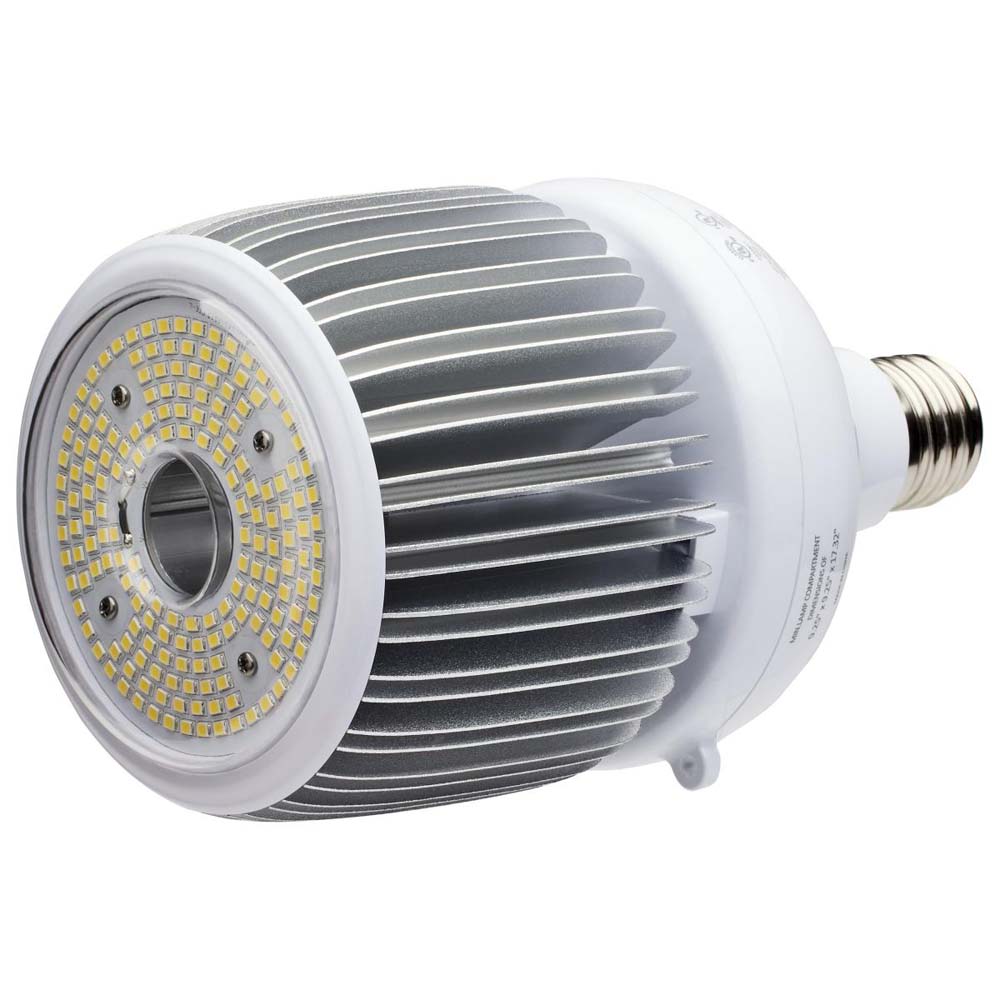

LED Hi-Bay 80/100/130 Selectable Wattage Mogul Extended 4000K 100V-277V

Satco new high bay/low bay offers improved performance on every level and are now power selectable to cover a wider range of applications. Replaces 175 to 600 Watt HID technologies using 60 to 150 Watts of efficient, superior LED light. The redesigned compact shape expands fixture compatibility options, and advanced heat dissipation design featuring convection cooling means a cooler running, longer lasting lamp. Commercial venues everywhere have been relying on these fixtures for years such as warehouses, gymnasiums, health clubs, factories and arenas - everywhere superior light output is critical and reducing maintenance is important.

Features:
- Watts: 80W, 100W, 130W, Incandescent Equivalent: 400W
- HID Equivalent: 250W, 320W, 400W
- Volts: 100V-277V, Shape: Hi-Bay
- Base: Mogul Extended, ANSI Base: EX39
- CCT (Kelvin): 4000K, Temperature: Cool White
- CRI: 80, Lumens: 11200L, 14000L, 18200L
- Beam Spread: 120, Non-Dimmable
- Rated Life: 50,000 hrs
- Warranty: 5 Year Limited

General
Watts	80W/100W/130W
Incandescent Equivalent	400W
HID Equivalent	250W/320W/400W
Volts	100V-277V
Shape	Hi-Bay
Base	Mogul Extended
ANSI Base	EX39
CCT (Kelvin)	4000K
Temperature	Cool White
CRI	80
Lumens	11200L/14000L/18200L
Beam Spread	120
Dimmable	Non-Dimmable
Rated Life	50,000 hrs
Lamp Type	LED HID
Technology	LED
Electrical
Operating Frequency	50/60Hz
Operating Temperature	-25C (-13F) to +50C (+122F)
Physical
MOL	9.72
MOD	5.51
Weight (lb.)	2.7
Additional Information
Rated For Enclosed Fixture	Yes
Warranty	5 Year Limited - Hi-Pro
Compliance
Safety Listing	cULus - Classified;cULus - Listed
Location Rating	Damp
Energy Star	No
California Status	Lawful for sale
RoHS Compliant	Yes
FCC Compliant	Yes

Manual:

S33114 Data Sheet
S16418 Installation Manual
