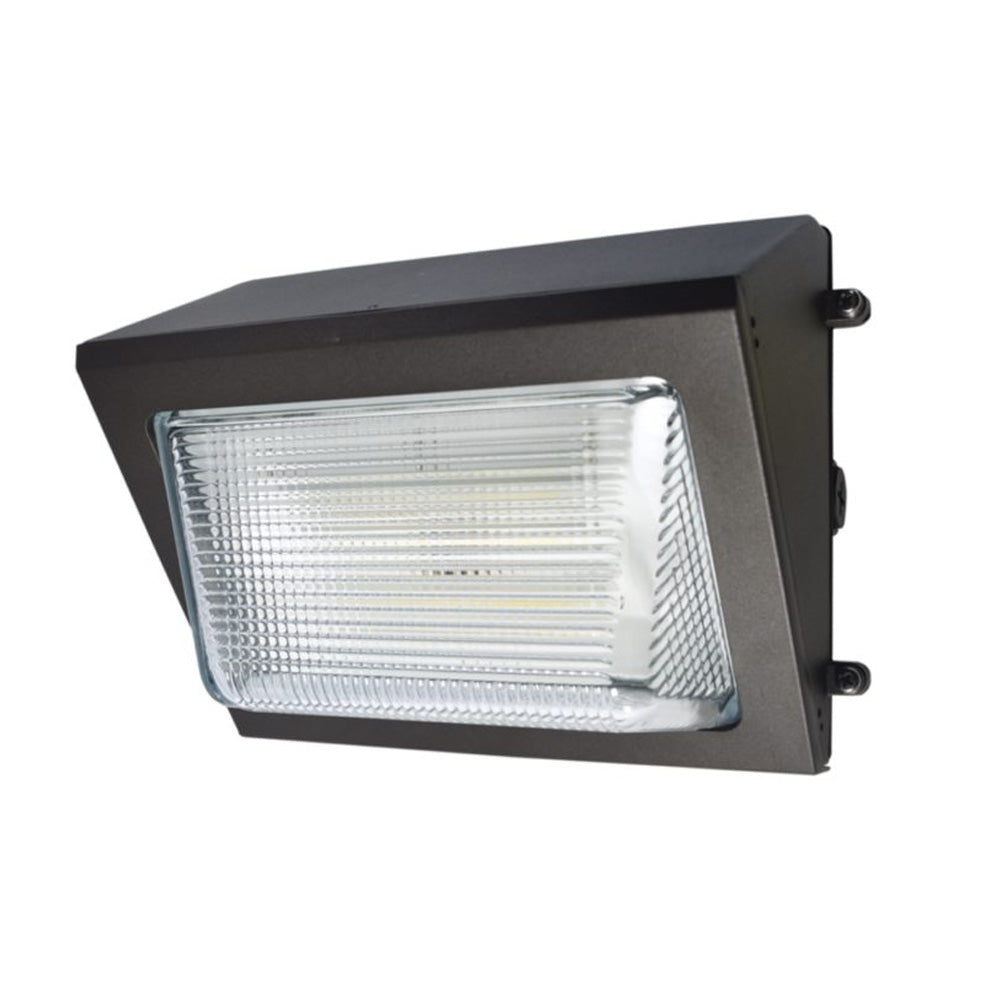

Cooper Lumark 40w LED (100w MH) Wall Pack 4800 Lumens 5000K in Bronze Finish

Cooper Lumark 40w LED Wall Pack 4800 Lumens 5000K in Bronze Finish

The Lumark WP Wall Pack LED wall luminaire provides a traditional architectural style with high-performance energy-efficient illumination. Rugged die-cast aluminum construction, stainless steel hardware along a sealed and gasketed optical compartment make the luminaire virtually impenetrable to contaminants.
IP66 Rated. UL/cUL wet location listed. Replaces up to 100W metal halide equivalent
The WP wall luminaire is ideal for pathway illumination, building entrances, vehicle ramps, schools, tunnels, stairways, and loading docks.

Features
- Die-Cast Aluminum Housing with hinged, removable die-cast aluminum door
- 1/2" threaded conduit entry points (3 on small housing)
- Heat and Impact resistant borosilicate refractive glass lens
- Energy and Maintenance savings up to 89% versus HID solutions
- UV Stabilized polyester powder coat paint for protection against fade and wear
- Bronze color
- 89% lumen maintenance at 50,000 hours at 40°C - 80CRI minimum
- Operates at -40°C to 40°C (-40°F to 104°F)
- <20% total harmonic distortion
- Class 2 driver incorporates internal fusing designed to withstand 6kV surge test
- 0-10V dimming driver is standard
- Universal voltage (120-277V 50/60 Hz) - UL Listed, IP66, DLC, RoHS compliant
- Five-year warranty

Brand	Cooper Lumark
Model Number	WPSLED10-C
Lamp Type	LED
Luminaire Finish	Bronze
Housing	Aluminum
Wattage (W)	40
Lumens (lm)	4800
Color Rendering Index (CRI)	>80
Color Temperature/CCT (K)	5000
Replacement for	100W HPS / MH
Rated Life (hr)	150000
Voltage (V)	120-277
Warranty	5 Years Limited

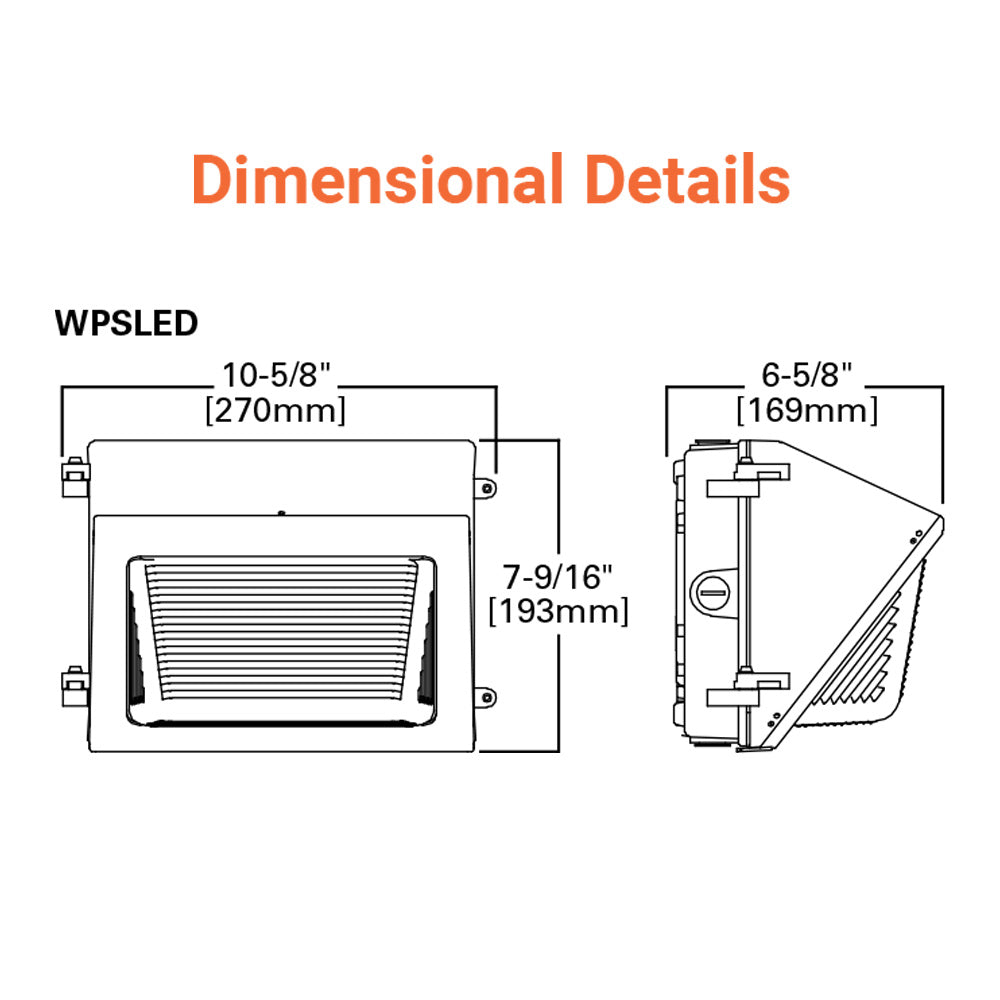

Height (in.)	7 9/16 in (193mm)
Length (in.)	10 5/8in (270mm)
Width (in.)	6 5/8in (169mm)
Weight	7.5lbs (3.4kg)

Documents:

Product Information
Installation Instructions
Spec Sheet
