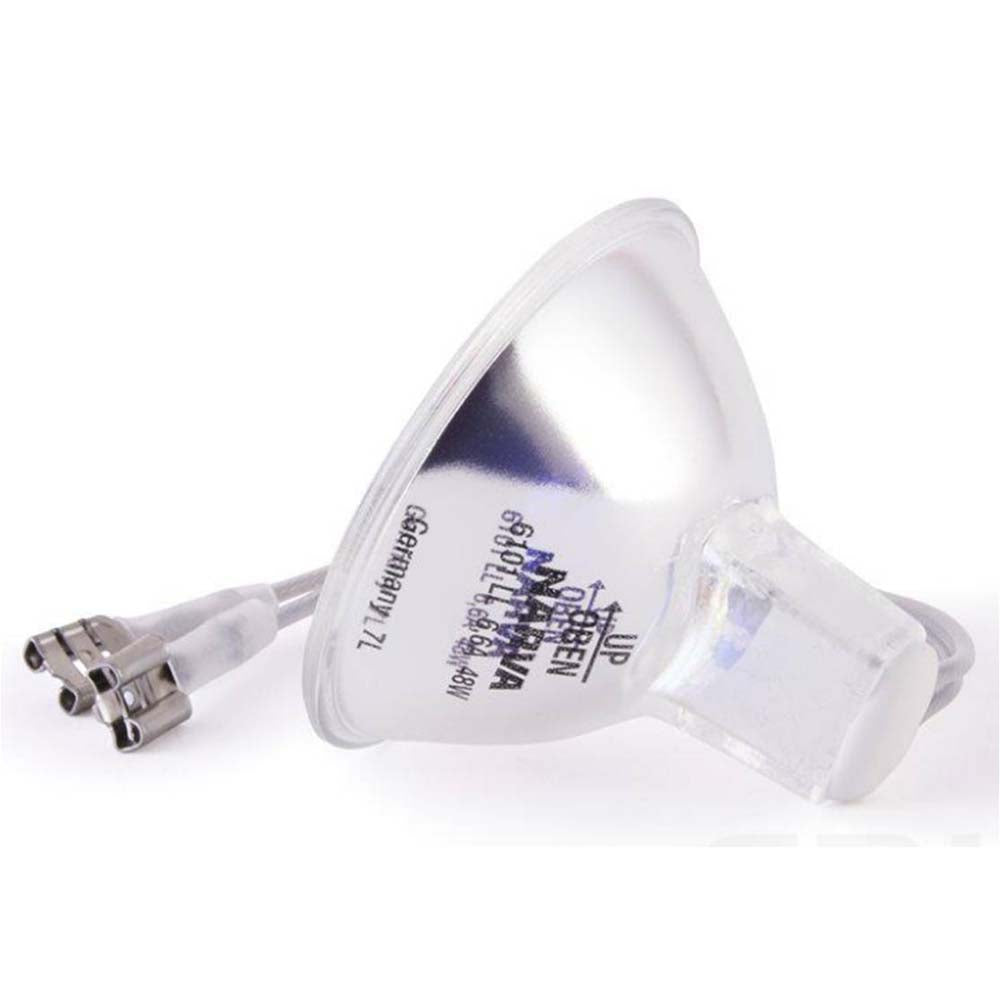

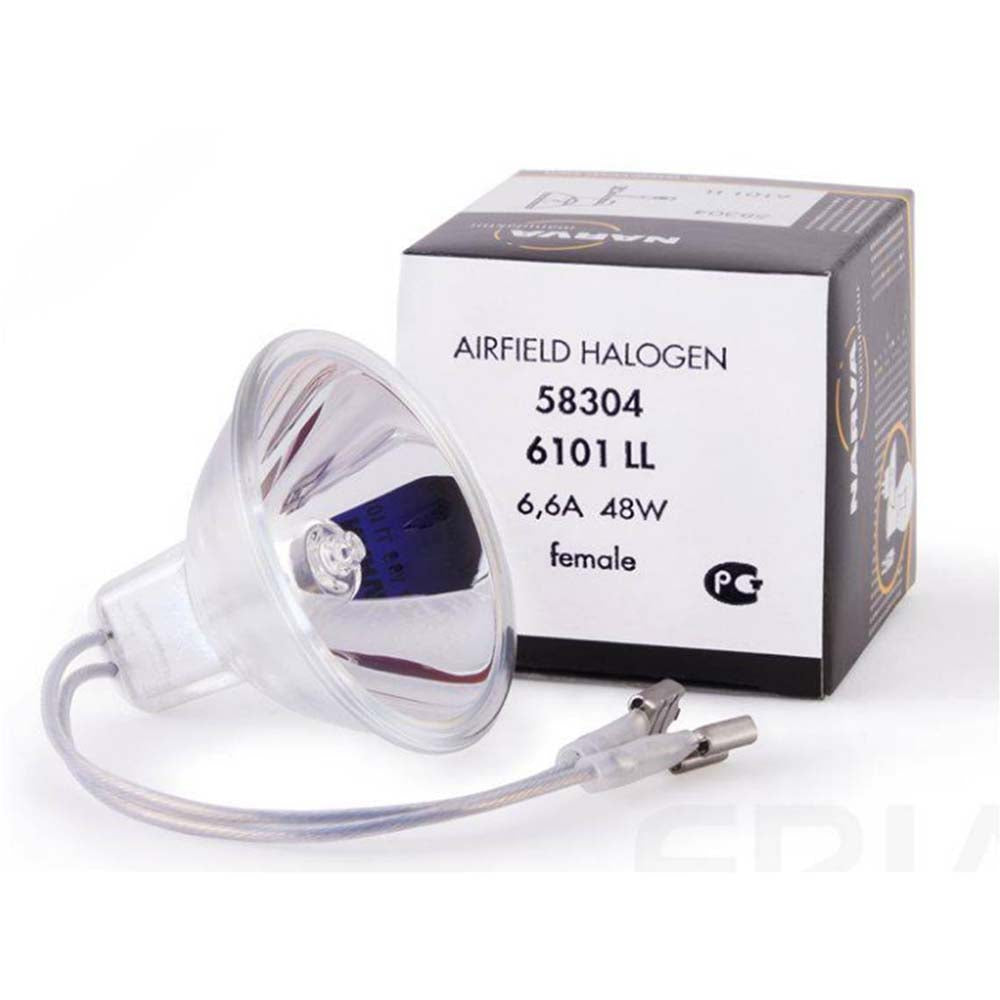

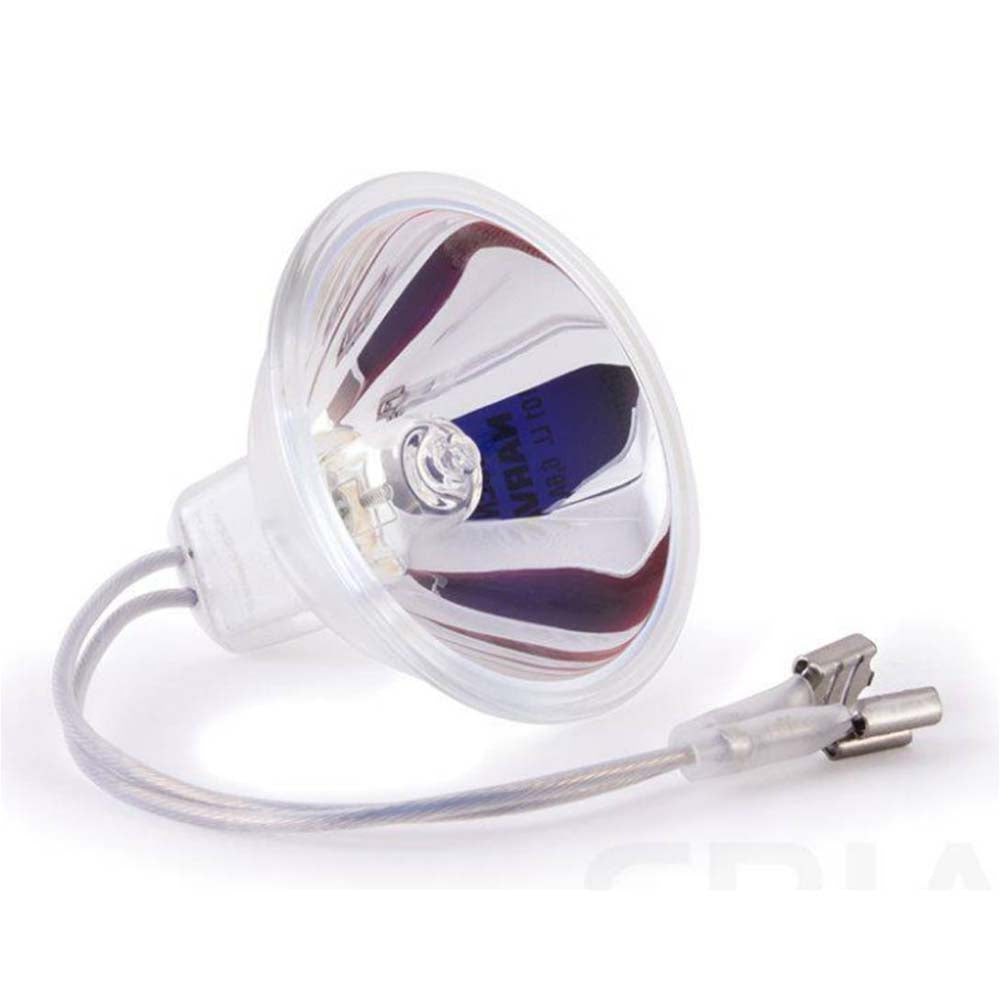

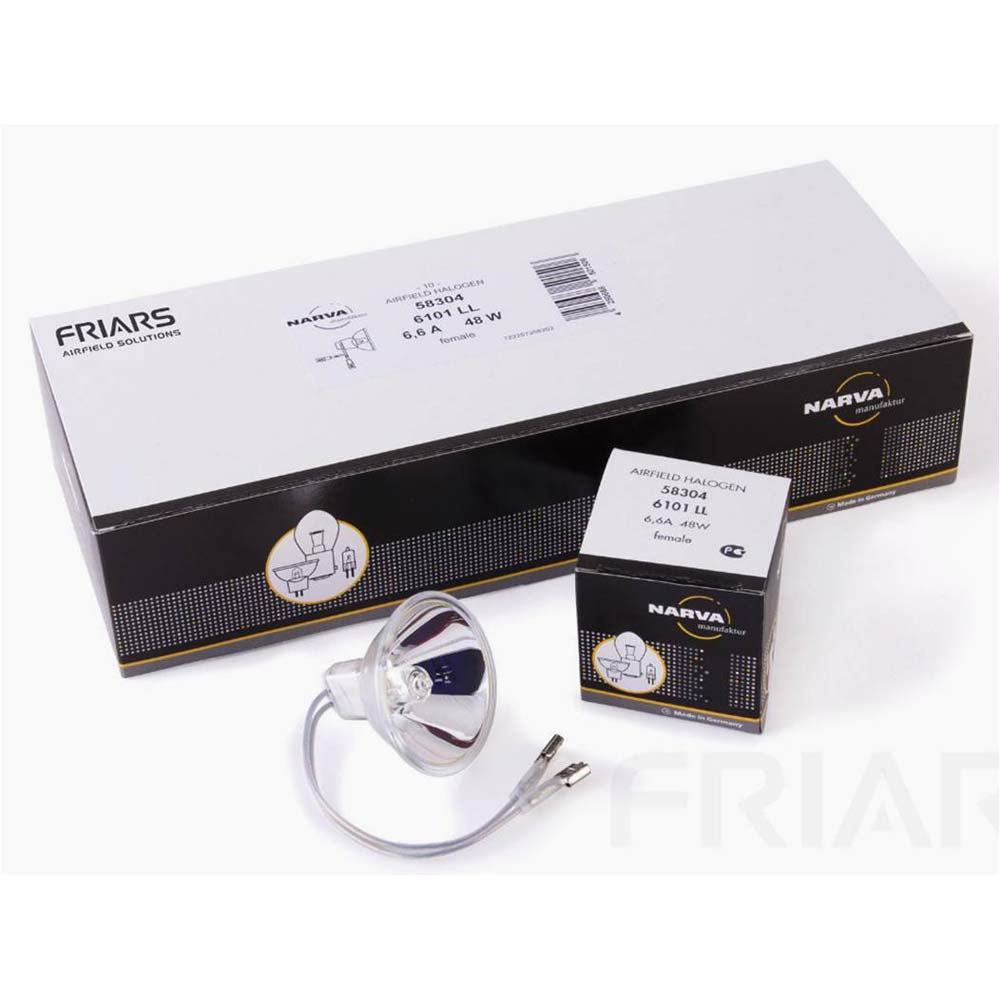

Narva 58304 6101 LL 6.6A 48W Cable Female Connector Airfield Bulb

The Narva Type 6101LL Female Flat Connector Halogen Dichroic Reflector Airfield Lamp is no exception. With a high and constant lumen output of 48W, the unit delivers optimal performance for a range of different airfield ground lighting applications including guidance signs, landing lights and obstruction lighting. Vosla manufactures the Narva Type 6101LL lamp without the use of mercury to ensure full compliance to regulations such as FAA and ICAO

Features:
- Socket: cable flat female
- Lifetime: 2,500 hrs
- High and constant luminous flux
- Strong light focus
- Axial light intensity (kcd): min. 30

Applications:
- Approach and threshold lights
- Runway and taxiway lights
- Airport Signs
- Stop bar and touchdown zone lights

Cross reference:
- Sylvania: L2358 / 21496 - LIF: J1/85 - Osram: 64337 A48-15 - Philips: 6101 - Philips: 923018885931

Manufacturer	Narva
Bulb Type	Halogen Bulbs
Base	Cable Flat Female Connector
Filament Type	C-8
Rated Current (A)	6,6
Reflector type	MR16
Wattage	48
Lumens	20000
Rated Life	2,500 hrs

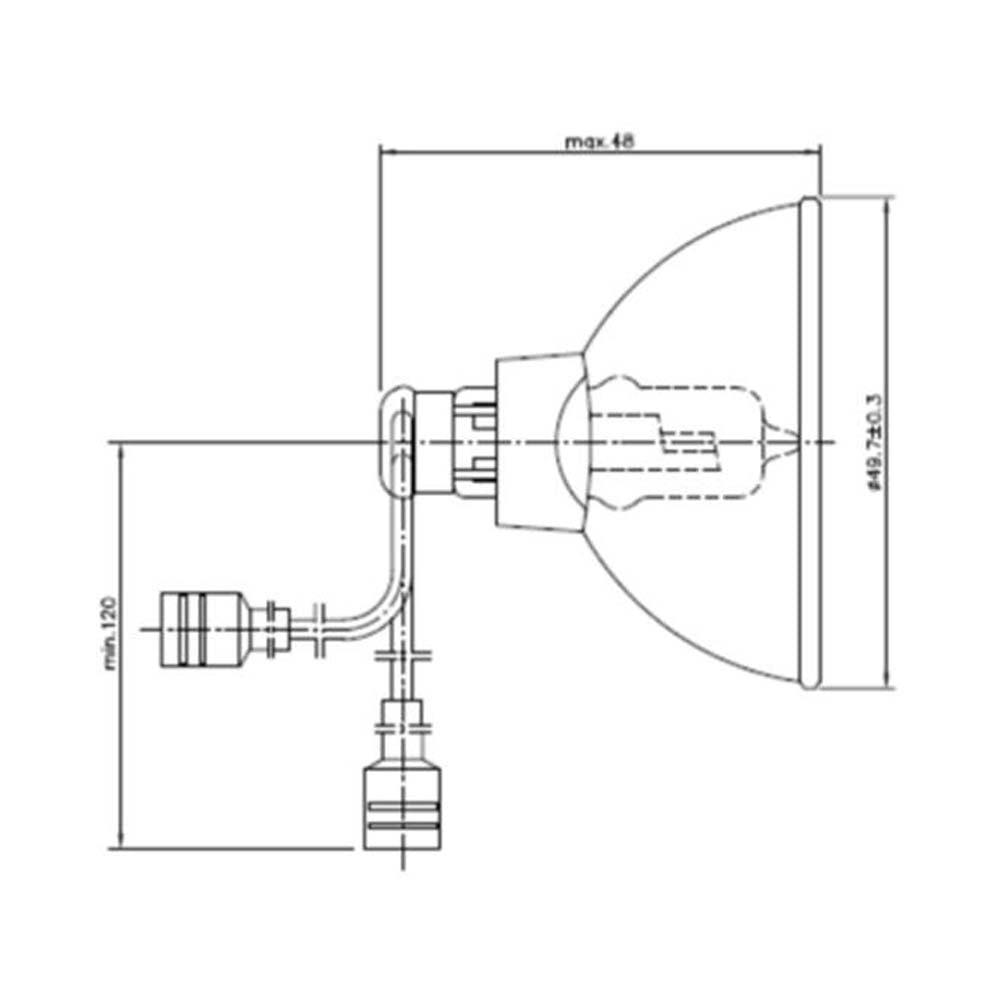

MOL (in)	1.77 (45 mm)
Diameter (in)	1.96 (49.07 mm)
Maximum allowed cable temperature (°C)	250
Maximum allowed pinch temperature (°C)	350
Burning Position	S90
Part Number	58304
UPC	4250686501490

Manual:

58304 Data Sheet
