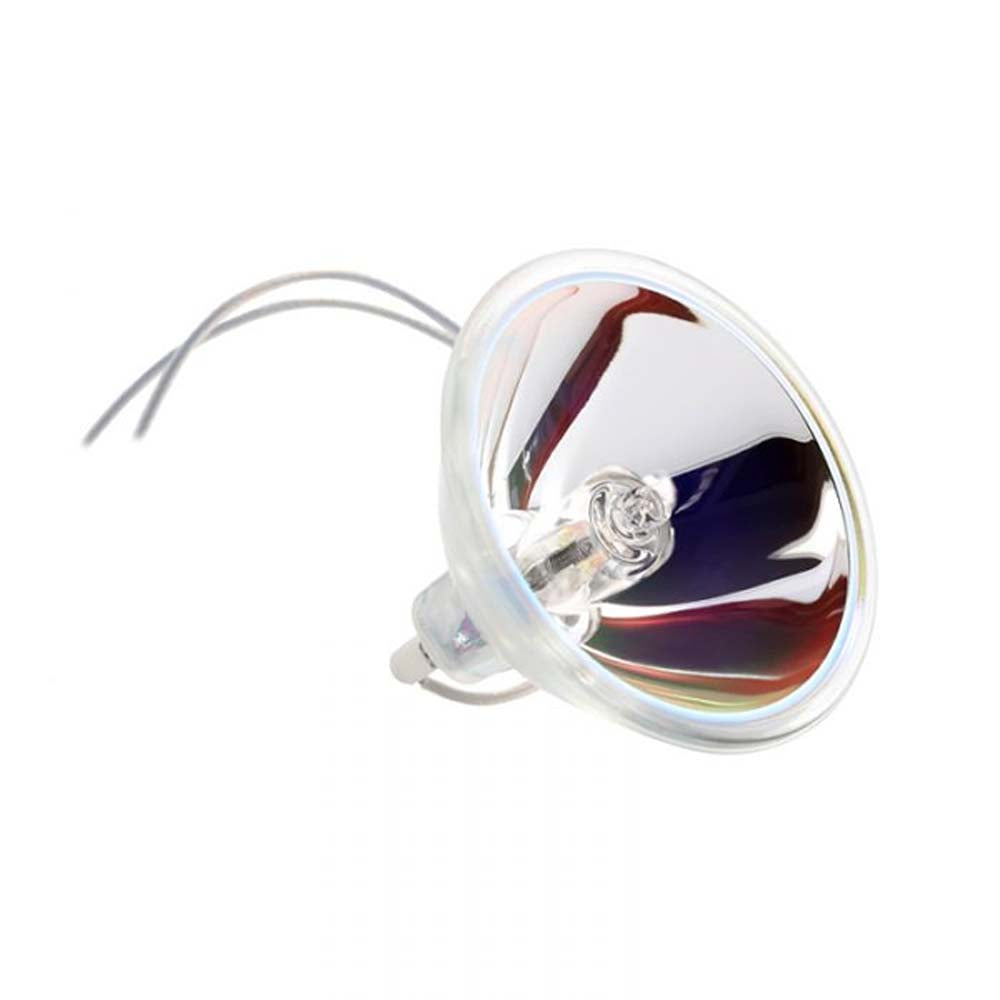

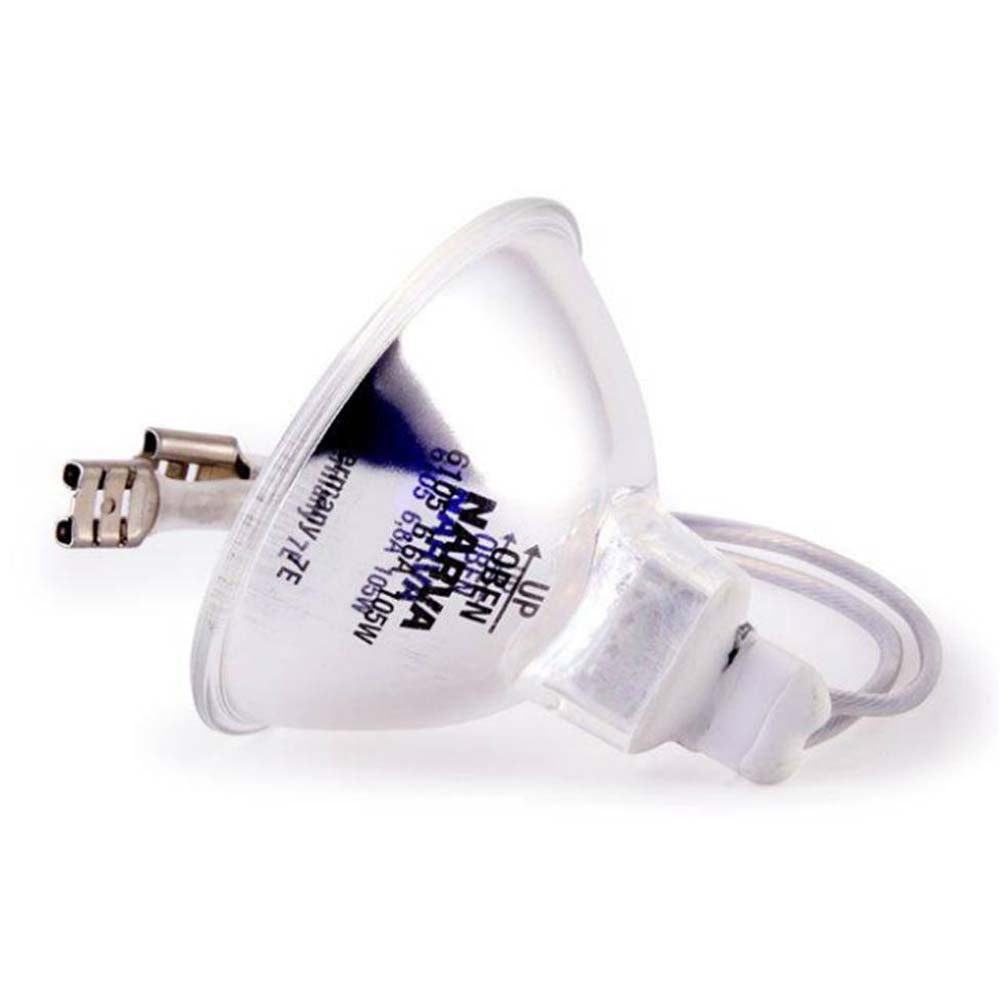

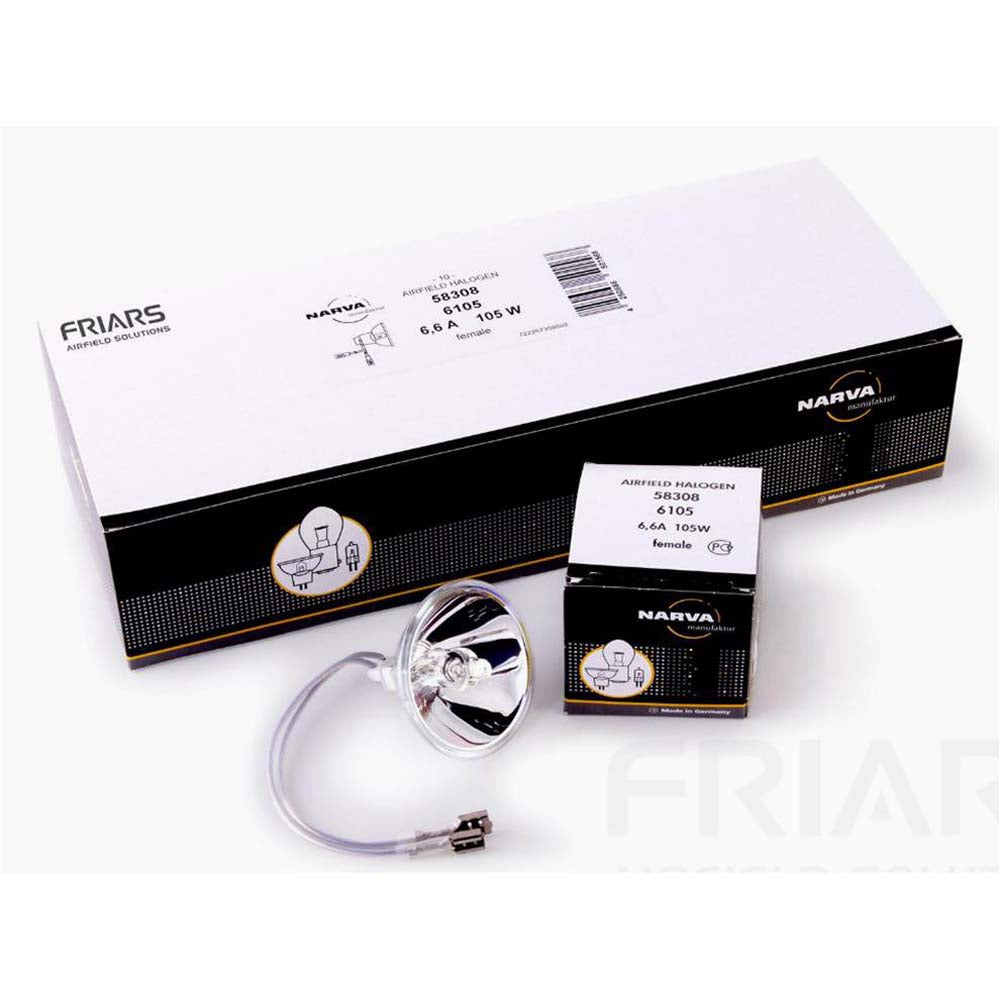

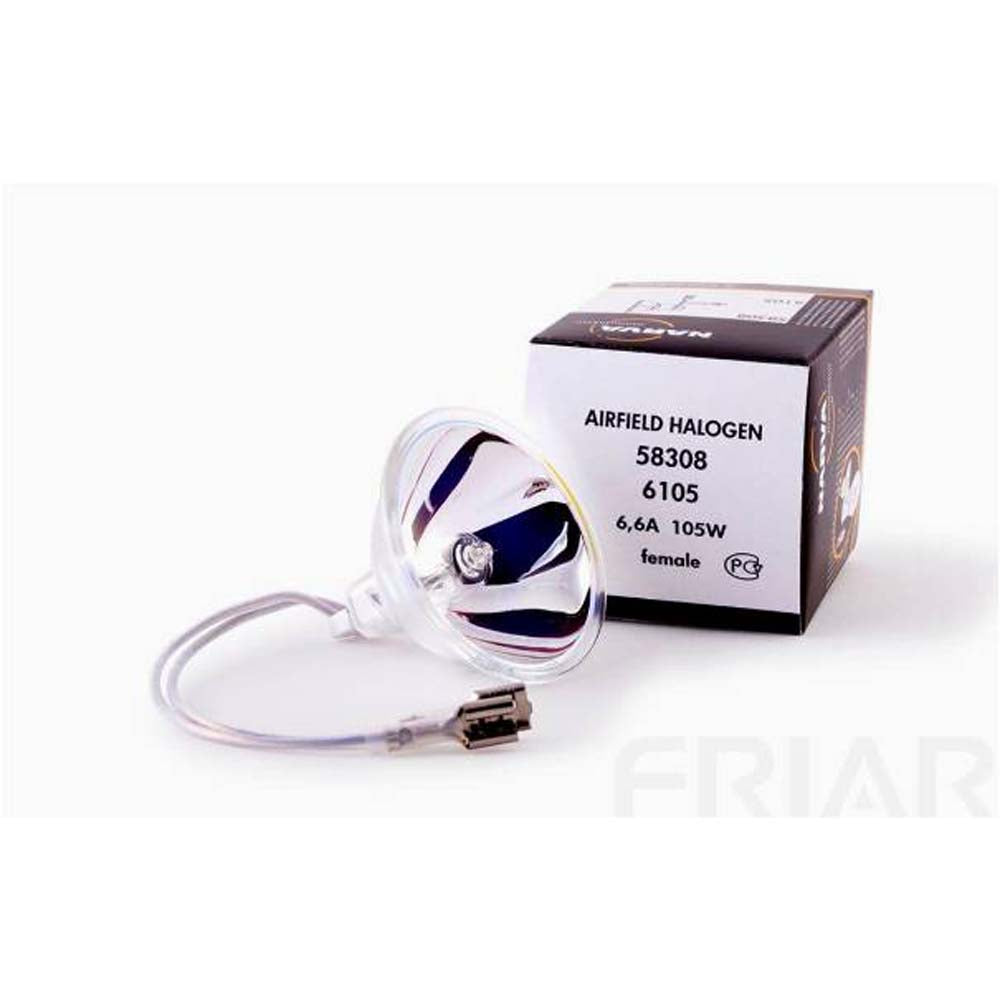

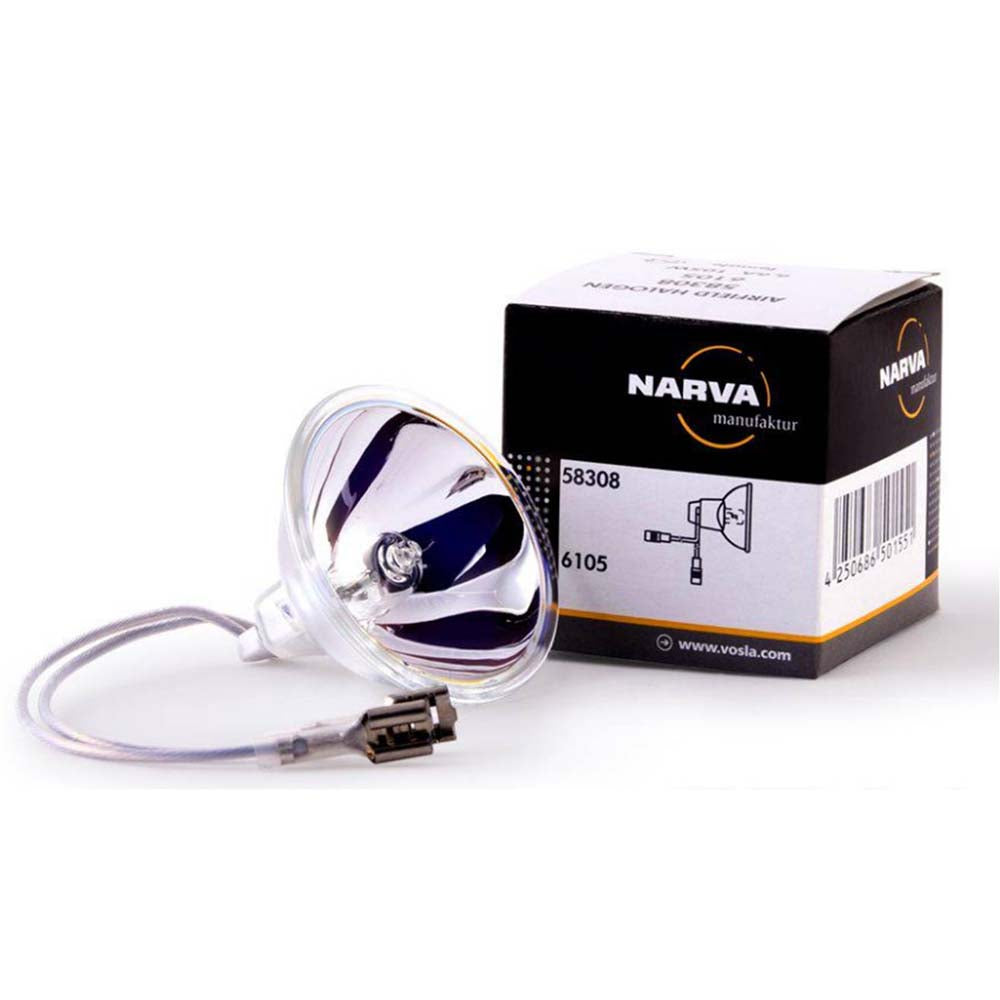

Narva 58308 - 6105 - 6.6A 105W Cable Flat Female Connectors Aircraft Bulb

Narva SKU: 58308-NARVA
$2499 $49.99 USD
832 in stock




Description

Narva 58308 - 6105 - 6.6A 105W Cable Flat Female Connectors Aircraft Bulb (Osram 58953 - 64339A)

The Narva Type 6105 Dichroic Halogen Airfield Lamp follows the company's world-class formula, offering a constant and powerful 105W lumen output combined with excellent optical adjustment and mercury-free design. The Narva 6105 has a female flat connector. It can be used in airfield approach, taxiways, runways, and stop bar lighting across the globe, thanks to full compliance with all international regulations.

Features:
- Socket: cable flat female
- Lifetime: 1000h
- High and constant luminous flux
- Strong light focus
- Axial light intensity (kcd): min. 30

Applications:
- Approach and threshold lights
- Runway and taxiway lights
- Airport Signs
- Stop bar and touchdown zone lights

Cross reference:
- Narva: 6105, 58308
- Sylvania: L2368 / 21498
- Osram: 64339A, 58953
- Philips: 6105
- Philips: 9230192859

Specs

Manufacturer Narva
Bulb Type Halogen Bulbs
Base Cable Flat Female Connector
Filament Type C-8
Rated Current (A) 6,6
Reflector type MR16
Wattage 105
Lumens 3000
Rated Life 1000 hrs

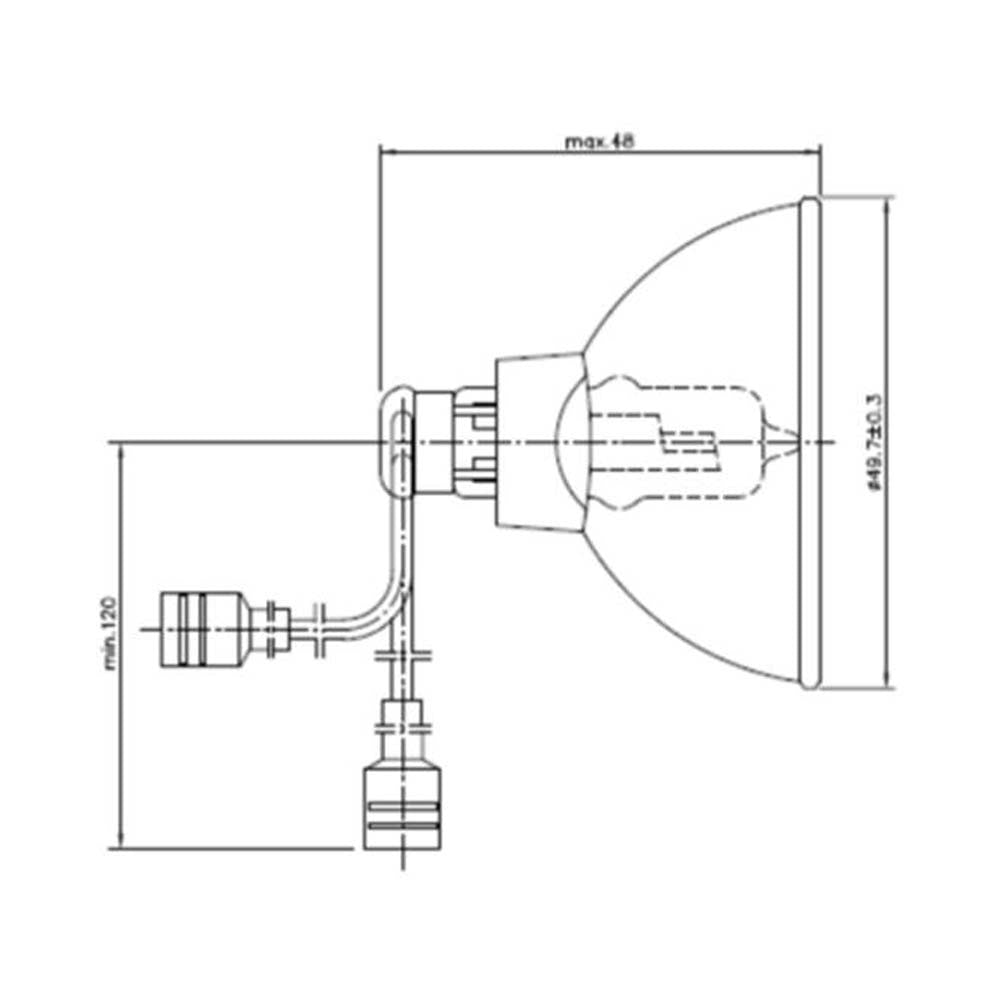

MOL (in) 1.77 (45 mm)
Diameter (in) 1.93 (49 mm)
Maximum allowed cable temperature (°C) 250
Maximum allowed pinch temperature (°C) 350
Burning Position S90
Part Number 58308
UPC 4250686501551
