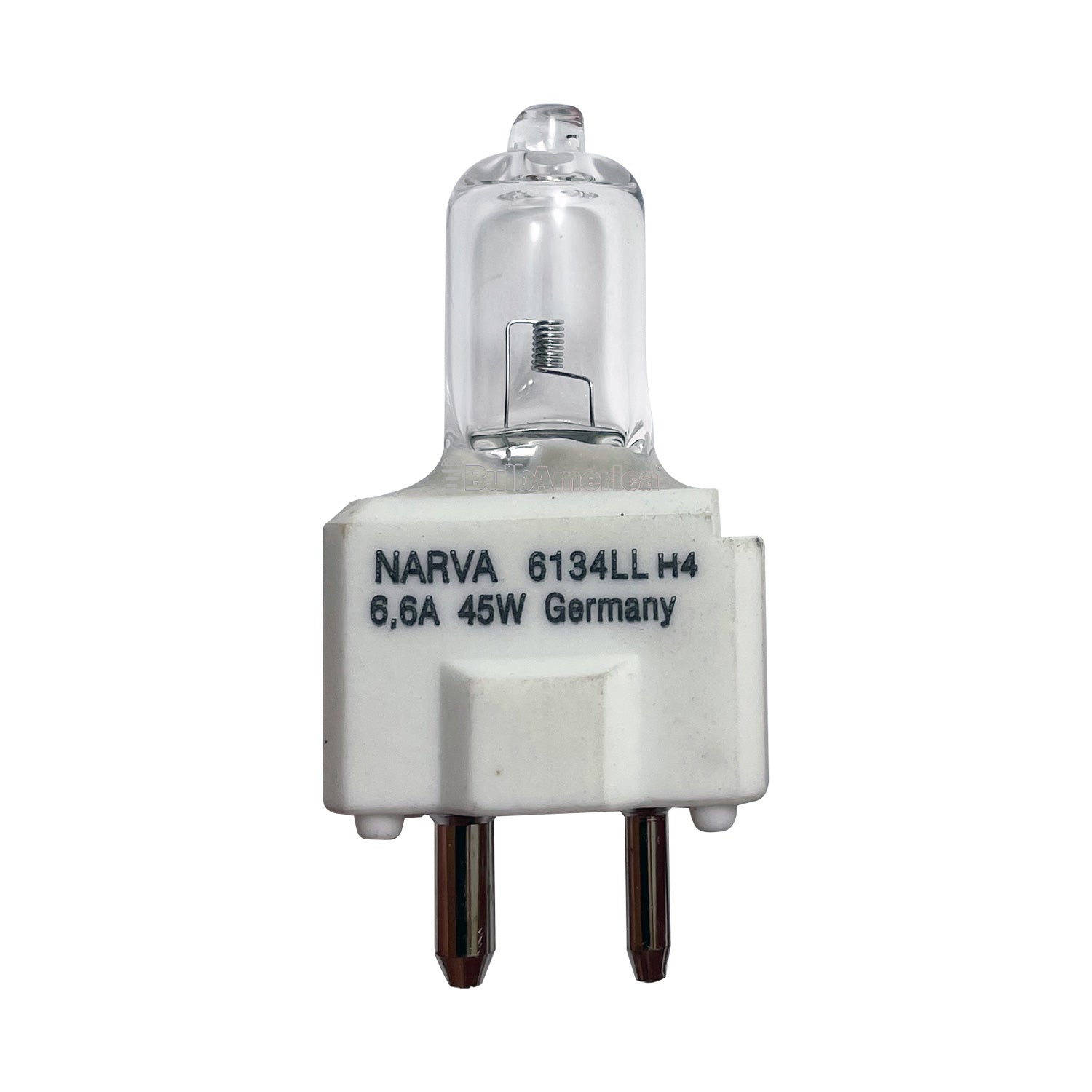

Narva 58325 EXM 6134 LL 6.6A 45W GZ9.5 Base Airfield Bulb

Narva Type 6134LL EXM Halogen Airfield Lamp is no exception. With a high lumen output of 45W and multiple installation options using a GZ9.5 bi-pin connector, the Type 6134LL ensures that airfields across the world are provided with a cost-effective option for installing approach, threshold and obstruction lighting solutions. The unit is designed to be completely mercury free to ensure compliance with international industry regulations,

Features:
- Made in Germany
- Type: 6134LL
- ANSI: EXM
- Current consumption: 6,6A
- Wattage: 45
- Lifetime: 2000h

Applications:
- Approach and threshold lights
- Runway and taxiway lights
- Airport Signs
- Stop bar and touchdown zone lights

Cross Reference:
- Philips: 6134 LL
- GE: EXM, 11482, 41541
- Sylvania: L2501 / 21686
- Crouse-Hinds: 40732
- Osram: 64320, 58846
- ANSI: EXM
- Philips: 923018685931

Manufacturer	NARVA
Origin	Made in Germany
Bulb Type	Halogen Bulbs

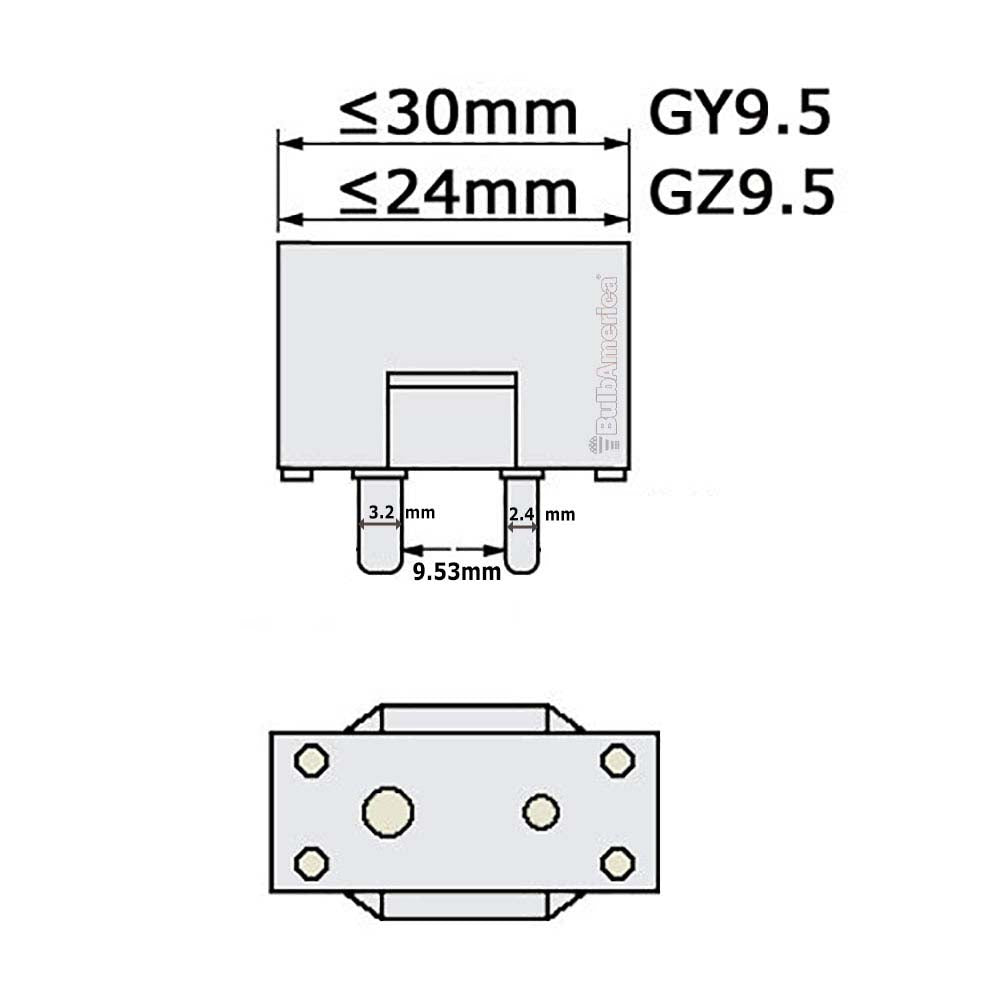

Base	GZ9.5
Filament Type	C-8
Rated Current (A)	6,6
Type	6134LL
Wattage	45
Lumens	800
Rated Life	2000 hrs
MOL (in)	1.85 (47 mm)
Diameter (in)	0.43 (11 mm)
Maximum allowed pinch temperature (C)	350
Burning Position	S
Part Number	58325
UPC	4250686502152

Manual:

58325 Data Sheet
