Narva 58374 EZL 6372 LL 6.6A 200W GZ9.5 Base Airfield Bulb

The Narva Type 6372LL EZL is an airfield lamp with a bi-pin GZ9.5 connector base. Despite the small size of the unit, the Type 6372LL is more than capable of emitting a vibrant light with a high lumen output of 200W, making it one of our highest performing airfield lamps. The Type 6372LL is often used within runway approach, threshold and obstruction lighting due to its compact design, and its mercury free construction makes it compliant with international regulations for use in airfields across the world.

Features:
- Type: 6372LL
- ANSI: EZL
- Current consumption: 6,6A
- Lifetime: 2000 hrs
- Lumens: 5000

Applications:
- Approach and threshold lights
- Runway and taxiway lights
- Airport Signs
- Stop bar and touchdown zone lights

Cross reference:
- PAPI: 20531
- GE: EZL
- Philips: 6372 - NARVA 58374 EZL
- Sylvania L2504 /21696
- OSRAM 58851, 58750, EZL/DL
- ANSI: EZL
- Philips: 923925085931

Manufacturer	Narva
Bulb Type	Halogen Bulbs

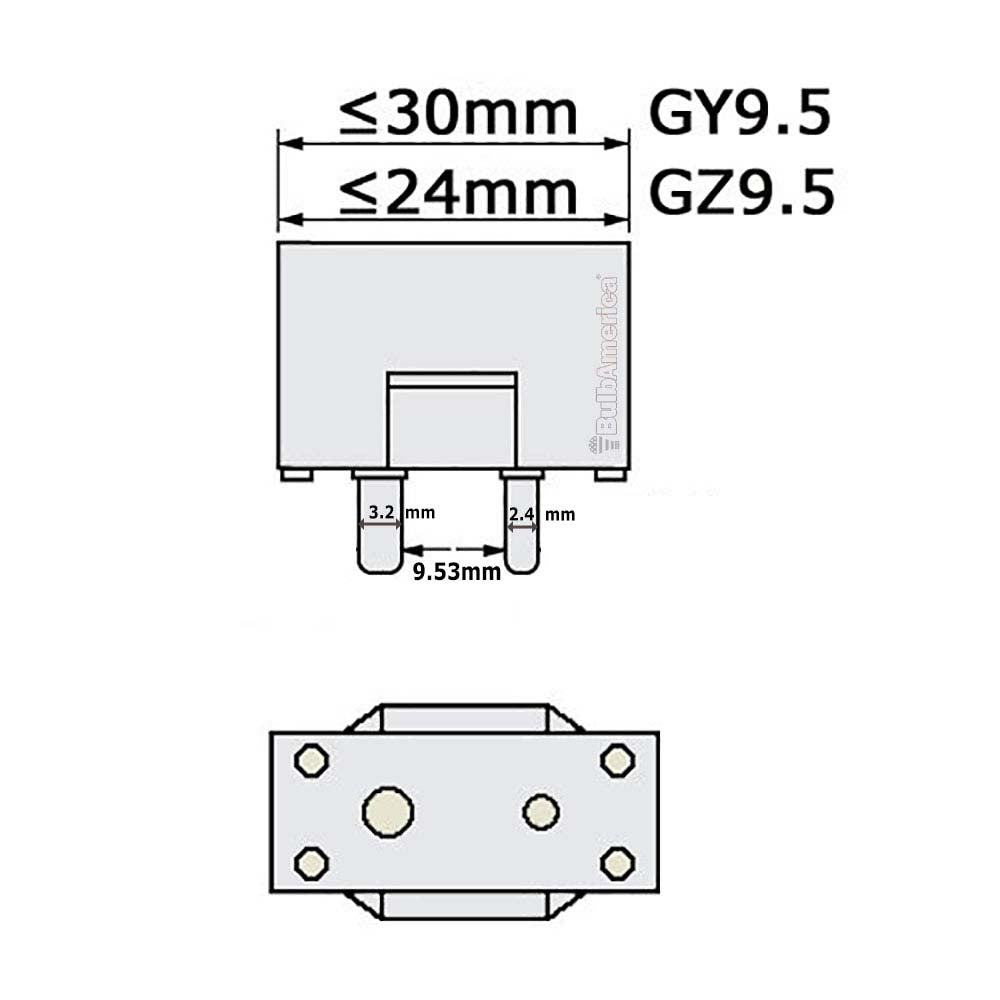

Base	GZ9.5
Filament Type	C-8
Rated Current (A)	6,6
Type	6372LL
Wattage	200
Color	Clear
Lumens	5000
Rated Life	2000 hrs
MOL (in)	2.44 (62 mm)
Diameter (in)	0.52 (13.15 mm)
Maximum allowed pinch temperature (°C)	350
Burning Position	S
Part Number	58374
UPC	4250686502244

Manual:

58374 Data Sheet
