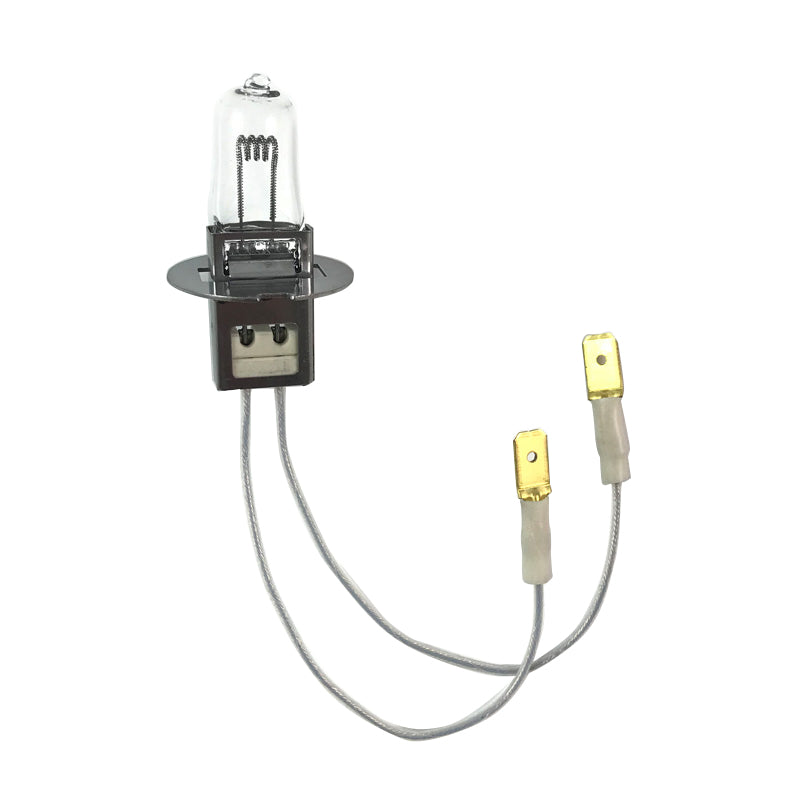

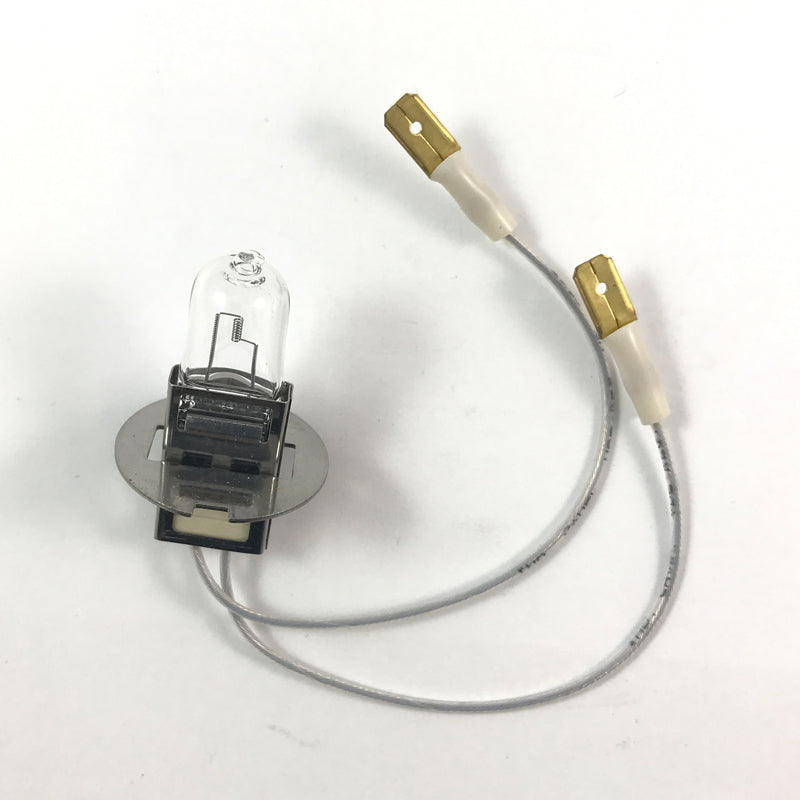

NARVA Type 6117 LL HTR - 200W 6.6A HLX PK30d Male Connector Airfield Bulb

The Narva 58377 - 6117 LL HTR - 6.6A 200W PK30d Male Connector is a current-controlled halogen lamp and a reliable solution for various airfield lighting needs, ensuring a safe and well-illuminated airport environment.

Cross Reference:
- ADB - 48A00772990-48-310
- ADB 48310
- AFL LAMP 200W / 6.6A / PK30D / MALE # J1/84Z,
- AMGLO MULTI - OCEM - 760-3080
- BPE - Runway Edge 60m
- Check&Care: HF-382
- Crouse-Hinds - 10047-2233
- Flight Light - 50-J1/8
- GE 80586
- GE 80590 Q6.6A200PK30d-f 043168805902
- Honeywell NSN
- KLS JF 6.6A 200W PK/MC
- NARVA 58376, NARVA 58377
- Narva 6117 LL
- Narva 58379 6117 LL HTR
- OSRAM 59081
- OSRAM 64382 HLX-C 200-15
- OSRAM 64382C
- PHILIPS 6117, Philips 6313
- Philips 9230176859XX, 9230 176 859
- PPL-C PAPI - Precision Approach Path Indicator
- TP 312

Applications:
- Approach and threshold lighting
- Runway and taxiway lighting
- Stopbar and touchdown zone visual light
- Approach slope indicator systems (e.g., PAPI)
- Visual guidance for holding strips and touchdown zones
- Airport signs

Features:
- High and constant lumen output
- Long lifetime
- Excellent optical adjustment
- Cement-free pre-focusing base
- Made in Germany

Manufacturer	NARVA
Country of Origine	GERMANY
Ordering Code	58379
Type	Type 6117 LL HTR
Bulb Type	Halogen Airfield Lamp
Rated Current	6.6AMP
Wattage	200W
Luminous Flux	4800Lumens
Lumen Maintenance	min. 95% after 1500hr
Average Lifetime	2000 hours
Base	PK30D w/Male Flat Connectors
Cable Lenght	min. 4.7in (120mm)

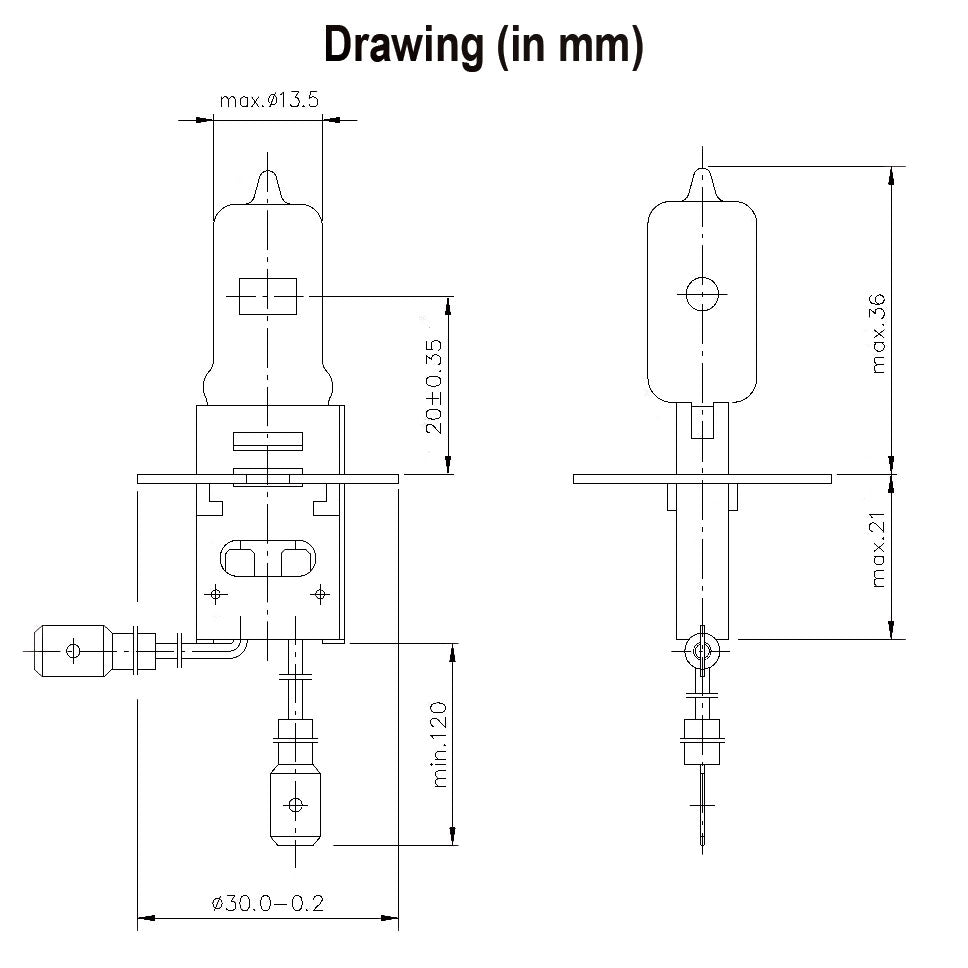

Maximum Overall Length	2.24 in (57mm)
Diameter	0.53 in (13.5mm)
Light Center Length	20mm
Maximum allowed cable temperature	480F (250C)
Maximum allowed pinch temperature	752F (400C)
Filament	CC-6
Lamp Finish	Clear
Burning Position	S90
Environmental remarks	Product doesn't contain lead or mercury and conforms with Directive 2011/65/EC

Manual:

NARVA 6117 LL HTR
