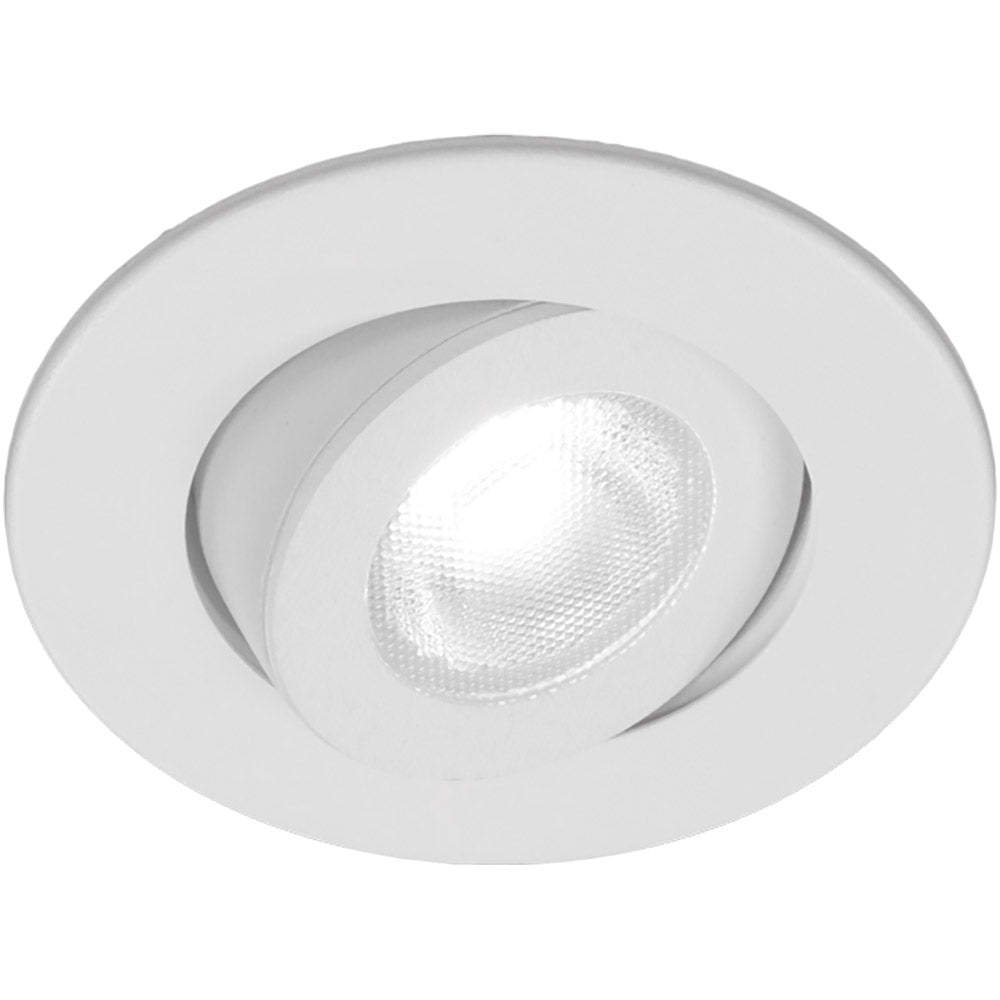

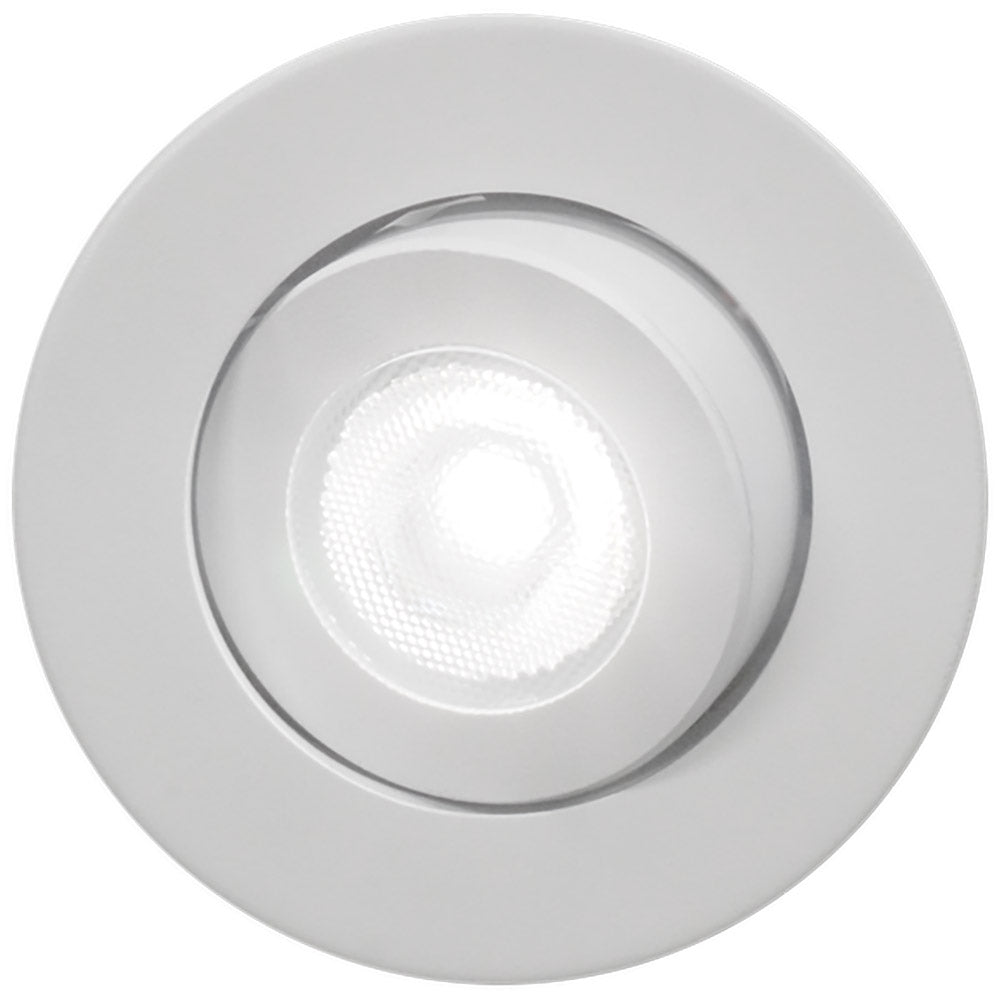

NICOR 2 in. LED Gimbal Downlight 3000 Soft White 700Lm with White Trim

NICOR 2 in. LED Gimbal Downlight 3000 Soft White 700Lm with White Trim
NICORs D-Series luminaires offer a comprehensive family of LED downlight fixtures that complement one another no matter your design space needs.
The new 2 family packs a punch with its small, elegant design along with its high lumen output. Not only does this family work perfect for accent and task lighting, but the lighting output allows you to bring general ambient lighting into a space with a very small, architectural exposure.
From LED color rendering and trim finishes to fixture performance, this series is a perfect choice for commercial, retail, institutional, and residential applications.
Warning
This product requires one of the following 2-inch NICOR Housing:
- 12200A-LED
- 12201-LED
- 12202R-LED
- 12300A-LED

Lumens: 700 Lumens
Watts: 8.57
CCT: 3000K
CRI: 92
Certifications: cULus
Energy Star
T24
- Cast aluminum trim routes heat away from electrical components
- This downlight is intended for use with NICOR 2 LED housings

Optical System
- TIR optic provides smooth, uniform light
- Beam spread options available: 37(standard)

Electrical
- COB with greater than 90 CRI and an R9 greater than 50
- Dimmable to 10% with most standard triac dimmers
- Operating temperature rating of 0F to 120F (-18C to 49C)
- Lifetime rated for greater than 35,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
- Fixture driver located on housing

Finish
- Exterior white powder coat finish

Installation
- Only compatible with NICORs 2 recessed housings: Available in remodel, new construction, and IC/ Airtight new construction

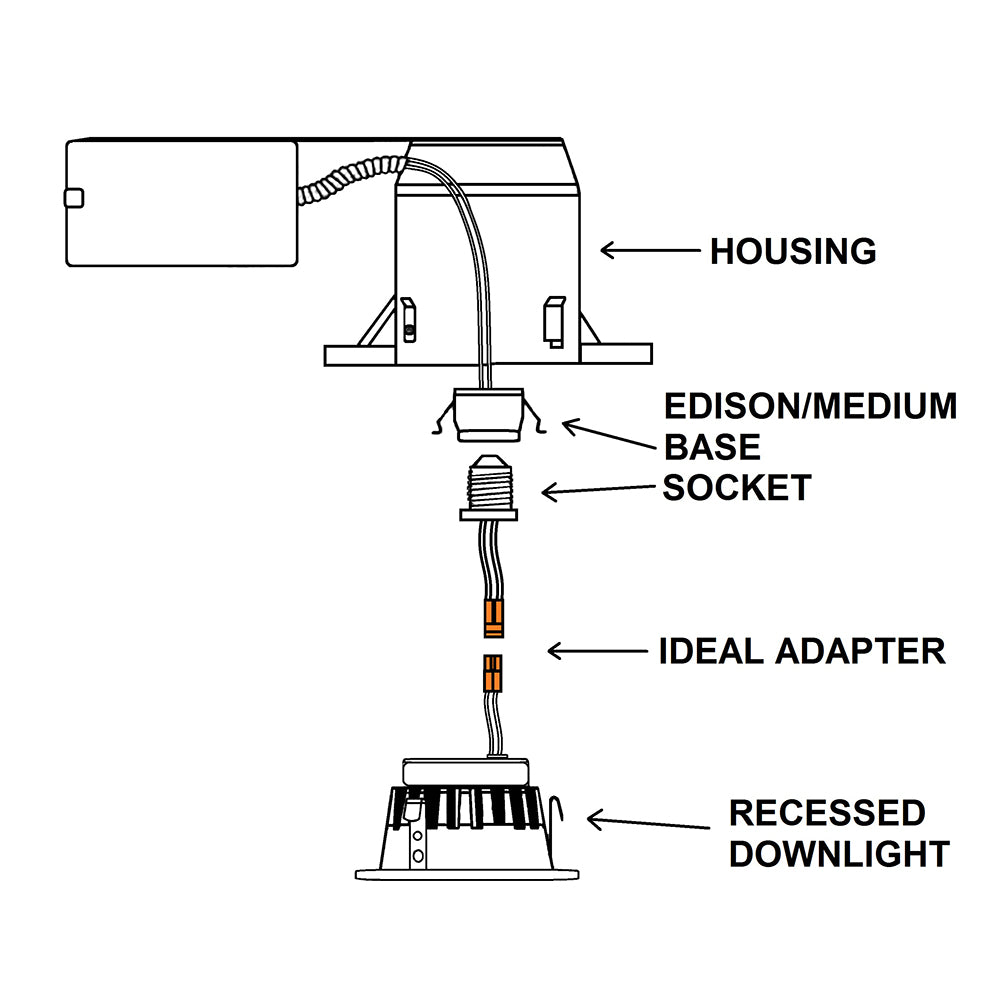

- Quick and easy installation with a snap-in IDEAL connector and friction clip mounting system

Product info
2Inch Recessed LED Brochure
2inch Gimbal Downlight Spec Sheet
