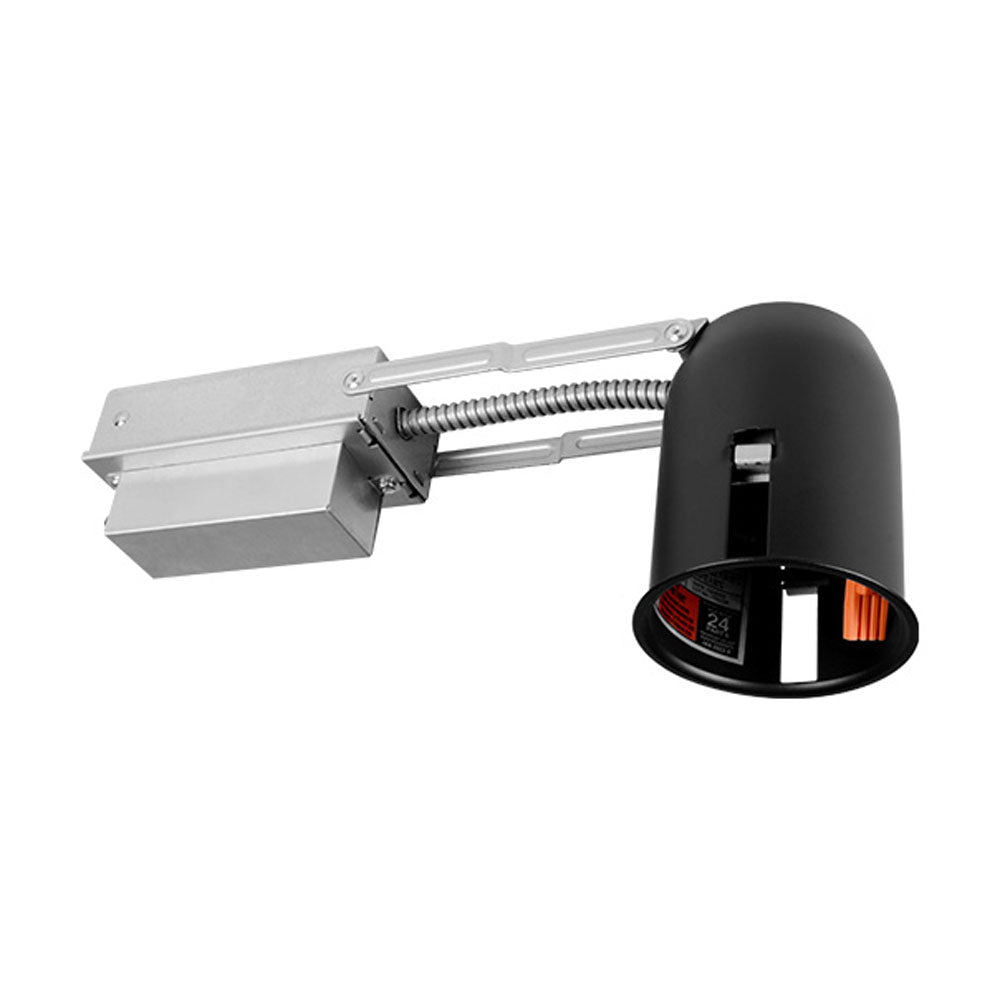

NICOR 2-in LED Recessed Housing

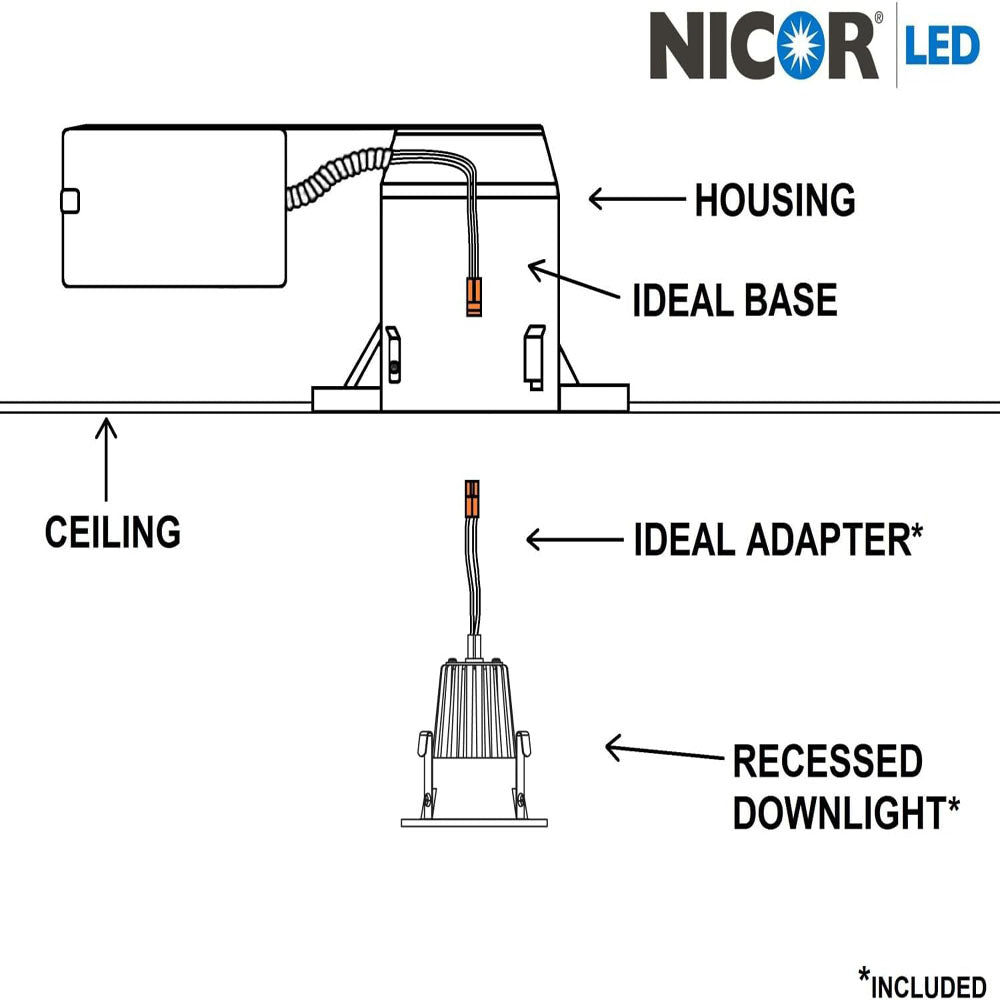

The 12202R-LED-ICAT features IDEAL connections that allows for quick, snap-in connection of NICOR 2-in D-series LED downlights. Suitable for residential and commercial applications.

Features:
- J-Box on articulated arm
- Triac dimmable LED driver is mounted directly to housing
- Only compatible with NICOR 2-in LED downlights: Available in round smooth, round baffle, square smooth, square baffle, adjustable gimbal and adjustable square
- Washington State Energy Code approved to meet restricted airflow requirements

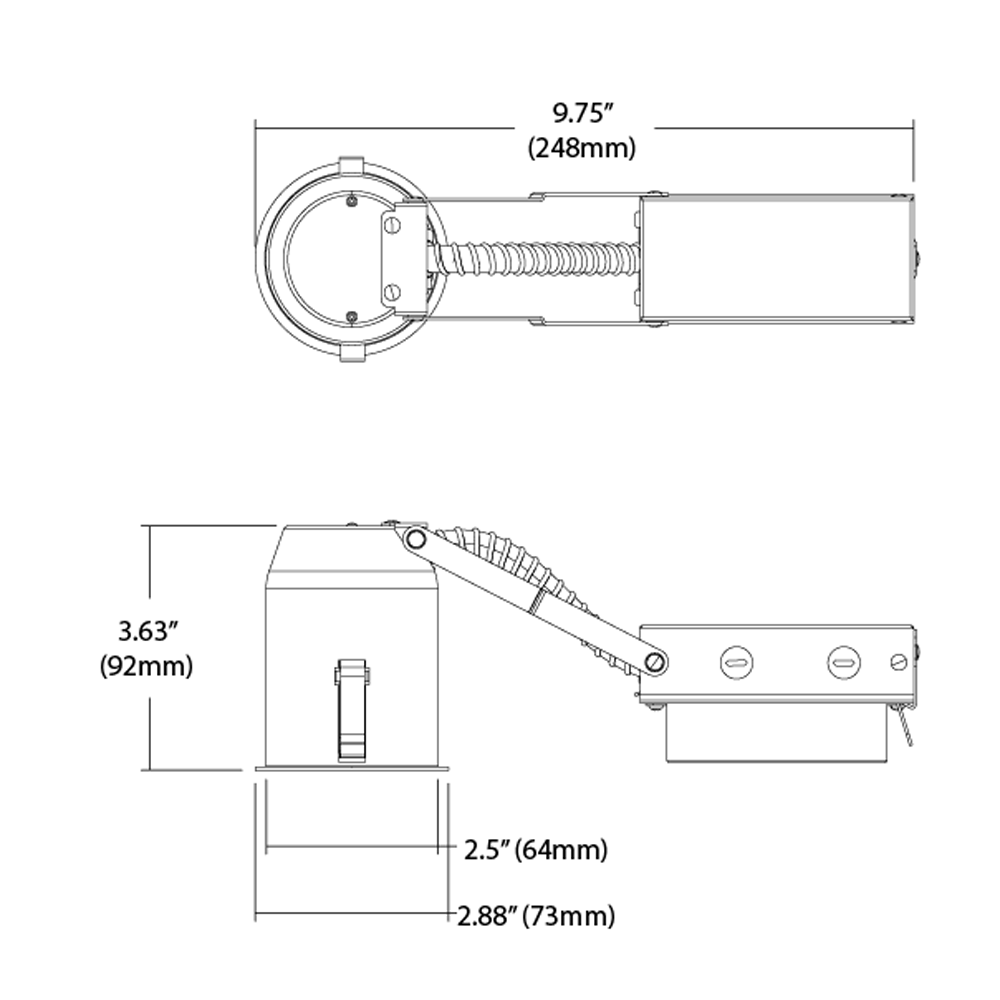

- 3.5-in height allows use in 2-in x 6-in joist construction

Model Number	12202R-LED-ICAT
Product Type	LED Recessed Housing
Size (in.)	2-in
Product Color	Black
Finish	Black
Wattage	9w
Voltage	120V
Dimmable	Dimmable, Integrated Driver
Application	Residential or Commercial
Bulb Type	LED
Bulbs Included	No
Listings/Certifications	UL Listed, cUL Listed, IC-Rated, Airtight, Damp Location
Warranty	1 Year Limited

Manual:

12202R-LED-ICAT Data Sheet
