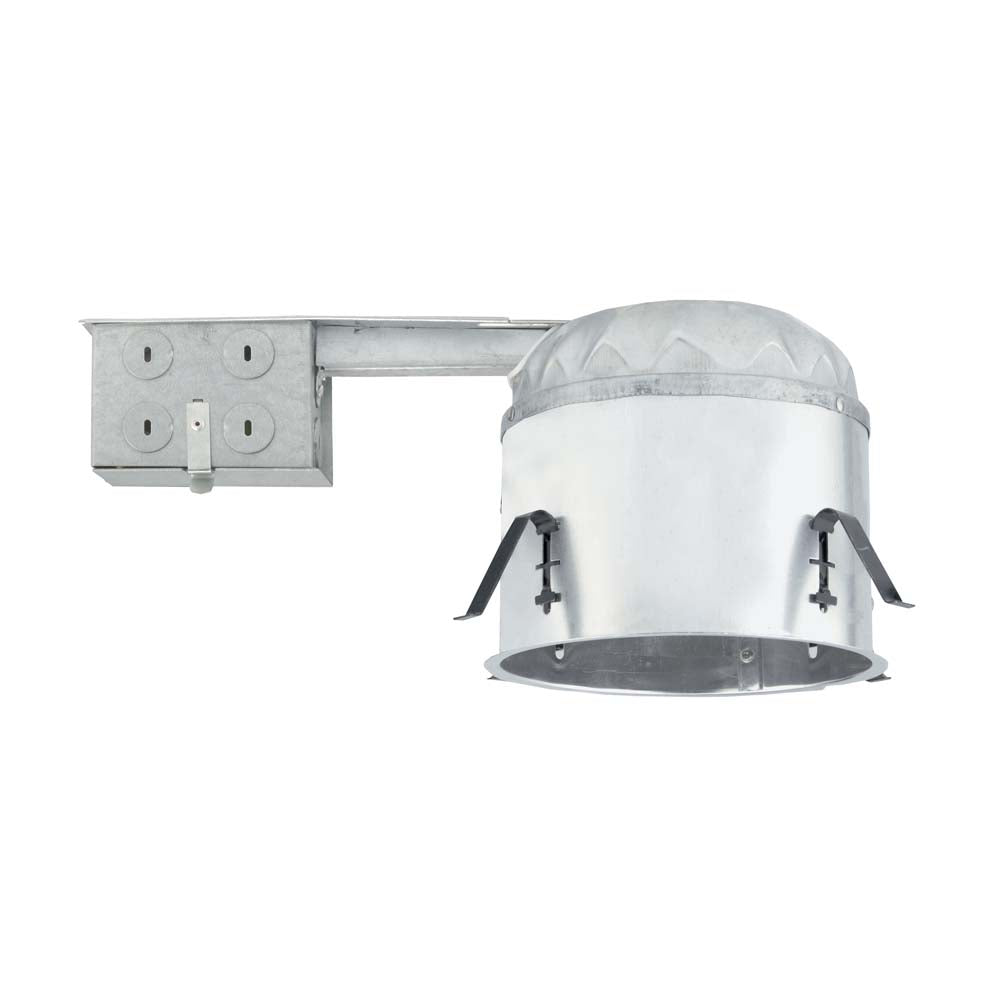

NICOR 6 in. Shallow Housing for New Construction Applications

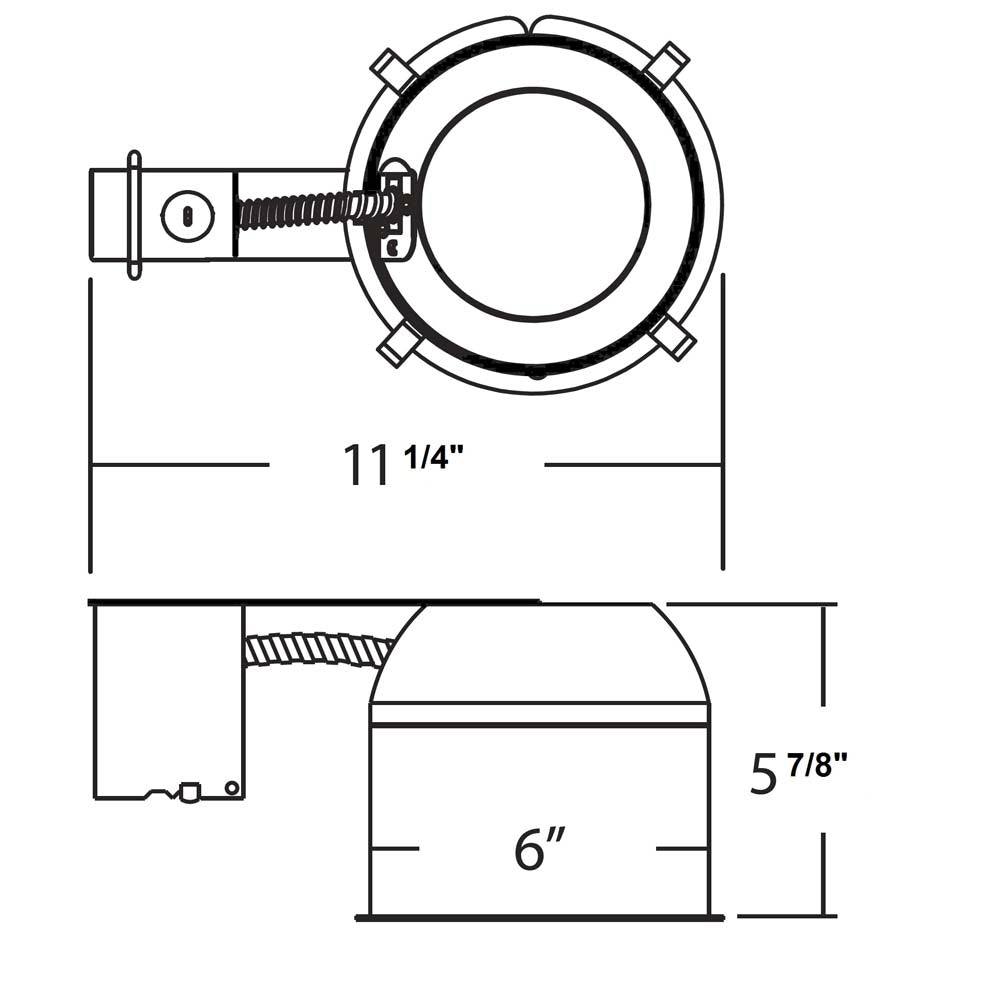

This 6 in. Non-IC rated housing is suitable for new construction in residential and commercial applications and requires 3" spacing from insulation. Integral thermal guards protect against improper lamping and misuse of insulation materials with lamp wattage ratings and apertures based off trim selection. The housing adjusts from 1/2" to 1 1/2" to accommodate ceiling thickness and its 5 3/4" height allows it to be used in 2" x 6" joist construction.

Features:
- The shallow housing is perfect for ceilings between floor levels.
- Suitable for new construction applications
- Aluminum construction provides greater heat dissipation
- Adjustable socket bracket assures proper and consistent lamp positioning
- Integral thermal protector guards against improper lamping and misuse of insulation materials
- NON-IC. Insulation must be kept a minimum of 3" from housing
- Supplied with 3 IDEAL push-in wire connectors
- Heavy-gauge hanger bars provide greater stability, allowing housing to be positioned at any point within a 24" joist span
- Listed for through branch circuit wiring and includes several 3/4" knockouts
- Protected by NICOR's 1 year limited warranty

Finish	Neutral
Product Type	New Construction Housing
Size	6"
Application	Residential
Watts	150W Max
Volt	120V
Bulbtype	Incandescent
Bulbs Included?	No
Recommended Bulb Type	Multiple
Adapter/Bulb Base	Medium/E26
Hardwire/Plug/Socket	Hardwire
Product Length	14.25
Product Width	12
Product Depth	5.75
Product Weight	2.4
Certification	UL Listed, cUL Listed, Non-IC, Shallow, UL Feed-Through, Damp-Location
Warranty	1 Year Limited

Manual:

Nicor 17004 Data Sheet
Nicor 17004 Installation Manual
