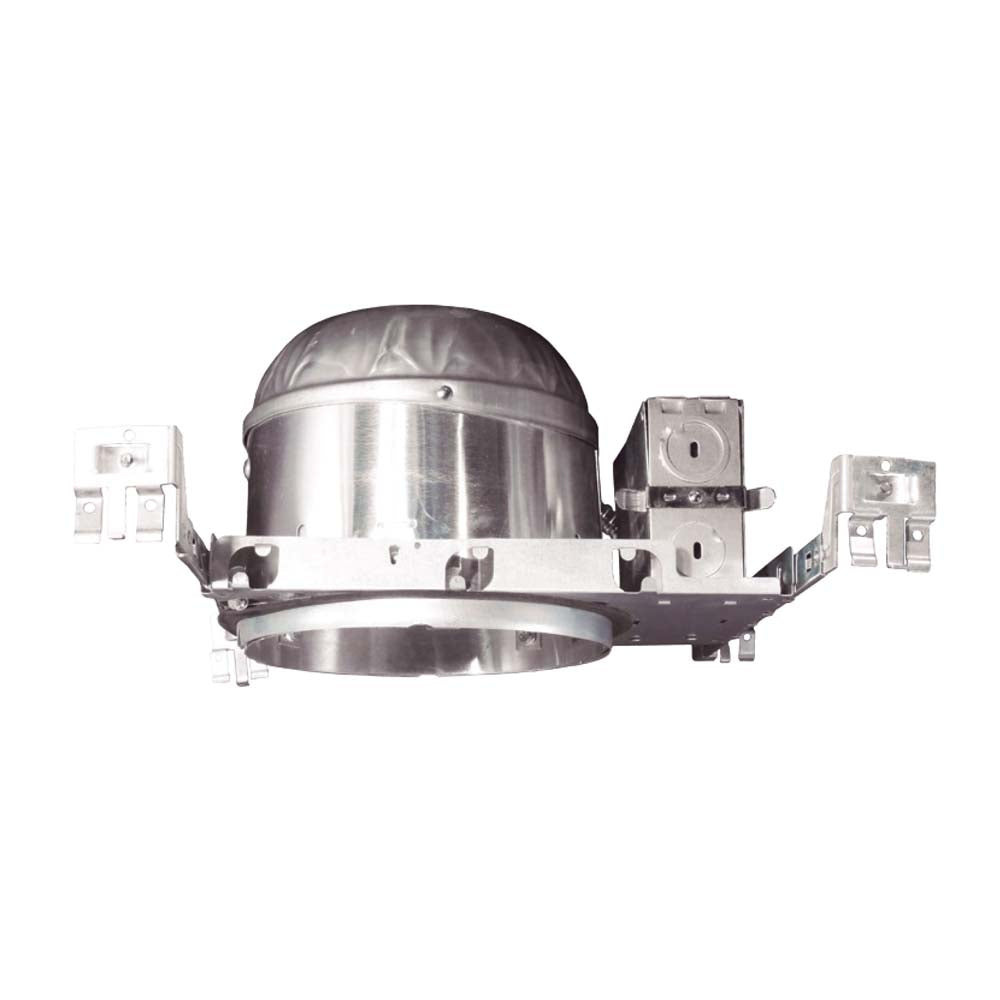

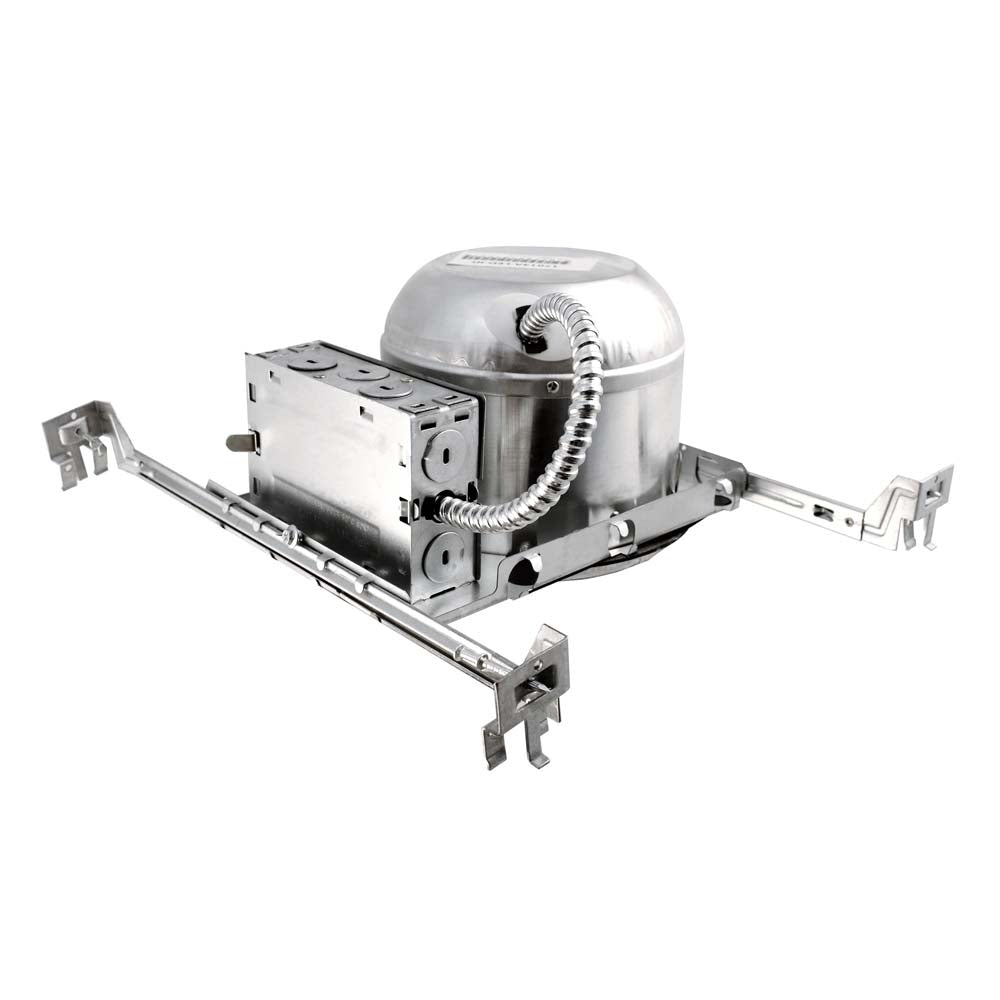

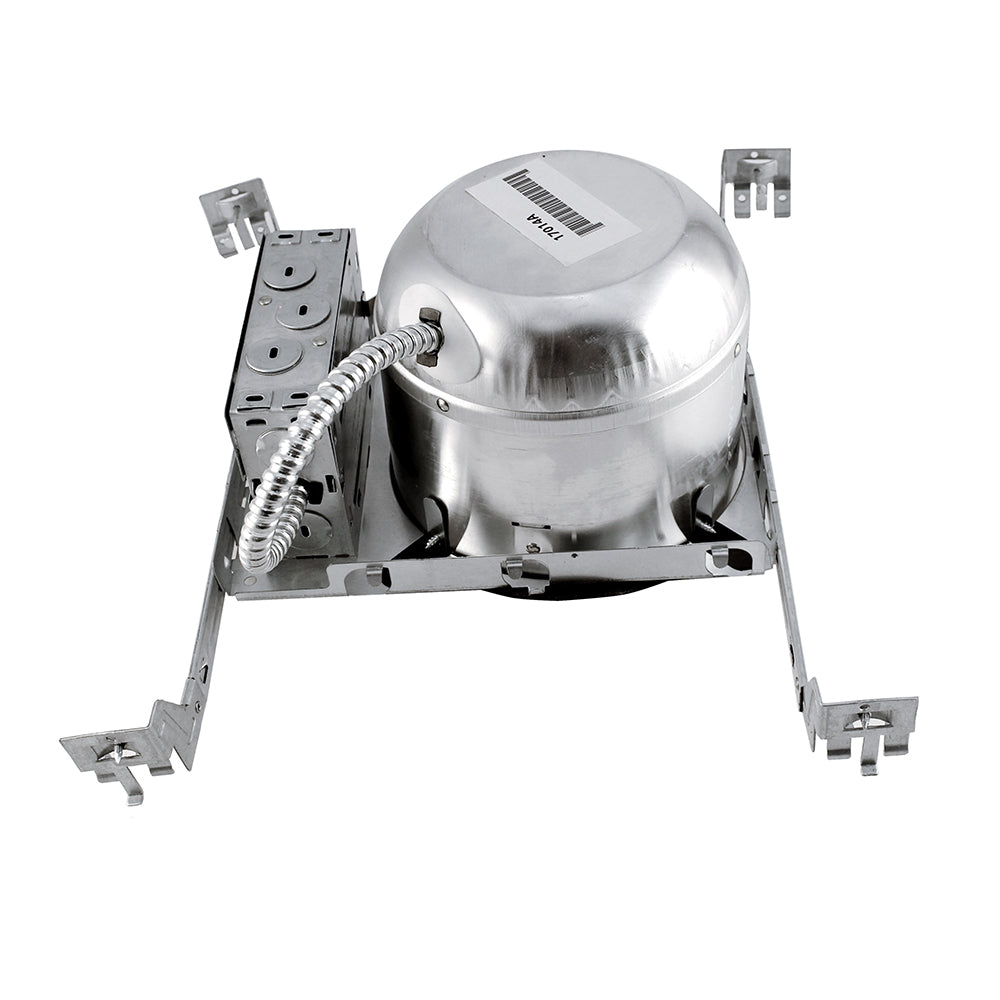

NICOR 6 in. Shallow Housing for New Construction Applications, IC-Rated

This NICOR 17014A is an Aluminum 6-inch New Construction Housing designed for 6-inch LED Recessed Downlights, LED Retrofits, and traditional trims of all sorts. The Airtight and Insulation-Contact Rated Housing (IC Allows for direct contact with insulation) helps keep your home insulated and Energy Efficient. It’s suitable for residential and commercial applications and features Integral Thermal Guards that protect against overheating (usually due to using an incorrect wattage or bulb). The 17014A is also Wet-Location rated when used with Wet-Location rated downlights and trims. The housing adjusts from 0.5 to 1.5-inches to accommodate ceiling drywall thickness. The 5.75-inch housing height allows it to be used in 2 x 6-inch joist construction. Comes protected with NICOR’s 1 Year Limited Warranty.

Features:
- Suitable for new construction applications
- Airtight rating provides for additional insulation.
- Aluminum construction provides greater heat dissipation
- Integral thermal protector guards against improper lamping and misuse of insulation materials
- IC rated. Suitable for direct contact with insulation
- Adjustable socket bracket assures proper and consistent lamp positioning
- Heavy-gauge hanger bars provide greater stability, allowing housing to be positioned at multiple points
- Supplied with 3 IDEAL push-in wire connectors
- Listed for through branch circuit wiring and includes several 3/4 knockouts
- Protected by NICOR's 1 year limited warranty.

Finish	Neutral
Product Type	New Construction Housing
Size	6"
Application	Residential
Watts	150W Max
Volt	120V
Bulbtype	Incandescent
Bulbs Included	No
Recommended Bulb Type	BR40/PAR38
Adapter/Bulb Base	Medium/E26
Hardwire/Plug/Socket	Hardwire

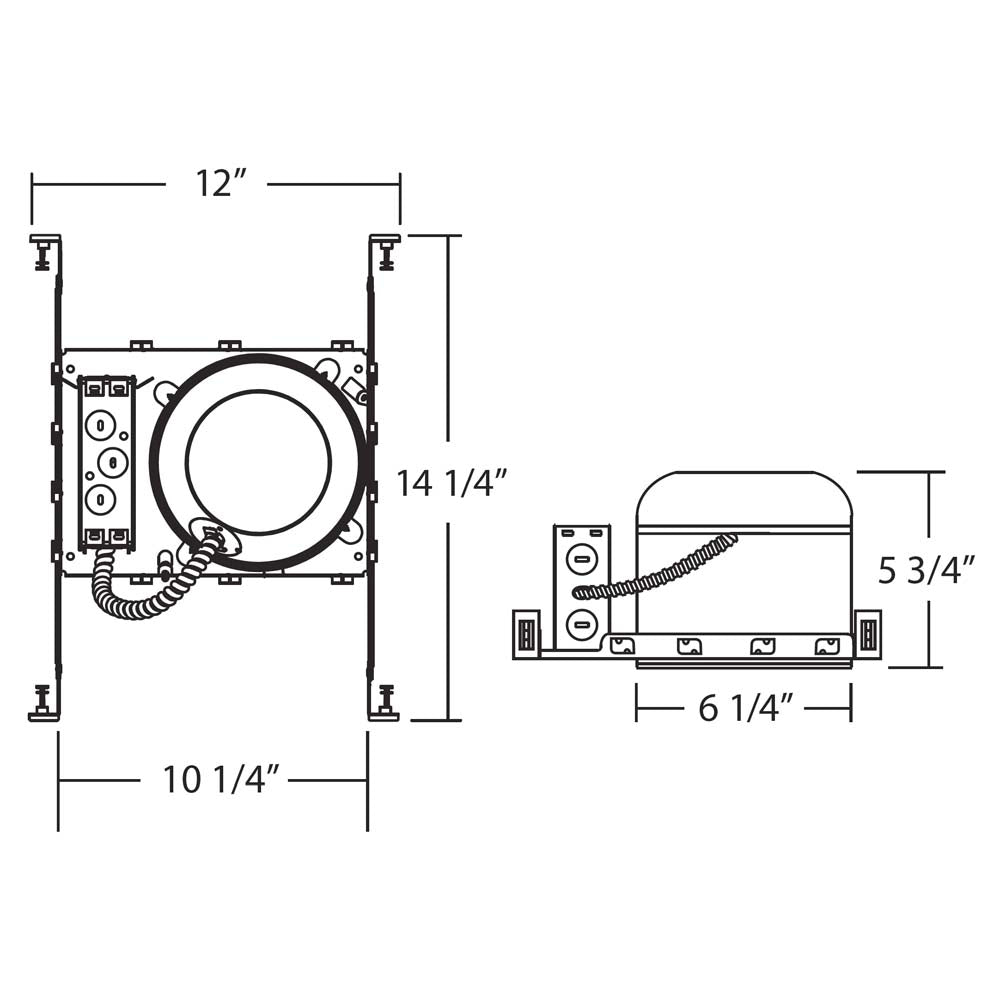

Product Length	15.75
Product Width	12
Product Depth	5.5
Product Weight	2.13
Certification	UL Listed, cUL Listed, IC-Rated, Airtight, Shallow, UL Feed-Through, Damp-Location
Warranty	1 Year Limited

Manual:

Nicor 17014A Data Sheet
Nicor 17014A Installation Manual
