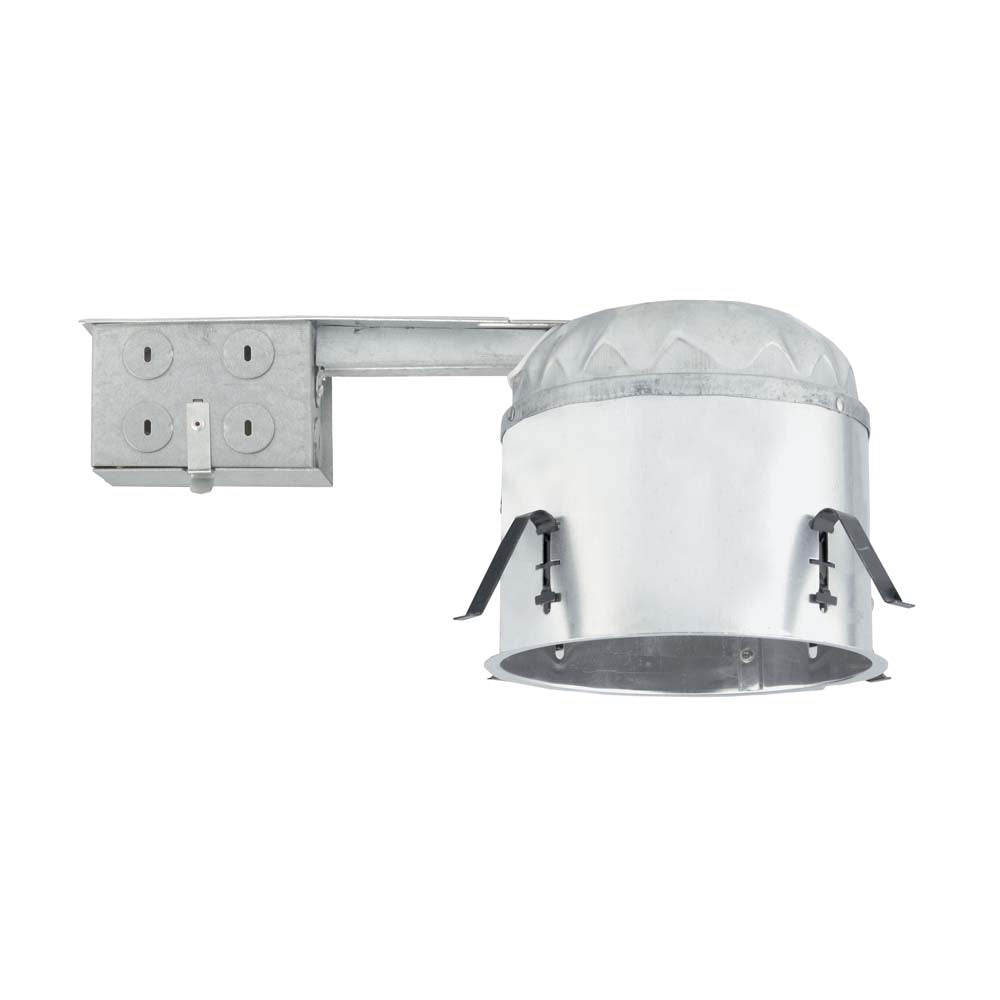

NICOR 6 in. Shallow Housing for Remodel Applications

This NICOR 17004R is an Aluminum 6-inch Shallow Remodel Housing designed for 6-inch LED Recessed Downlights, LED Retrofits, and traditional trims of all sorts. It’s suitable for residential and commercial applications and features Integral Thermal Guards that protect against overheating (usually due to using an incorrect wattage or bulb). The 17004R adjusts from 0.5 to 1.5-inches to accommodate ceiling drywall thickness. The 5.75-inch housing height allows it to be used in 2 x 6-inch joist construction. Comes protected with NICOR’s 1 Year Limited Warranty.

Features:
- Suitable for existing construction and remodel applications
- Aluminum construction provides greater heat dissipation
- The shallow housing is perfect for ceilings between floor levels.
- Integral thermal protector guards against improper lamping and misuse of insulation materials
- NON-IC. Insulation must be kept a minimum of 3 from housing
- Adjustable socket bracket assures proper and consistent lamp positioning
- Listed for through branch circuit wiring and includes several 3/4 knockouts
- Supplied with 3 IDEAL push-in wire connectors
- For line voltage applications
- Protected by NICOR's 1 year limited warranty

Finish	Neutral
Product Type	Remodel Housing
Size	6 inch
Application	Residential
Watts	150W Max
Volt	120V
Bulbtype	Incandescent
Bulbs Included?	No
Recommended Bulb Type	BR40/PAR38
Adapter/Bulb Base	Medium/E26
Hardwire/Plug/Socket	Hardwire

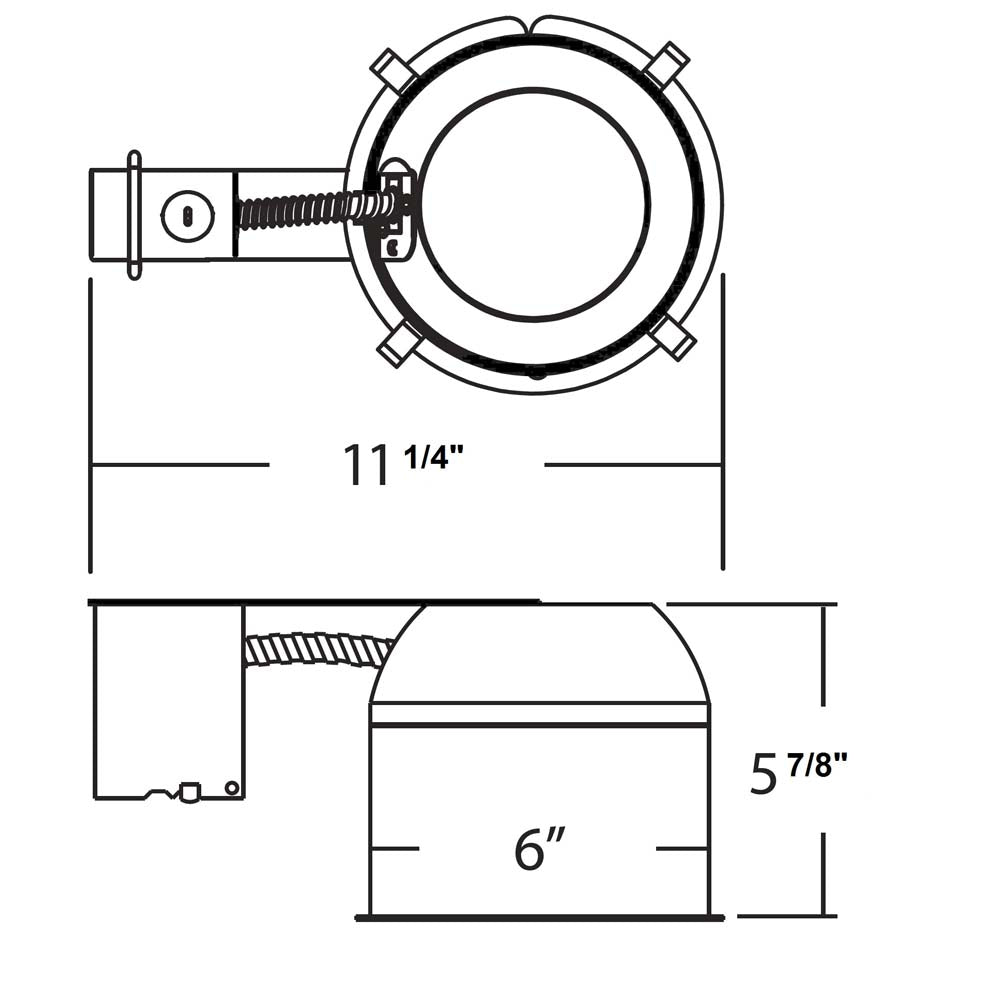

Product Length	13.25
Product Width	6.9
Product Depth	5.5
Product Weight	1.8
Certification	UL Listed, cUL Listed, Non-IC, Shallow, UL Feed-Through, Damp-Location
Warranty	1 Year Limited

Manual:

Nicor 17004R Data Sheet
Nicor 17004R Installation Manual
