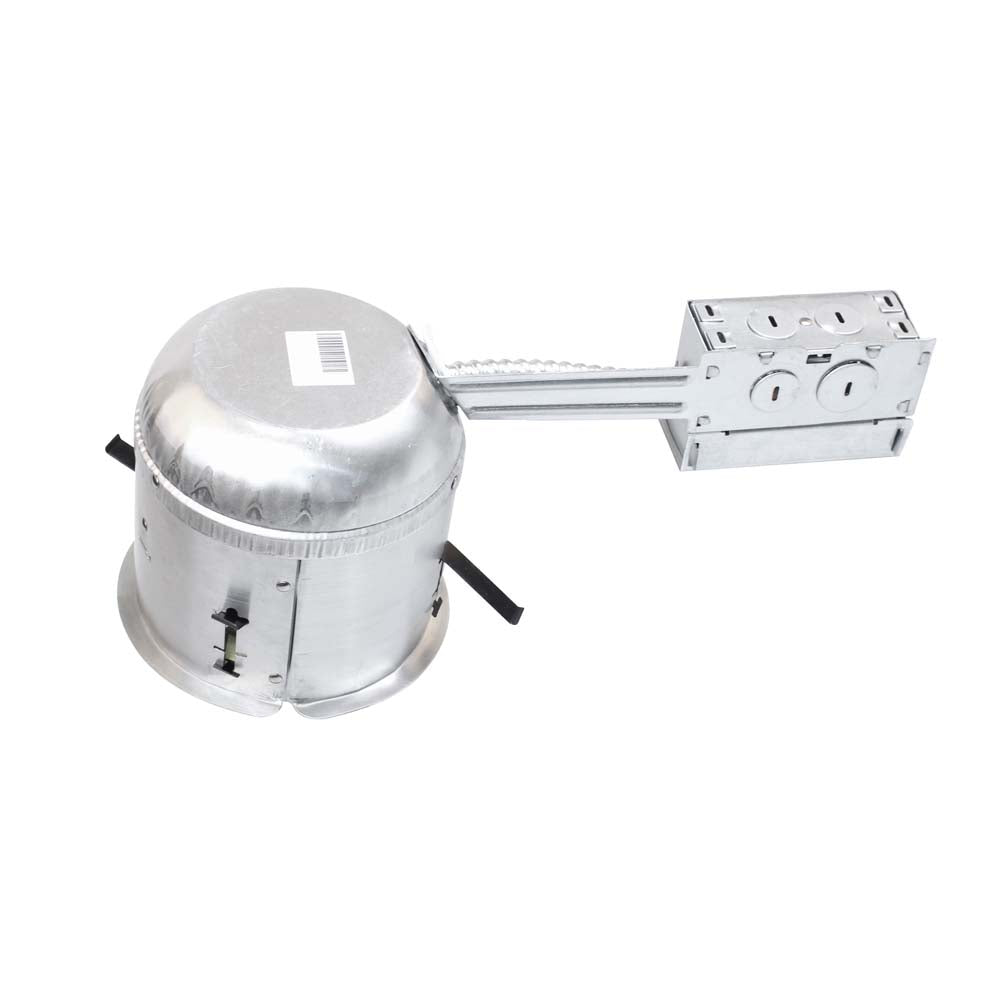

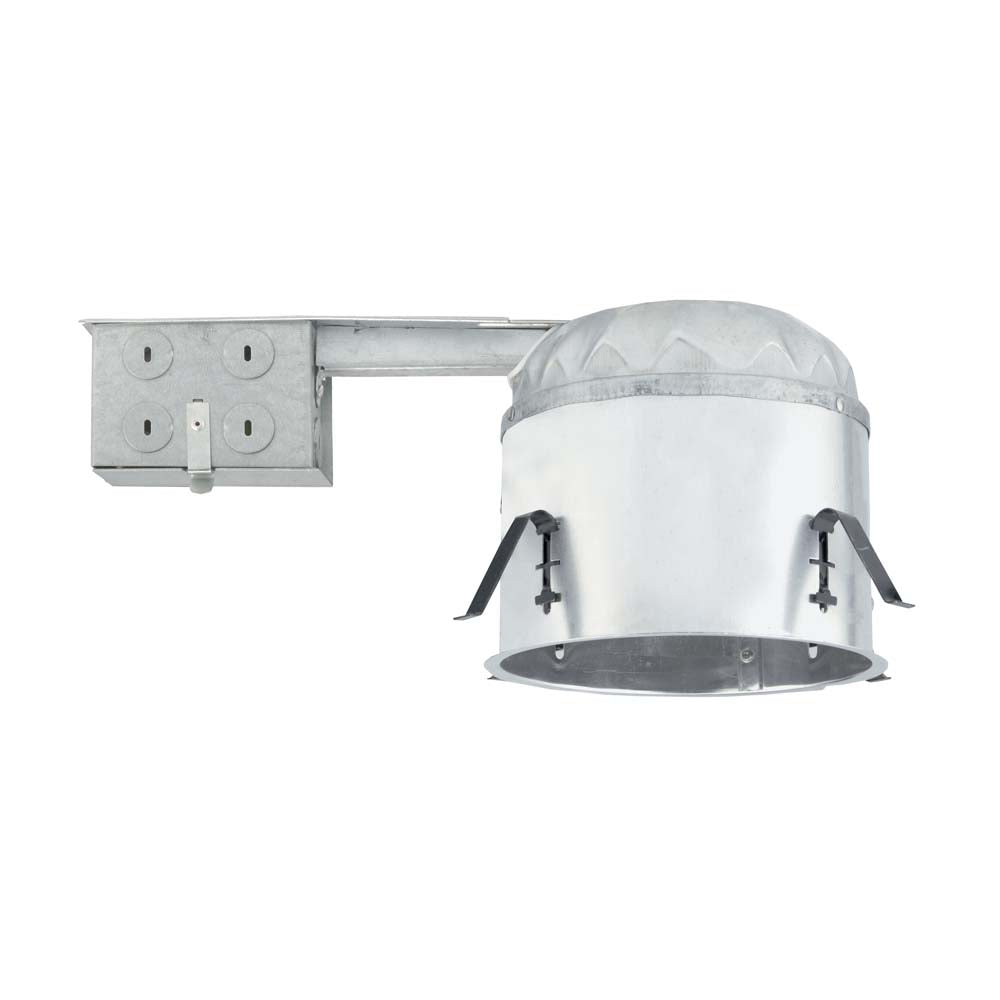

NICOR 6 in. Shallow Housing for Remodel Applications, IC-Rated

This NICOR 17014AR is an Aluminum 6-inch Remodel Housing designed for 6-inch LED Recessed Downlights, LED Retrofits, and traditional trims of all sorts. The Airtight and Insulation Contact Rated Housing (IC Allows for direct contact with insulation) helps keep your home insulated and Energy Efficient. It’s suitable for residential and commercial applications and features Integral Thermal Guards that protect against overheating (usually due to using an incorrect wattage or bulb). The 17014AR is also Wet-Location rated when used with Wet-Location rated downlights and trims. The housing adjusts from 0.5 to 1.5-inches to accommodate ceiling drywall thickness. The 5.75-inch housing height allows it to be used in 2 x 6-inch joist construction. Comes protected with NICOR’s 1 Year Limited Warranty.

Features:
- Suitable for existing construction and remodel applications
- Airtight rating provides for additional insulation.
- Aluminum construction provides greater heat dissipation
- Integral thermal protector guards against improper lamping and misuse of insulation materials.
- Adjustable socket bracket assures proper and consistent lamp positioning.
- Airtight housing limits exchange of air between ceiling plenum and heated/cooled areas
- Supplied with 3 IDEAL push-in wire connectors
- IC rated. Suitable for direct contact with insulation
- Listed for through branch circuit wiring and includes several 3/4 knockouts
- Protected by NICOR's 1 year limited warranty

Finish	Neutral
Product Type	Remodel Housing
Size	6"
Application	Residential
Watts	150W Max
Volt	120V
Bulbtype	Incandescent
Bulbs Included	No
Recommended Bulb Type	BR40/PAR38
Adapter/Bulb Base	Medium/E26
Hardwire/Plug/Socket	Hardwire

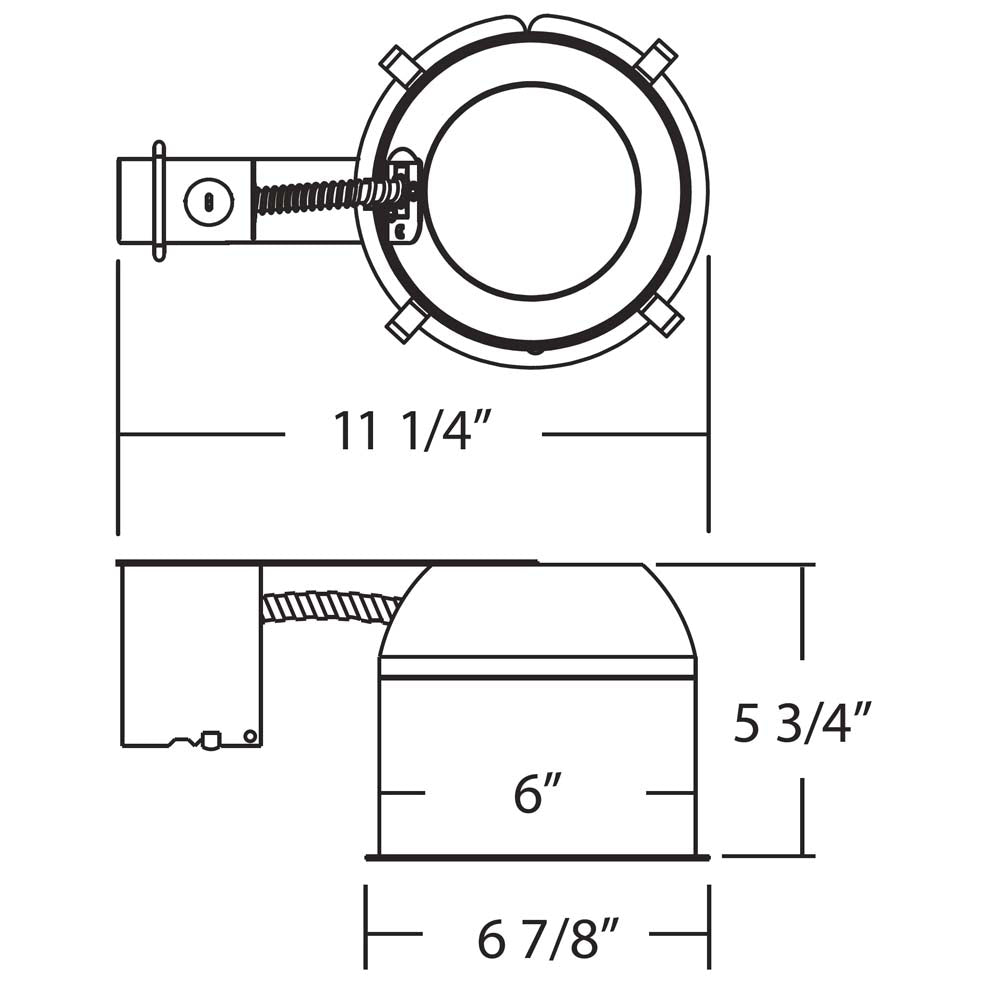

Product Length	11.25
Product Width	6.8
Product Depth	5.75
Product Weight	1.4
Certification	UL Listed, cUL Listed, IC-Rated, Airtight, Shallow, UL Feed-Through, Damp-Location
Warranty	1Year Limited

Manual:

Nicor 17014AR Data Sheet
Nicor 17014AR Installation Manual
