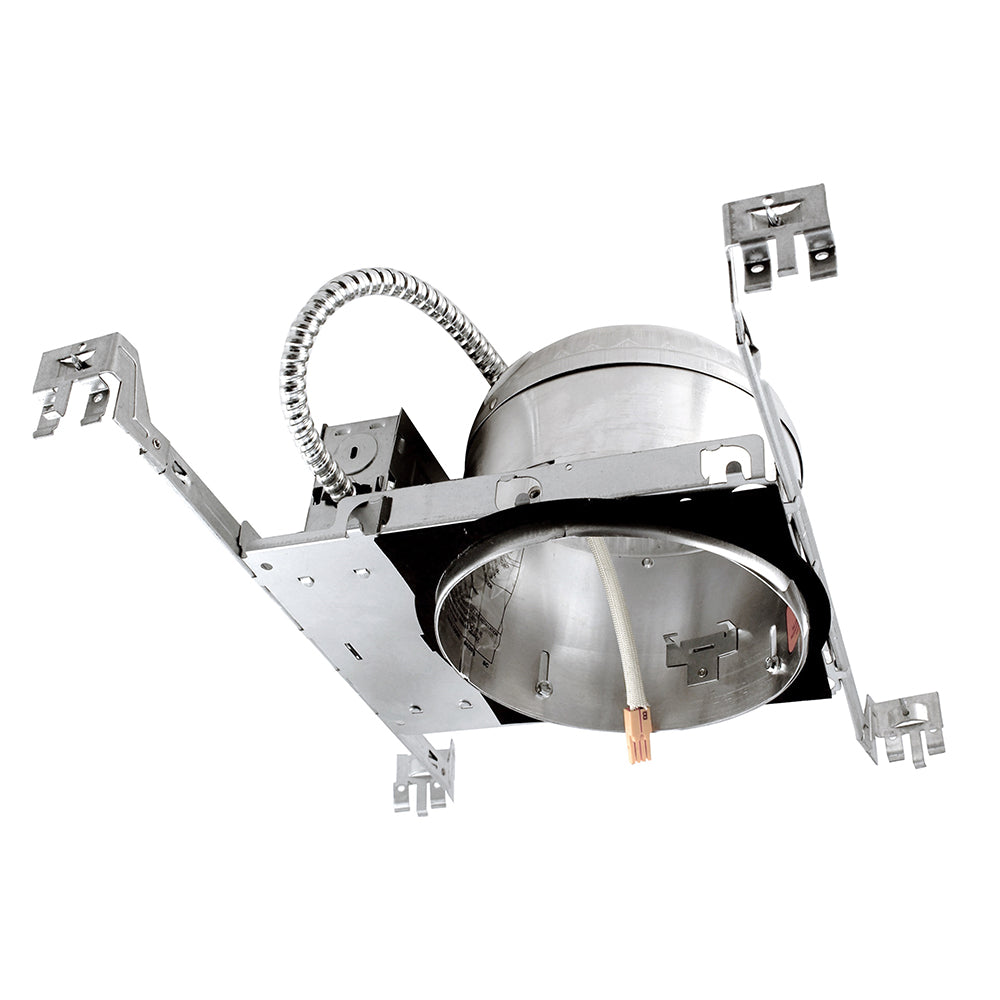

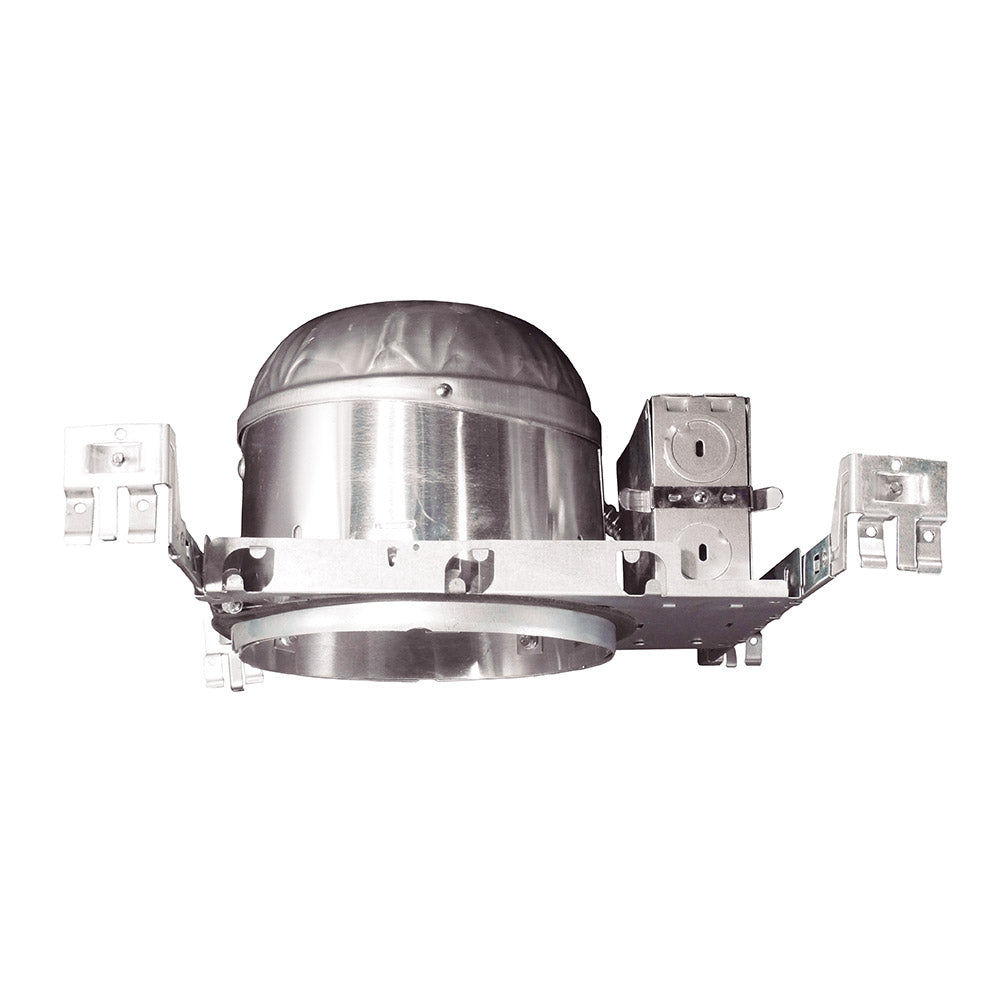

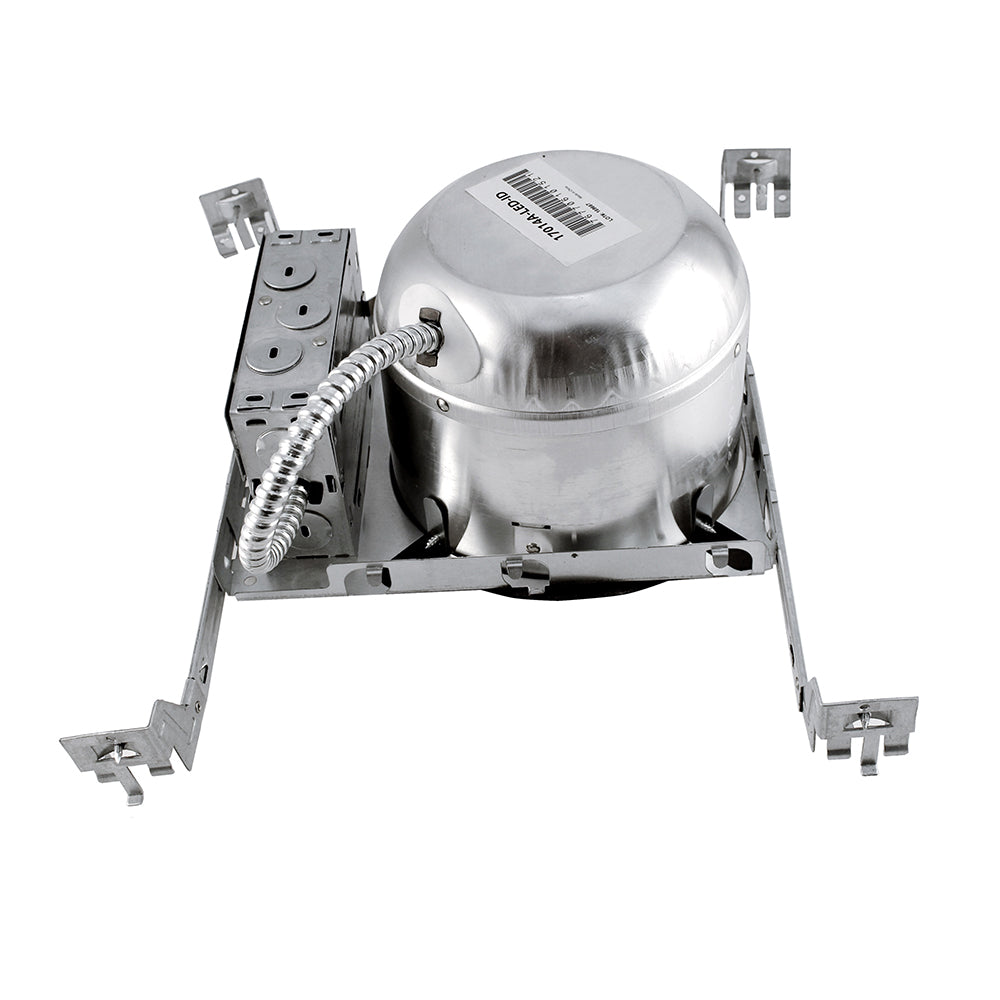

NICOR 6 in. Shallow LED Housing for New Construction Applications

Nicor SKU: 17014A-LED-ID

Nicor

$1999 $29.99

1265 in stock

Description

This six-inch IC rated housing is suitable for new construction in residential and commercial applications and for direct contact with insulation. The IDEAL base allows for quick, snap-in connection of NICOR D-series LED downlights. The airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas. Integral thermal guards protect against improper lamping and with lamp wattage ratings and apertures based off trim selection. The housing adjusts from 1/2 to 1 1/2 to accommodate ceiling thickness and its 5 3/4 height allows it to be used in 2 x 6 joist construction.

Features:
- Aluminum construction provides greater heat dissipation.
- Airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas.
- Integral thermal protector guards against improper lamping and misuse of insulation materials.
- Adjustable socket bracket assures proper and consistent lamp positioning.
- Housing is secured to plaster frame with screws and can be removed for access to junction box.
- Housing adjusts from 1/2 to 1 1/2 to accommodate ceiling thickness.
- Four pryouts with integral strain relief simplify Romex installation.
- Four double-headed captive nails provide for ease of installation.
- Bars can be repositioned 90 on plaster frame without tools.
- Protected by NICOR's 1 year limited warranty

Specs

Specs:
Finish: Neutral
Product Type: New Construction Housing
Size: 6"
Application: Residential
Watts: 150W Max
Volt: 120V
Bulbtype: LED
Bulbs Included?: No
Recommended Bulb Type: LED
Adapter/Bulb Base: IDEAL
Hardwire/Plug/Socket: Hardwire
Product Length: 15.75
Product Width: 12
Product Depth: 5.5
Product Weight: 2.13
Limited Manufacturer Warranty (Year): 1

Certification:
-UL/cUL
- Energy Star Qualified: No
- Tilte 24: YES
-IC-Rated
-Airtight
-Damp Rated
