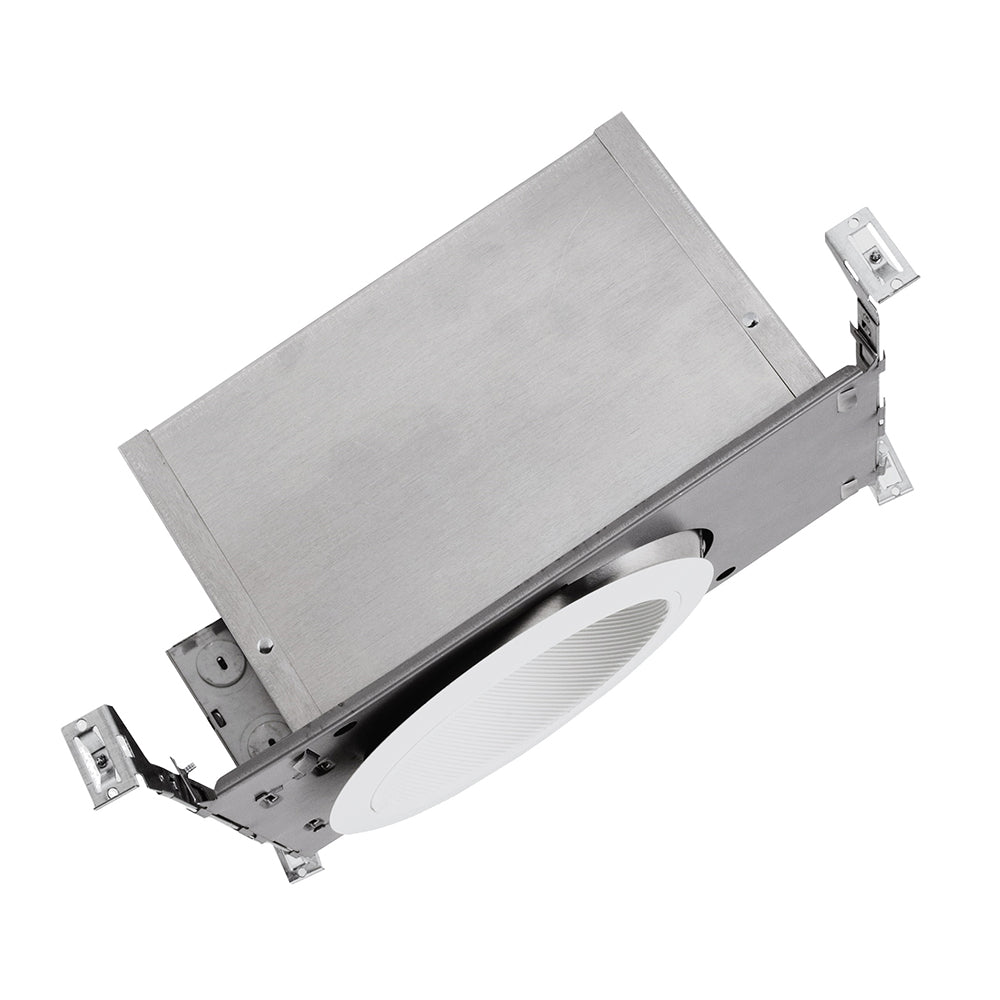

NICOR 6 in. Super Slope Housing for New Construction Applications

Nicor SKU: 17025SSA

Nicor

$6099 $91.99

136 in stock

Description

This six-inch IC rated housing is suitable for remodel in residential and commercial applications and for direct contact with insulation. Integral thermal guards protect against improper lamping and misuse of insulation materials with lamp wattage ratings and apertures based off trim selection. Designed for slope ceiling installation with a 7/12 to 12/12 pitch, the socket pivots to allow the lamp to be aimed straight down regardless of ceiling pitch. The airtight housing limits the exchange of air between ceiling plenum and heated/cooled areas. The housing adjusts from 1/2 to 1 1/2 to accommodate ceiling thickness and its 7 5/8height allows it to be used in 2 x 8 joist construction.

Features:
- Suitable for new construction applications
- Designed for super sloped ceiling installation
- Airtight rating provides for additional insulation.
- IC Rated for direct contact with insulation
- Aluminum construction provides greater heat dissipation.
- Integral thermal protector guards against improper lamping and misuse of insulation materials
- Features a pivoting socket to allow the lamp to be aimed straight down regardless of ceiling pitch/slope
- Adjustable Socket bracket assures proper and consistent bulb positioning
- Heavy-gauge hanger bars provide greater stability, allowing housing to be positioned at multiple points
- Protected by NICOR's 1 year limited warranty

Specs

Specs:
Finish: Neutral
Product Type: New Construction Housing
Size: 6"
Application: Residential
Watts: 150W Max
Volt: 120V
Bulbtype: Incandescent
Bulbs Included?: No
Recommended Bulb Type: BR40/PAR38
Adapter/Bulb Base: Medium/E26
Hardwire/Plug/Socket: Hardwire
Product Length: 19.62
Product Width: 13.5
Product Depth: 7.62
Product Weight: 3.75
Limited Manufacturer Warranty (Year): 1

Certification:
-UL/cUL
- Energy Star Qualified: No
-IC-Rated
-Airtight
-Damp Rated
