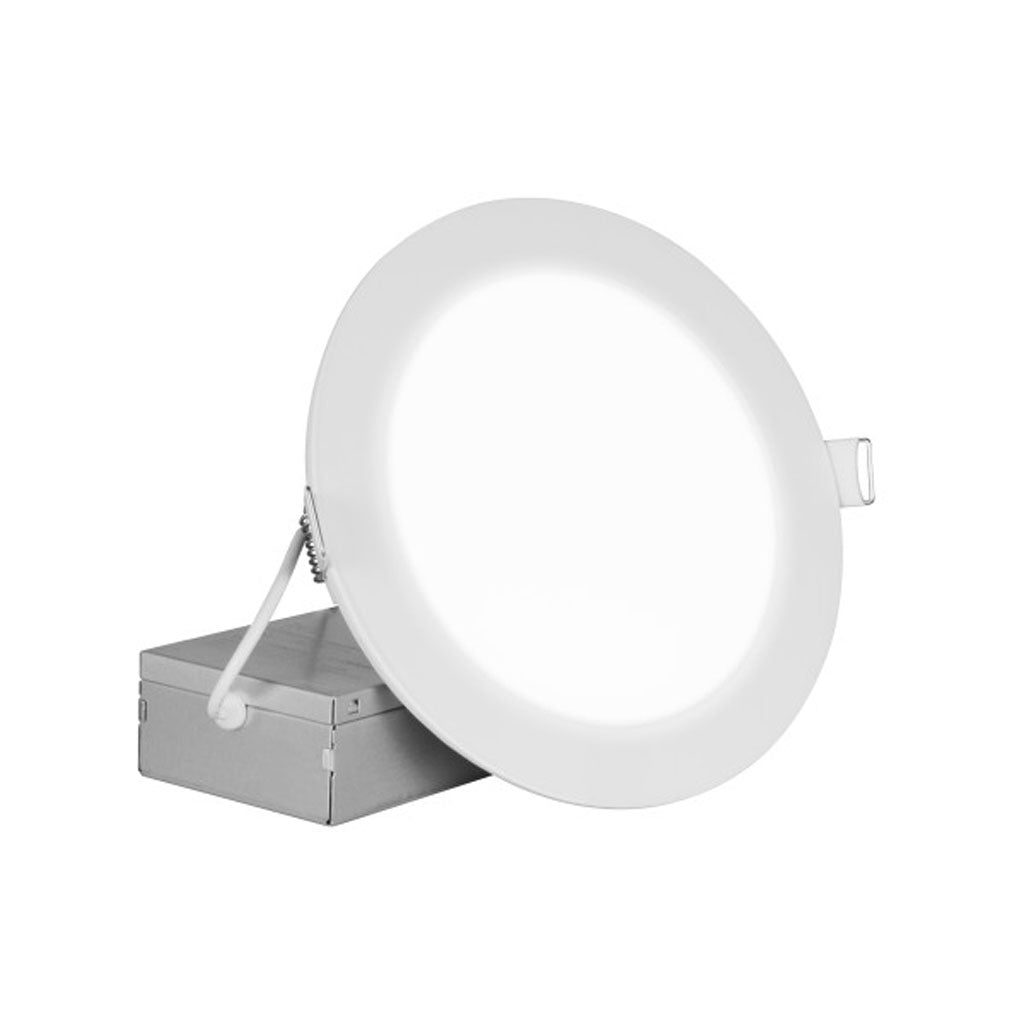

Nicor 8-in Round White Canless 3000K LED Downlight

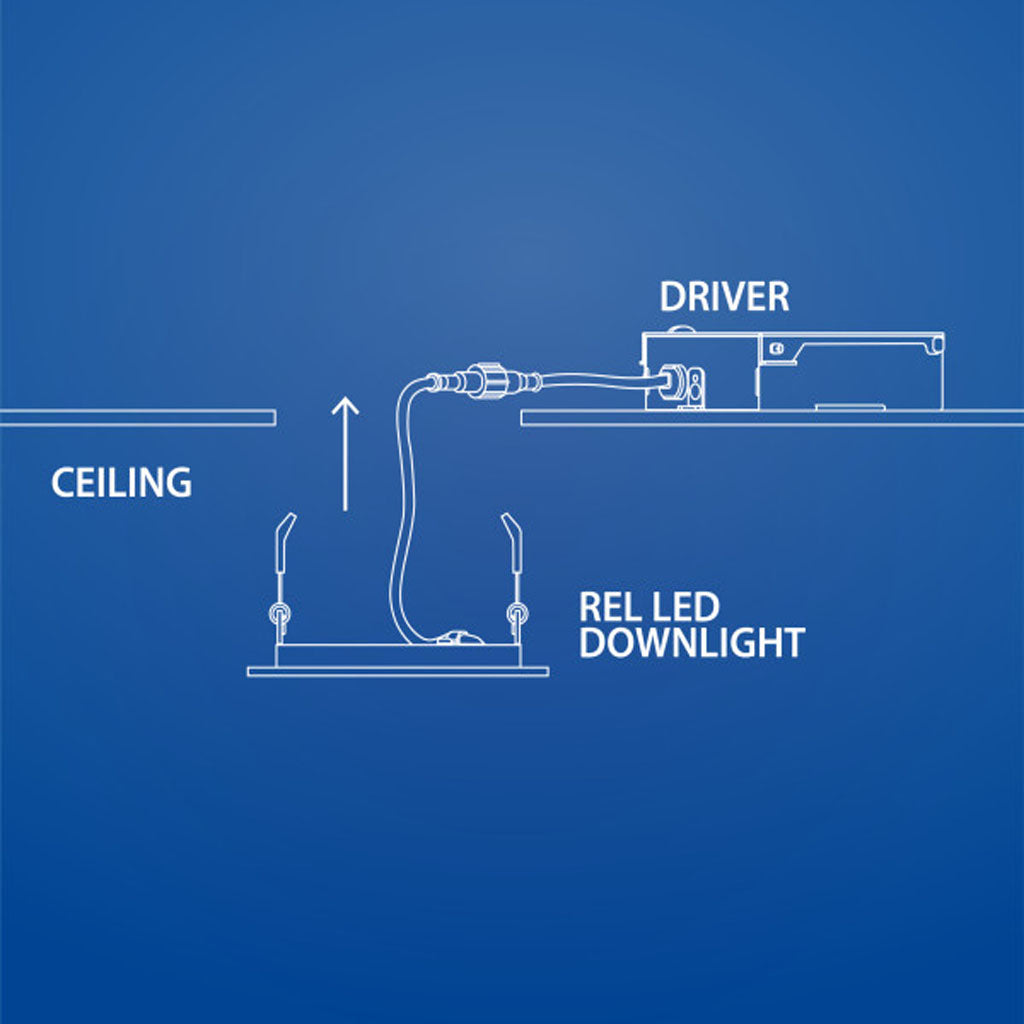

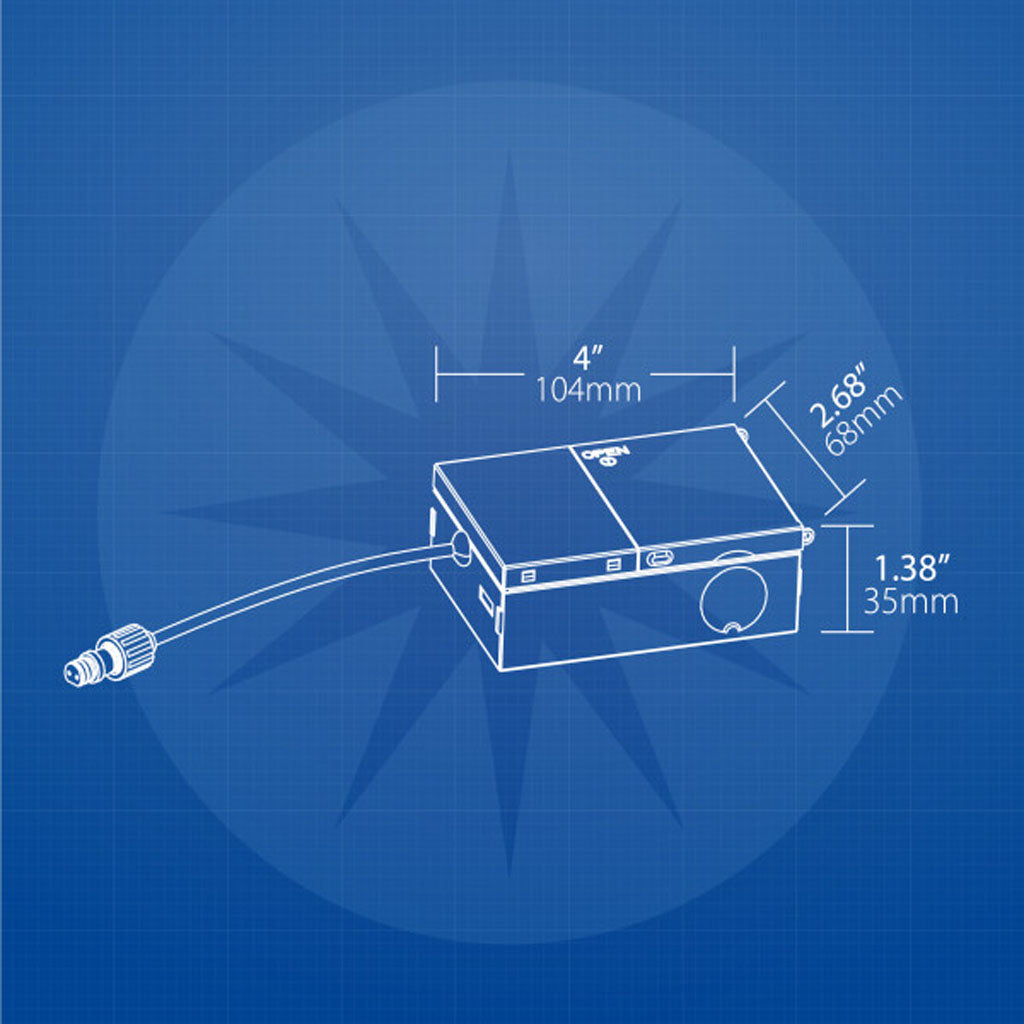

NICOR REL Series 8-in Canless LED Downlight offers a clean and attractive aesthetic with a low-profile. The edge-lit technology allows for a very thin recessed design measuring less than an inch in depth. The high-performance REL features an impressive 93 CRI rating (R9 >50) to produce an incredible light output quality. Installation no longer requires a recessed housing, but rather a simple 8.17-in diameter drywall cut-out using the provided template. The ultra-thin fixture depth and off-board driver (included) allows for a more flexible installation and increased product lifespan through superior heat management. The adjustable, spring-loaded retention tabs provide a secure fit, eliminating the need for a junction box or recessed housing. The REL comes ready to install right out of the box, no other parts or components are required. Choose between four different color temperature options: 2700K, 3000K, 4000K, and 5000K. Protected by NICOR 5-year limited warranty.

Features:
- Includes 8-in LED downlight kit in 3000K (soft white)
- Produces over 1300 Lumens using only 17.9-Watts
- Superior light quality with 93 CRI and an R9 over 50
- Installs directly into ceiling, no housing required

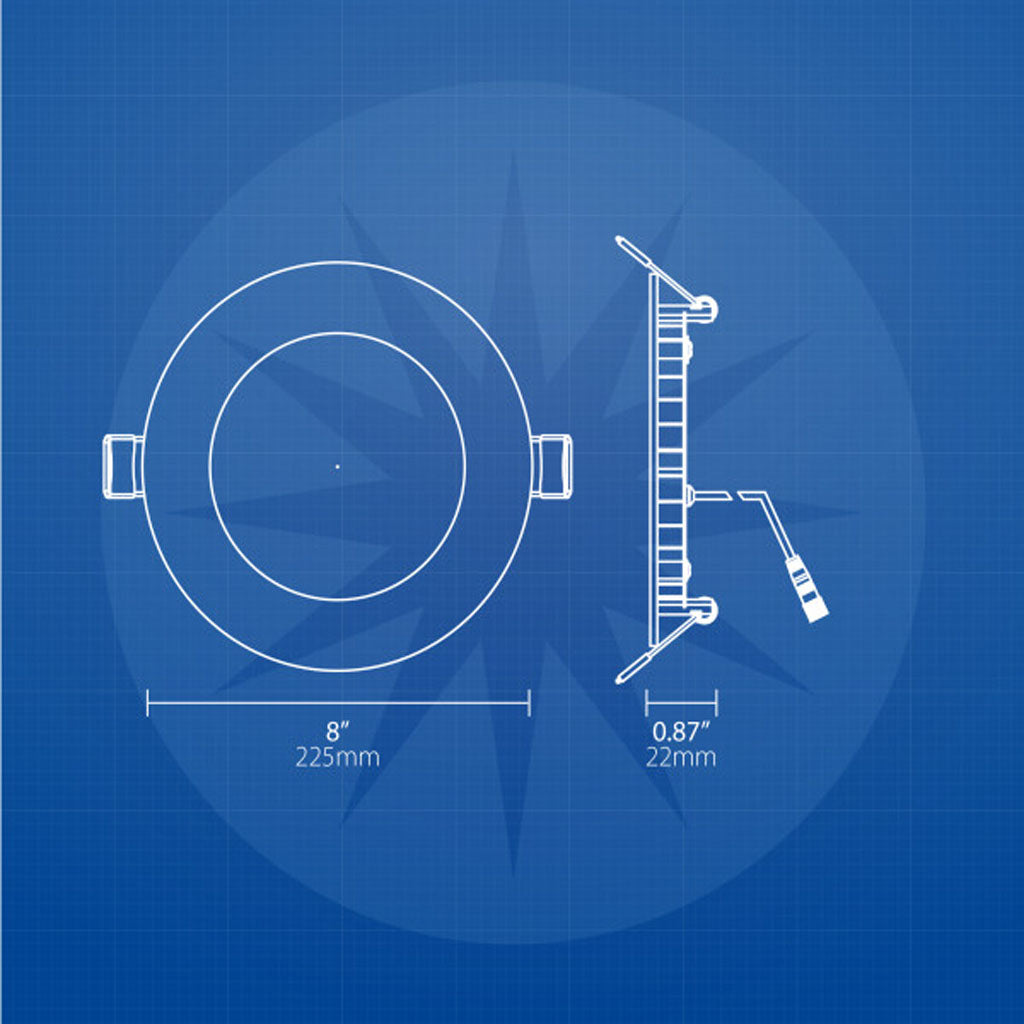

- 8.17-in diameter cut-out template included
- Dimmable to 5 percent using standard TRIAC or ELV dimmers
- Airtight, Wet-Location, and Insulation Contact Rated (IC-Rated)
- Energy Star rated, Title 24, JA8, and RoHS Compliant
- Available in four color temperatures: 2700K, 3000K, 4000K, and 5000K
- Available in three sizes: 4-in, 6-in, and 8-in
- Available in four finishes: Black, Nickel, Oil-Rubbed Bronze, and White
- Protected by NICOR 5-year limited warranty

Size	8
Product Color	White
Finish	Powder Coat
Shape	Round
Light Source	LED
Wattage	17.9
Wattage Equivalent	90
Lumen	1306
Color Temperature (CCT)	3000k
CRI	93
R9 Value	>50
Dimmable	Yes - Dimmable
Operating Temperature	-4F to 104F (-20C to 40C)
Listings/Certifications	ETL Intertek Listed, cETL Intertek Listed, Wet-Location (cETLus 1598), Title 24 (Except 5000K), JA8 (Except 5000K), IC-Rated, Airtight, ASTM 283 Compliant, NFPA 70 Compliant, NEC 410.16 (A)(3), NEC 410.16 (C)(5), RoHS Compliant, FCC Class B
Other Certifications	Testing performed in accordance with IESNA standards Meets or exceeds ASTM-283 ait tight requirements
Warranty	5 Year Limited
