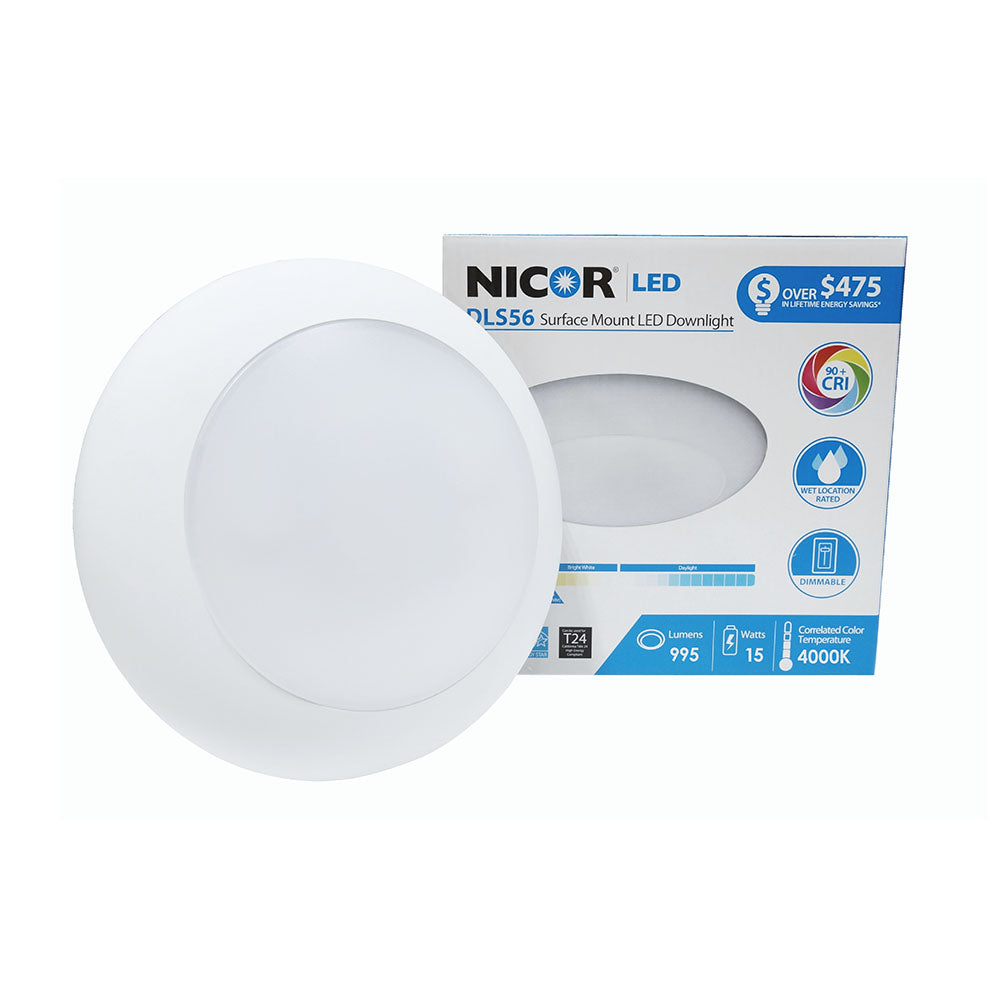

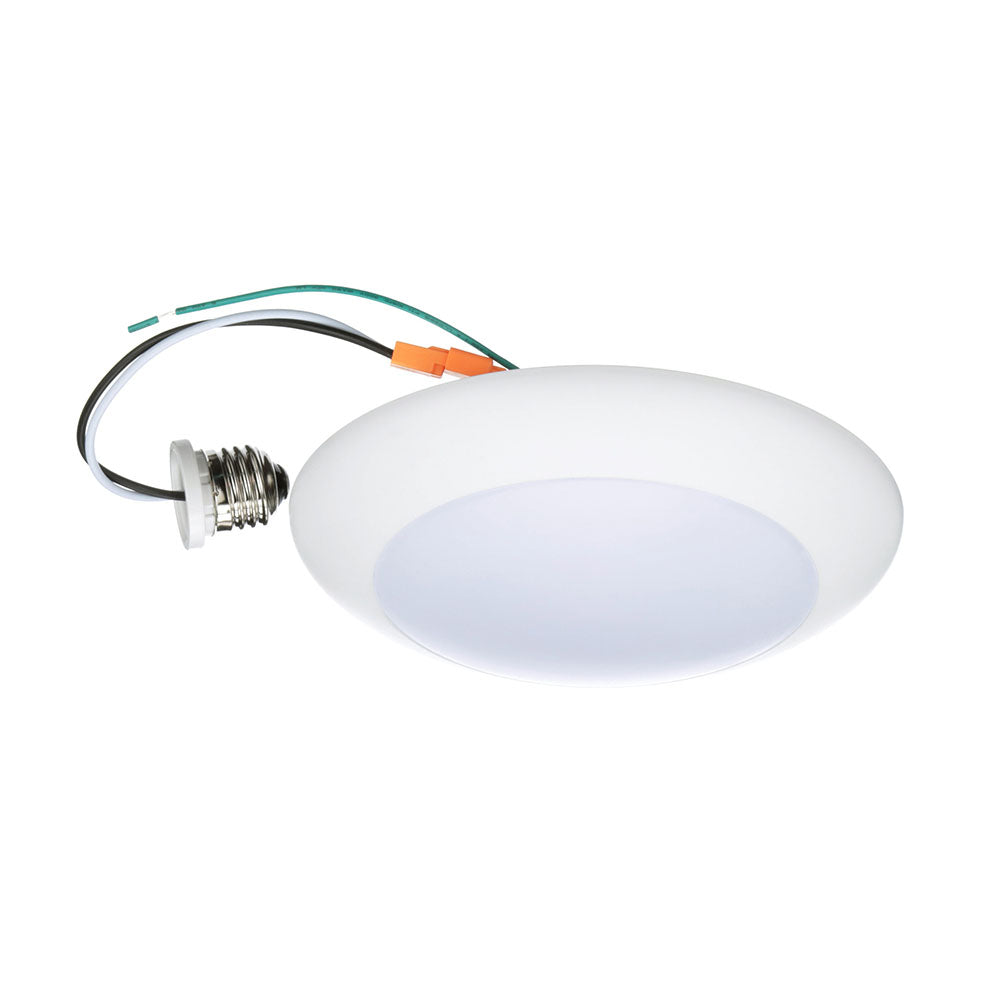

NICOR 900 Lumen White 4000K LED Surface Mount Retrofit for 5" and 6" Housings

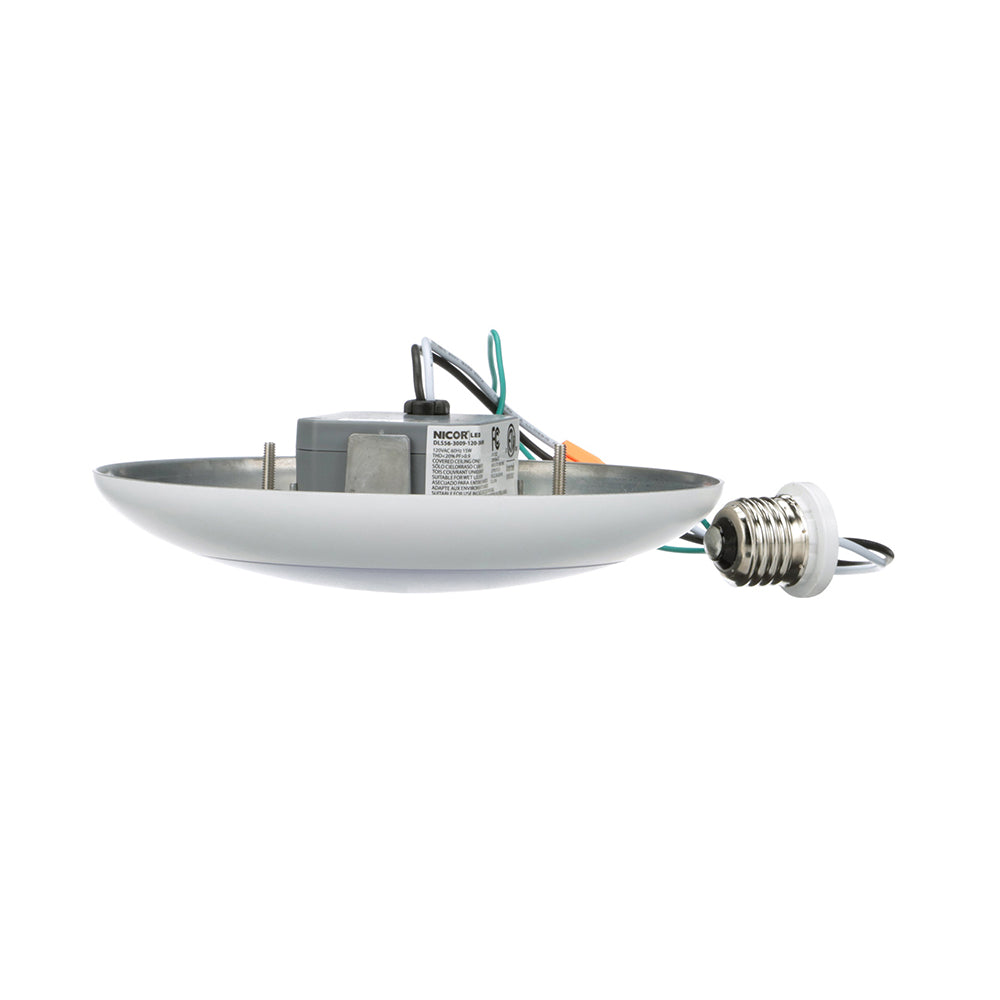

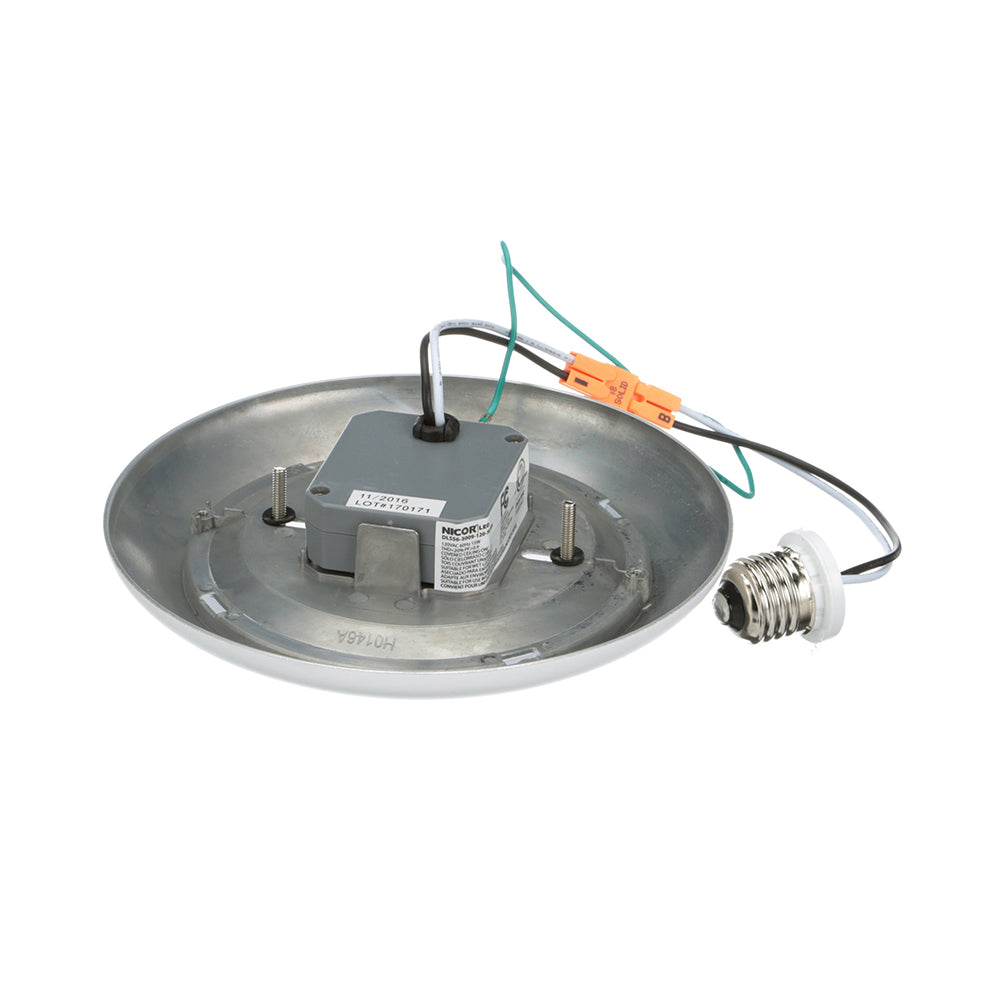

The DLS56 Surface Mount Retrofit Downlight can be installed into a 5-inch housing, 6-inch housing, or 4/0 Junction Box. Simply remove the twist lock diffuser and set your included captive screws. Its that quick! The DLS56 downlight can be installed directly into 5-inch and 6-inch recessed housings using the includes friction mounting clips. The DLS56 with Integrated LED Driver is a very flexible lighting solution for both retrofit and new construction applications alike. The high performance DLS56 is available in 2700K, 3000K or 4000K color temperature, and features the latest technology in LED lighting to deliver the highest quality of light to produce 94 CRI and an R9 rating of 62! The DLS56 is also dimmable to 10%, and Wet Location Rated for use in Showers. Also Energy Star Rated, Title 24 Compliant, and features a 5 Year Warranty.

Features:
- Produces 1,065 Lumens using high performing LEDs with 94 CRI and an R9 value of 62.
- Available in 2700K, 3000K, and 4000K
- Low profile driver allows for surface mount installation in a 4/O Junction box and 5" or 6"housings
- Dimmable to less than 10% with standard TRIAC dimmers
- Connects to power with the included Edison Socket Adapter or IDEAL Connector
- Twist lock diffuser allows for easy removal during installation
- Die cast aluminum trim routes heat away from electrical components
- Thermally protected, high efficiency driver comes standard
- Features slotted mounting holes for 4/0 Junction box installation, and V-Springs for housing installation
- Reported lifetime rated for greater than 60,000 hours
- Protected by NICOR's 5 Year Limited Warranty

Finish:	White
Product Type:	LED Surface Mount Disc
Size:	5" | 6"
Application:	Residential
Wattage (W)	14.24w
Voltage (V)	120v
Incandescent equivalent:	110w
Light Output (LM):	1065
Color Reindering index CRI:	94
Color Temperature:	4000K
Dimmable:	Yes
Rate life:	>60,000
Bulbs Included?:	Yes
Adapter/Bulb Base:	E26
Hardwire/Plug/Socket:	Socket

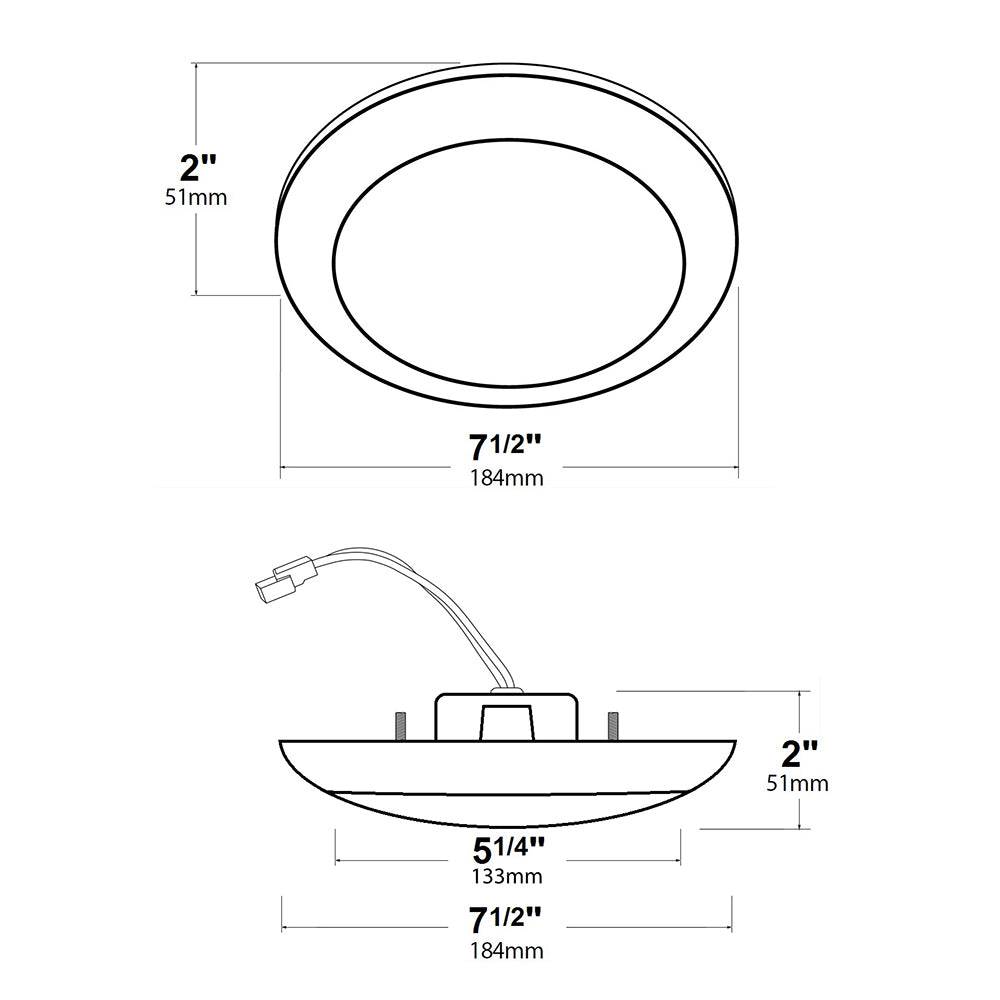

Product Length:	7.25
Product Width:	7.25
Product Depth:	2
Product Weight:	0.7
Limited Manufacturer Warranty (Year):	5
Certification:	-UL/cUL
Energy Star Qualified:	Yes
Tilte 24:	Yes
CEC:	Yes
Wet Rated	Yes

Manual:

DLS56 Installation Manual
