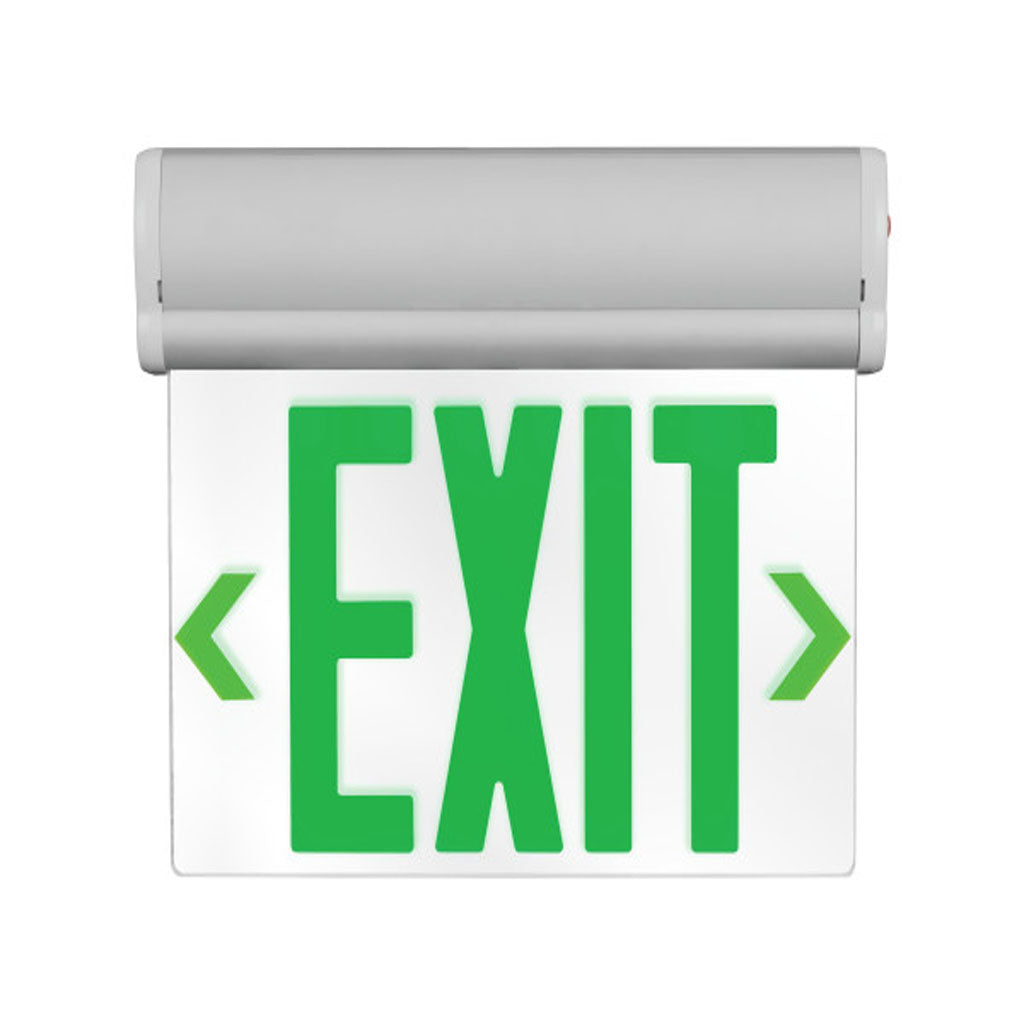

Nicor EXL220 Edge-Lit LED Emergency Exit Sign Clear with Green Lettering

The EXL2-20 Series LED Edge-Lit Exit Sign features a contemporary design, built with dependability in mind. The sign is constructed using impact-resistant (optically clear) acrylic in a single-sided configuration. Bright LEDs illuminate the exit sign with exceptional light distribution and quality. The thin, edge-lit design saves space and reduces weight, making installation a breeze (considering it is usually done on a ladder). The EXL2-20 can be mounted from the top or end of the base. The adjustable base rotates 90for easy installation on any surface. The EXL2 features an integrated nickel-cadmium battery to provide 90-minute emergency run-time if the power gets cut. Directional chevron arrows are included. Available in red or green lettering.

Features:
- Clear, single-sided configuration
- Maintenance-free NiCad battery provides 90-minute emergency operation
- Satin finished, spec-grade aluminum base housing
- Impact-resistant acrylic sign face
- 120/277VAC Dual-Voltage operation (60Hz input)
- Integrated low-voltage disconnect to eliminate deep discharge
- Brown-out, short-circuit, and voltage-surge protection
- Push-button test switch with LED indicator
- Includes mounting-plate and hardware for easy installation
- Includes optional chevron arrow indicators
- Protected by NICOR 1-year limited warranty

Size	12
Product Color	Clear, Green Letters
Finish	Satin
Light Source	LED
Wattage	2.3
Lumen	187.4
CRI	83
Operating Temperature	32?F - 104?F (0?C - 40?C)
Listings/Certifications	UL 924 Listed, cUL 924 Listed, NFPA 70 Compliant, NFPA 101 Compliant, FCC Class B, Damp-Location
Other Certifications	Meets or exceeds requirements of NFPA 70 & NFPA 101 Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
Warranty	1 Year Limited

Manual:

EXL220UNVCLG1 Data Sheet
EXL220UNVCLG1 Data Sheet
