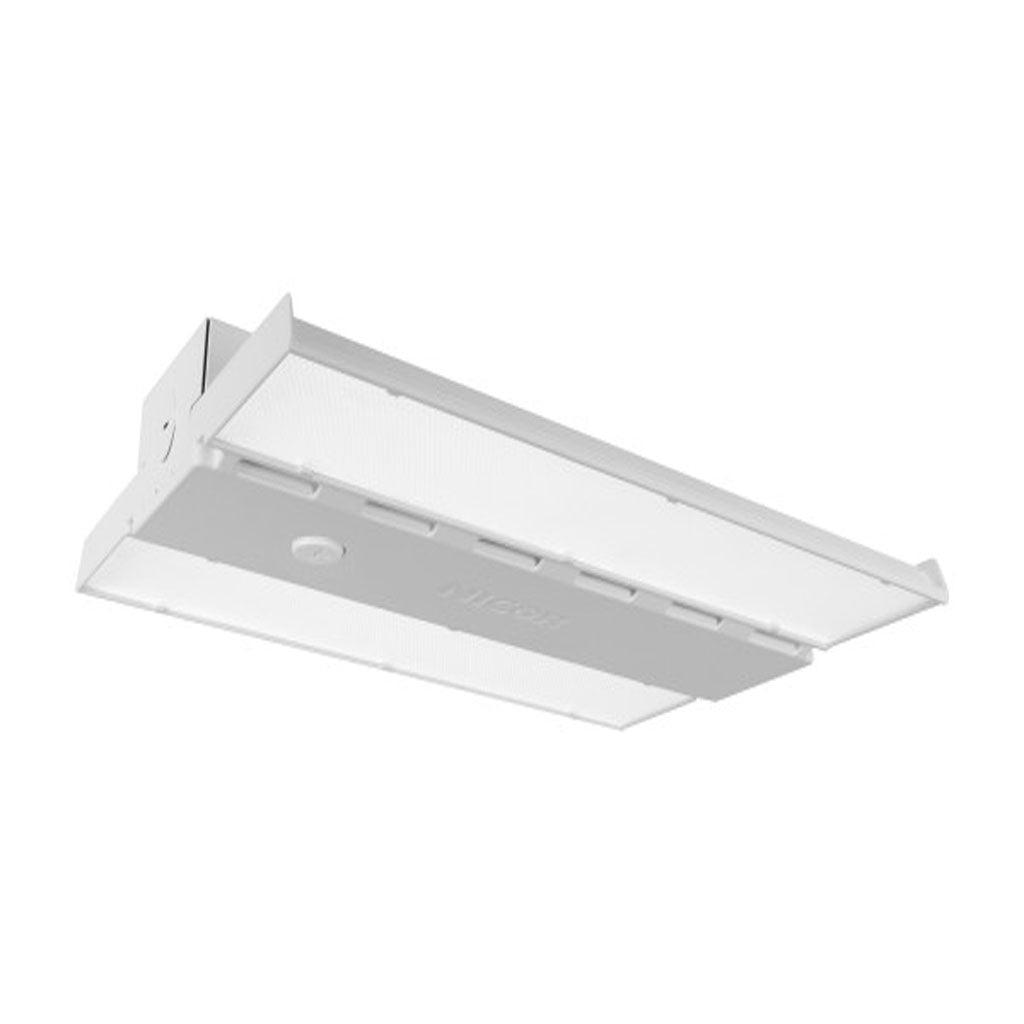

Nicor HML1 130w Linear LED 5000K High Bay with Sensor Socket

The HML1 is the newest addition to NICOR high bay product family. With it is slim 10x14-in footprint (on smaller wattages), the HML1 offers the high performance of a full-size fixture in a compact package. Available in 4000K & 5000K color temperatures with a variety of wattage and aisle distribution options, making it the ideal solution to replace traditional fluorescent fixtures. The HML1 also features a sensor socket option, allowing for field installation of motion sensor accessories adding to its versatility. The DLC 5.1 Premium fixture is equipped with built in 0-10V Dimming (full-range) and is Damp-Location Rated. Included is a V-Hook and Chain mounting system for easy installation. With its durable single-piece cast aluminum design, the HML1 is perfect for rugged applications like warehouses, gymnasiums, and other industrial or commercial spaces.

Features:
- 5000K Color Temperature
- 130 Watts
- 18228 Lumens
- Pre-Installed Sensor Socket
- Full Range 0-10V Dimming
- DLC Premium Listed, RoHS Compliant
- Includes V-Hook & Chain Mounting Kit
- 60,000 Hour Lifespan
- 5-Year Limited Warranty

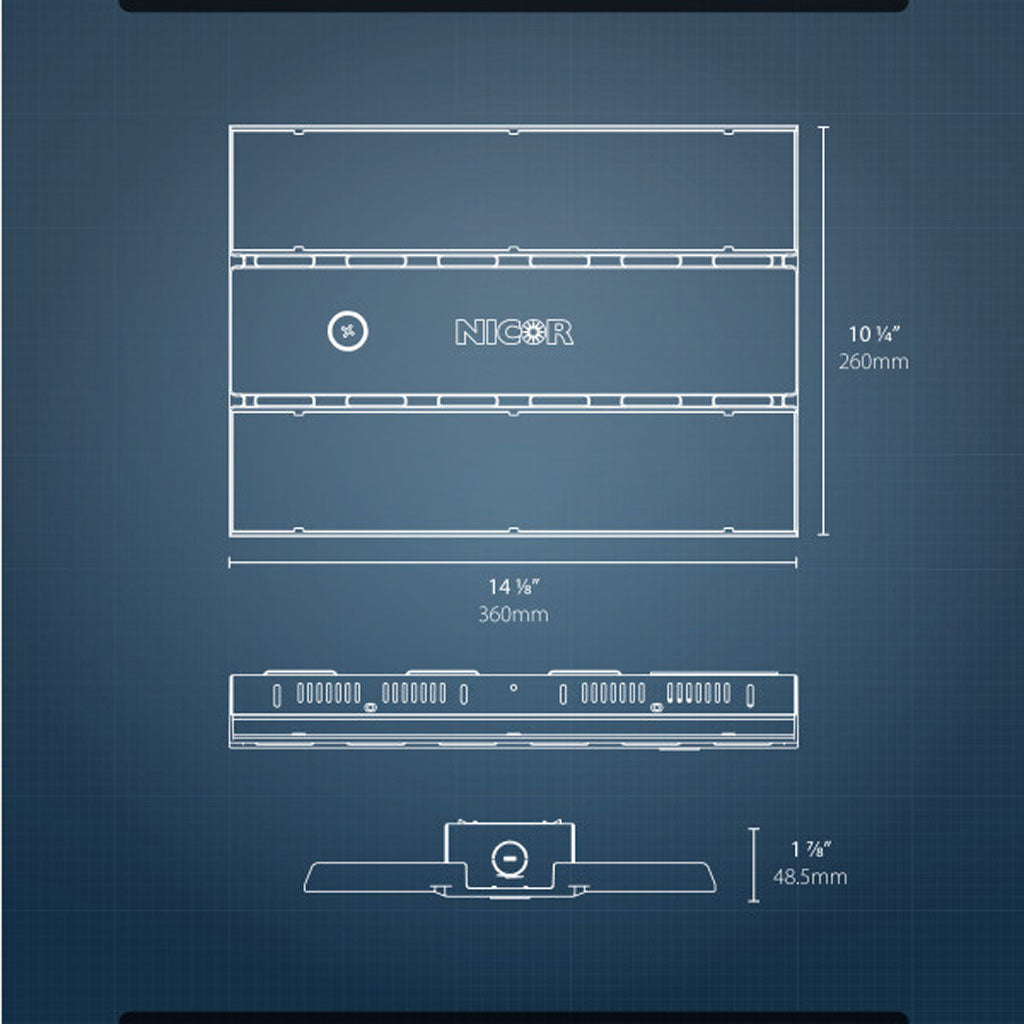

Size	14.1
Product Color	White
Finish	Polyester Powder Coat
Light Source	LED
Wattage	129
Wattage Equivalent	650
Lumen	18228
Color Temperature (CCT)	5000k
CRI	86
Dimmable	Yes - Dimmable
Operating Temperature	-4F to 131F (-20C to 55C)
Listings/Certifications	UL 1598 Listed, cUL1598 Listed, RoHS Compliant, DLC 5.1 Premium, IK08 Rated, FCC Class B, Damp-Location
Other Certifications	Testing performed in accordance with IESNA standards, ASHRAE 90.1 compliance when specified with sensor option
Warranty	5 Year Limited

Manual:

HML1130U50AS Data Sheet
HML1130U50AS Data Sheet
