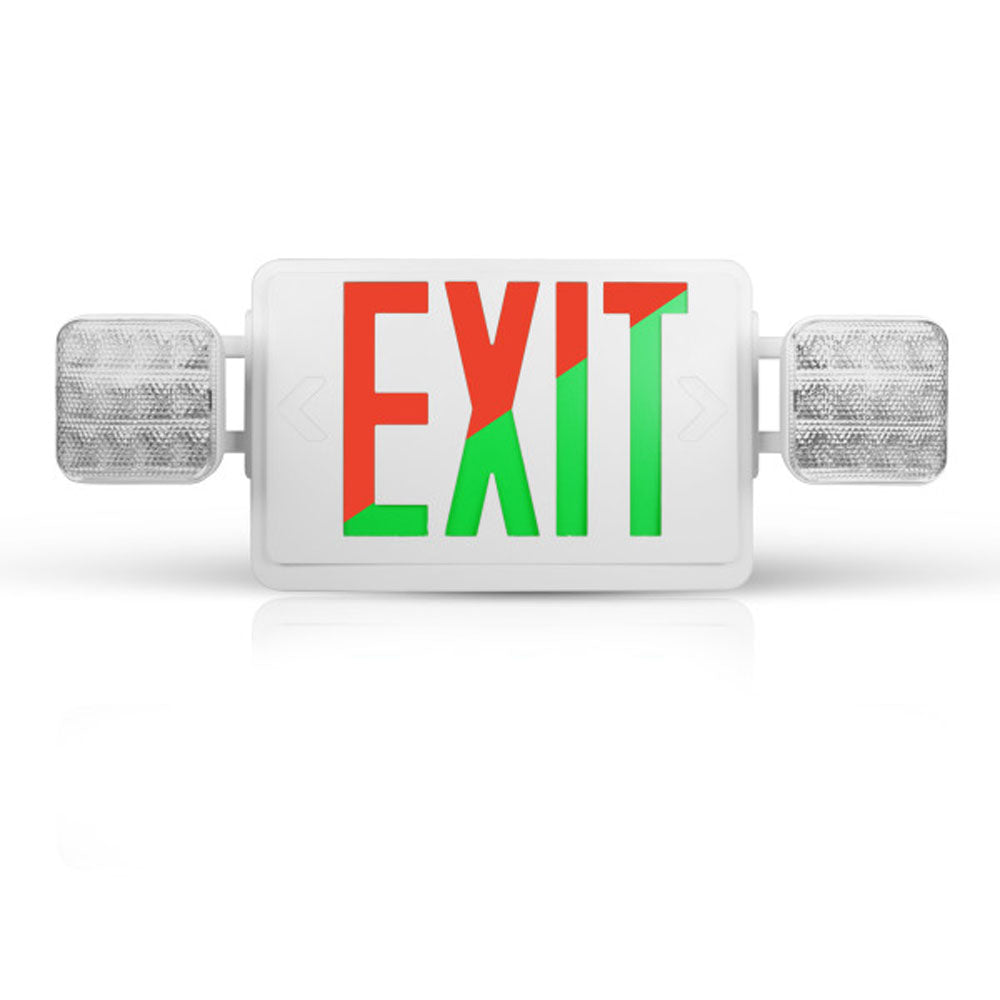

NICOR LED Emergency Exit Sign Color Combo

The ECL1-Select LED Emergency Exit Sign Combo features field-selectable red and green lettering. With included templates for both colors, simply install the slide color you need and flip the LED switch inside to match. The ECL1 is offered in white and features a universal mounting bracket for simple installation anywhere, and 90-minute emergency operation with integrated test button. This series is available in both a standard and remote-capable option to use with Remote Heads (2 max), available separately. The ECL1-Select is the ideal low-energy choice for multifamily, commercial, and retail settings.

Features:
- Field selectable Green and Red lettering
- Features a double sided exit sign configuration
- Built in NI-MH battery provides 90 minute emergency backup run time
- Dual voltage operation (120-277V)
- Uses only 1.46W per adjustable light head
- UL-94V-O flame retardant rated
- Injection molded thermoplastic ABS housing
- Push button test switch with LED indicator
- Universal mounting base with EZ quick connect
- Protected by NICOR's 1 year limited warranty

Model Number	ECL120UNVWHS2
Product Type	LED Exit Sign Red or Green Text (Selectable)

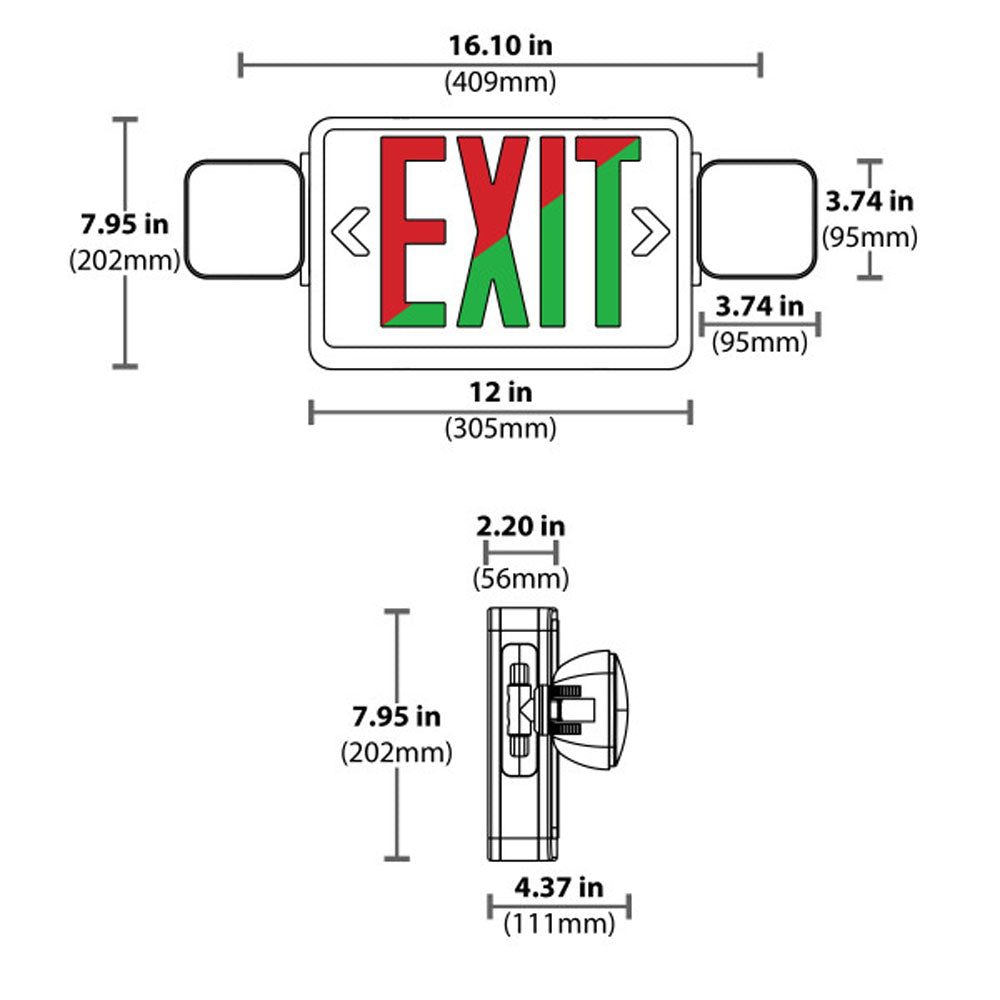

Size (in.)	12-in
Product Color	Red|Green
Finish	White
Wattage	3.5w
Voltage	120-277v
Lumens	386L
Application	Residential or Commercial
Bulb Type	LED
Bulbs Included	Yes
Listings/Certifications	UL Listed, cUL Listed, IC-Rated, Damp Location
Warranty	1 Year Limited

Manual:

ECL120UNVWHS2 Data Sheet
