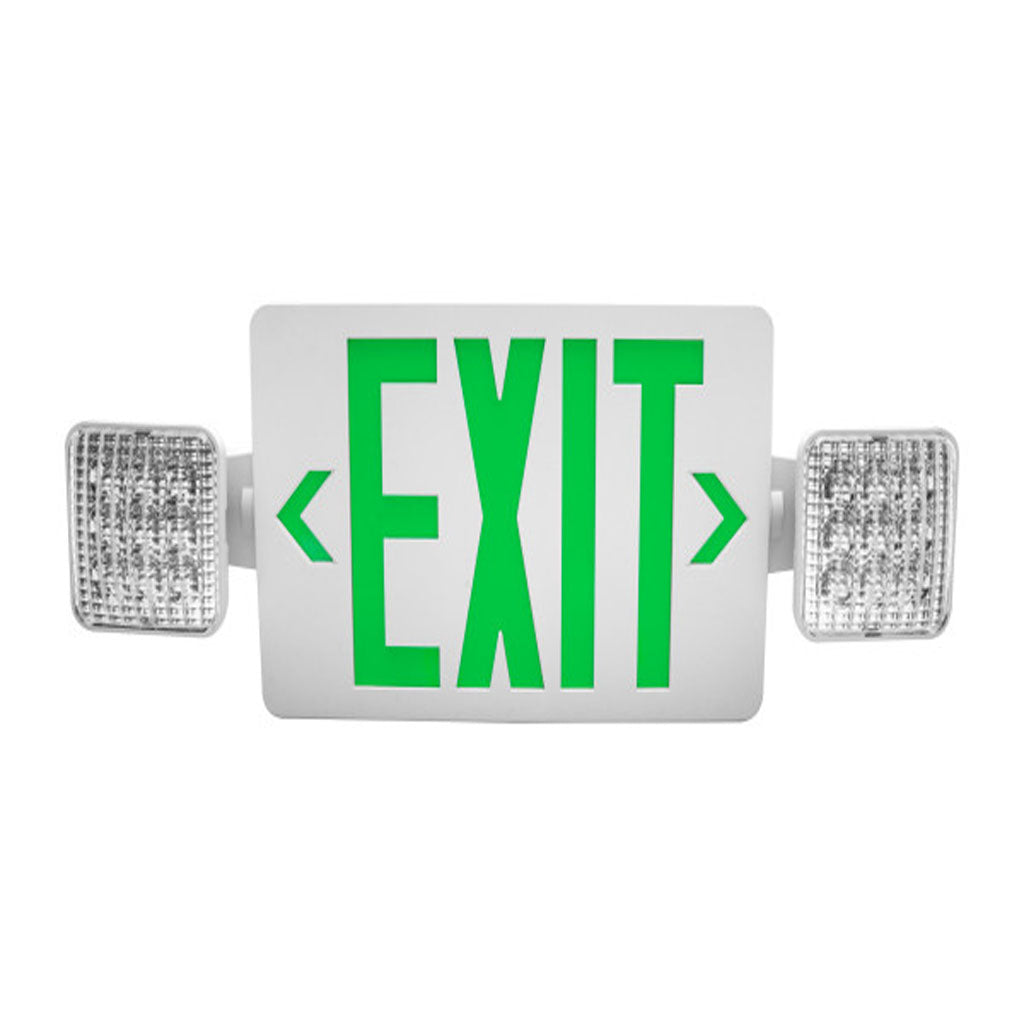

Nicor LED Emergency Exit Sign Combo Remote Capable Green Lettering

The NICOR ECL3 Series Remote Capable, Self-Diagnostic, LED Emergency Exit Sign Combo with Battery Backup Lighting features a low-profile design with the latest in emergency lighting technology. The self-diagnostic function automatically tests and reports on the status of the fixture to satisfy NFPA safety requirements. A redesigned housing keeps the fixture lightweight and very easy to install with the EZ Quick-Connect mounting plate. The injection-molded thermoplastic housing is flame rated (UL-94 5VA) for added safety. An integrated Nickel-Cadmium battery provides 90-minutes of emergency run-time that kicks on if the power goes out. Two emergency LED heads on each side are removeable and adjustable for increased visibility when it is needed most. The ECL3 is available with red or green lettering and includes an additional faceplate for the backside and removable directional arrows. Protected by NICOR 1-Year Limited Warranty.

Features:
- Remote Capable - Supports up to Two 3.6VDC Remote Fixtures
- Self-Diagnostic with Test and Charge/Status Indicator
- Meets NFPA 70 and NFPA 101 Requirements
- UL-94 5VA Flame Rated Thermoplastic ABS Housing
- Removeable LED Heads with 330Tilt and 200Rotation
- Nickel-Cadmium Battery with 90-Minute Emergency Operation
- 120/277VAC Dual-Voltage Operation
- Surface Wall Mount or Ceiling Mount Installation
- Universal EZ Quick-Connect Mounting Plate Included
- Hardware and Installation Instructions Included
- UL 924 Compliant and Damp Location Rated
- Protected by NICOR 1-Year Limited Warranty

Size	12
Product Color	White, Green Letters
Finish	Matte Textured
Light Source	LED
Wattage	3.3
Lumen	203
Color Temperature (CCT)	6000k
CRI	70
Operating Temperature	50F to 104F (10C to 40C)
Listings/Certifications	UL Listed, cUL Listed, UL-94 5VA Flame Rated, UL 924 Listed, cUL 924 Listed, NFPA 70 Compliant, NFPA 101 Compliant, Damp-Location
Warranty	1 Year Limited
