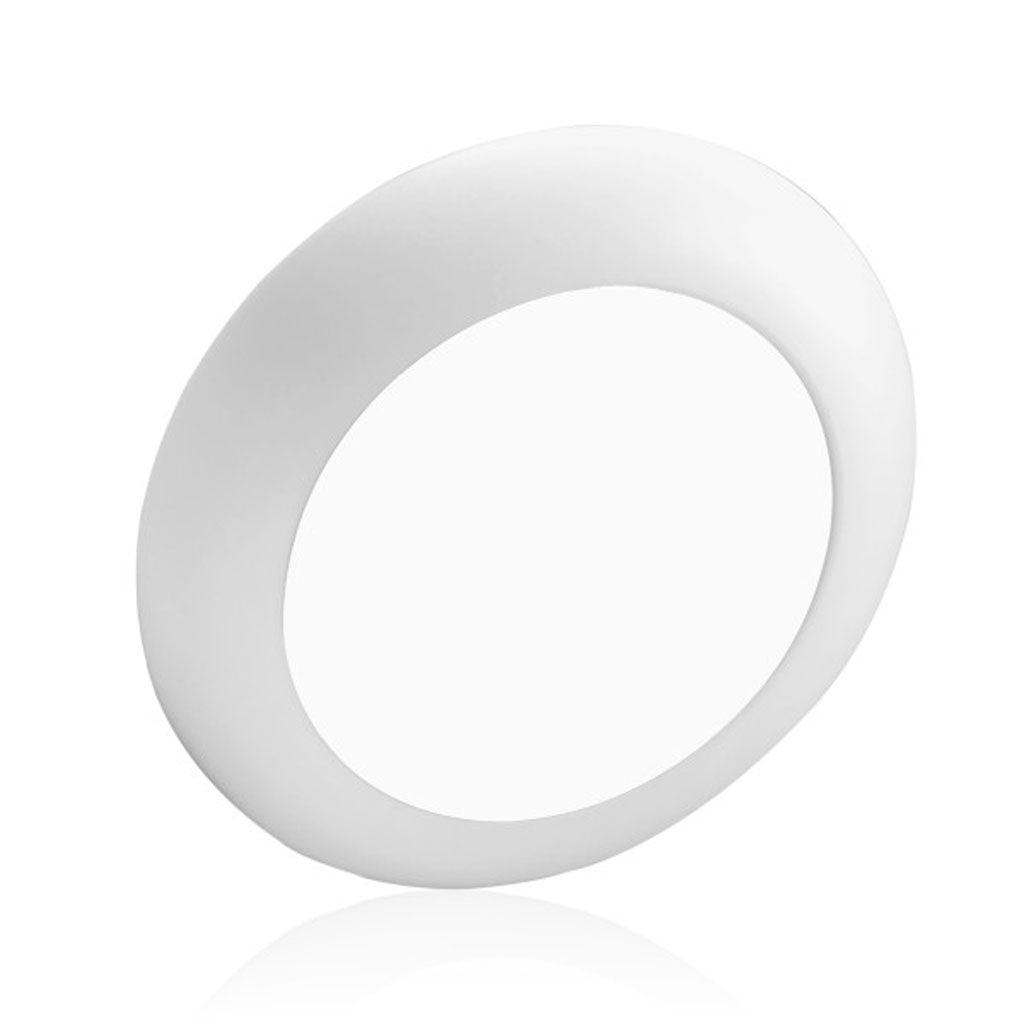

Nicor RSD Series 8-in Surface Mount 3000K LED Downlight

NICOR RSD Series 8-in LED Surface Mount Disk Light offers an attractive and low-profile installation solution designed to fit the tightest of spaces. Eliminating the need for a housing, the RSD easily installs into any 4-in pancake, 4-in non-metallic, or 4/O junction box. This high efficiency fixture features an impressive 93 CRI rating (R9 >50) and a lifespan exceeding 54,000 hours, producing exceptional and long -lasting light quality. The RSD is Energy Star rated, Wet-Location rated, and dimmable to 5 percent using standard TRIAC or ELV dimmers. Available in 2700K, 3000K, 4000K or 5000K Color Temperature options. Protected by NICOR 5-Year Limited Warranty.

Features:
- 3000K Color Temperature
- Produces 1152 Lumens using only 18.5 Watts
- Installs into any 4-in pancake, 4-in non-metallic, or 4/O junction box
- Dimmable to 5 percent using standard TRIAC or ELV dimmers
- Energy Star and Wet-Location Rated
- Matte Powder Coat Finish
- 54,000 hour lifespan (reported)
- 5 Year Limited Warranty

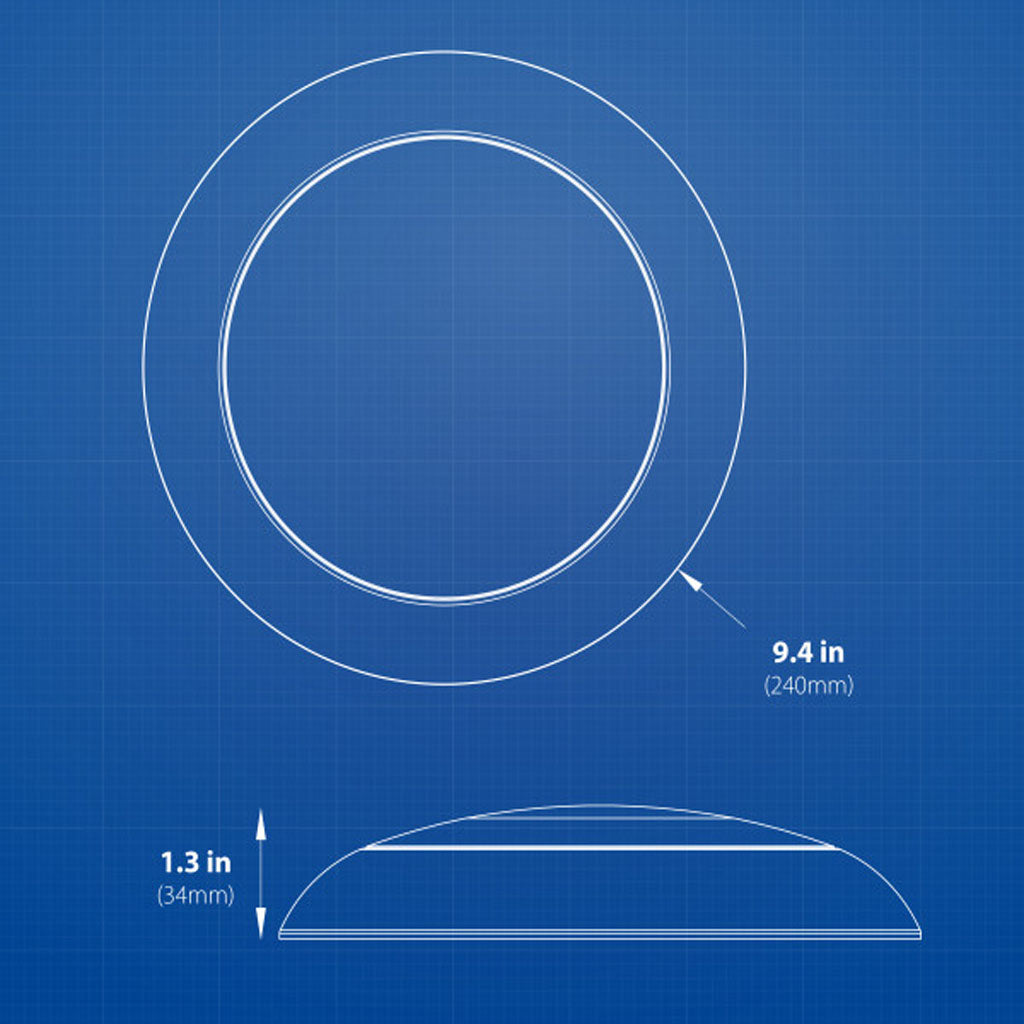

Size	8
Product Color	White
Finish	Matte
Shape	Round
Light Source	LED
Wattage	18.5
Wattage Equivalent	90
Lumen	1152
Color Temperature (CCT)	3000k
CRI	94
R9 Value	62
Dimmable	Yes - Dimmable
Operating Temperature	-4F to 104F (-20C to 40C)
Listings/Certifications	ETL Intertek Listed, cETL Intertek Listed, RoHS Compliant, FCC Class B, NFPA 70 Compliant, NEC 410.16 (A)(3), NEC 410.16 (C)(5), Wet-Location (cETLus 1598)
Other Certifications	LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty	5 Year Limited
