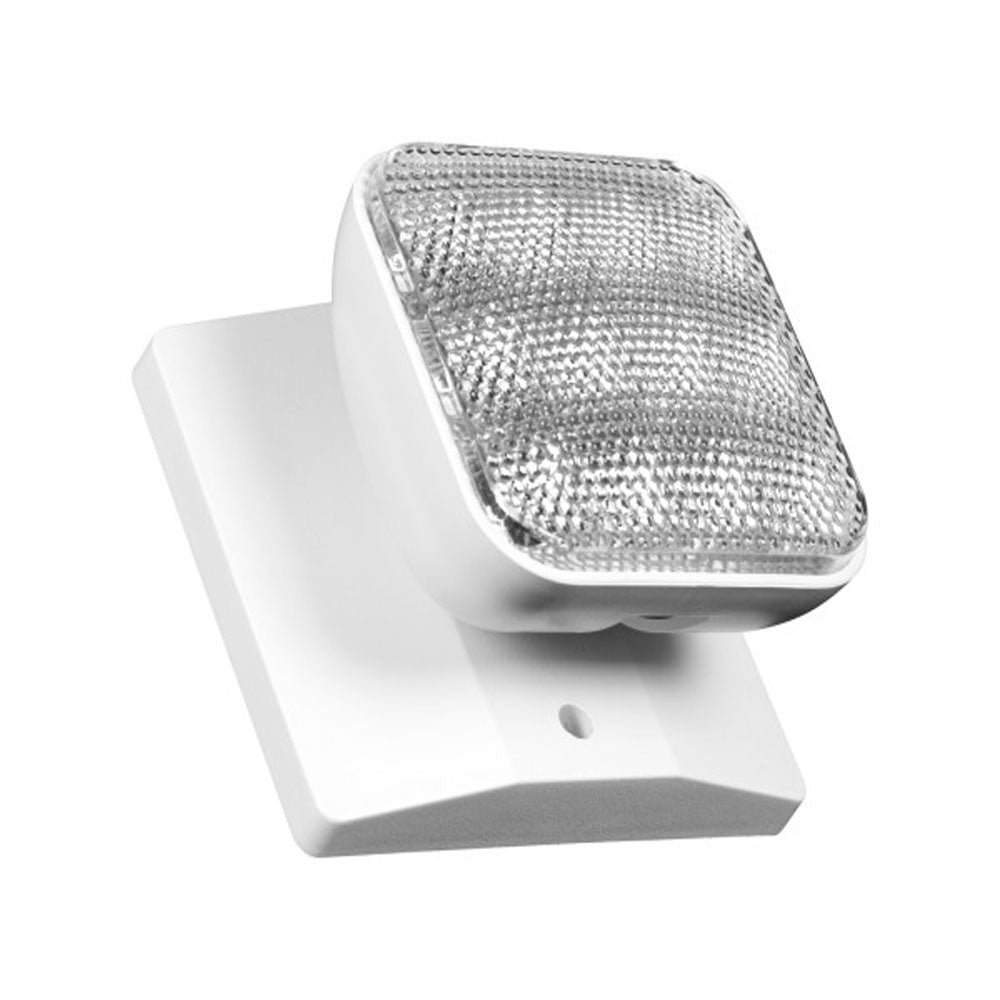

NICOR Single Head LED Emergency Remote Light

The ECL Series LED Remote lamps are designed to work with our ECL1v2 (Select) LED exit combo and emergency lighting units. This sleek, contemporary design offers fully adjustable heads that complement any environment. Available in single or double head options with a voltage package of 3.6 volts.

Features:
- Injection molded thermoplastic ABS housing
- UL-94V-0 flame rating - Flame Retardant
- Uses only 1.46W to produce 101 Lumens per adjustable light head
- Remote capability allows emergency run time connections to other units
- Supplied with faceplates for single or double face configuration
- 3.6V remote input
- Features a single adjustable LED light head
- Protected by NICOR's 1 year limited warranty

Model Number	ECL120RH1
Product Type	NICOR Single Head LED Emergency Remote Light

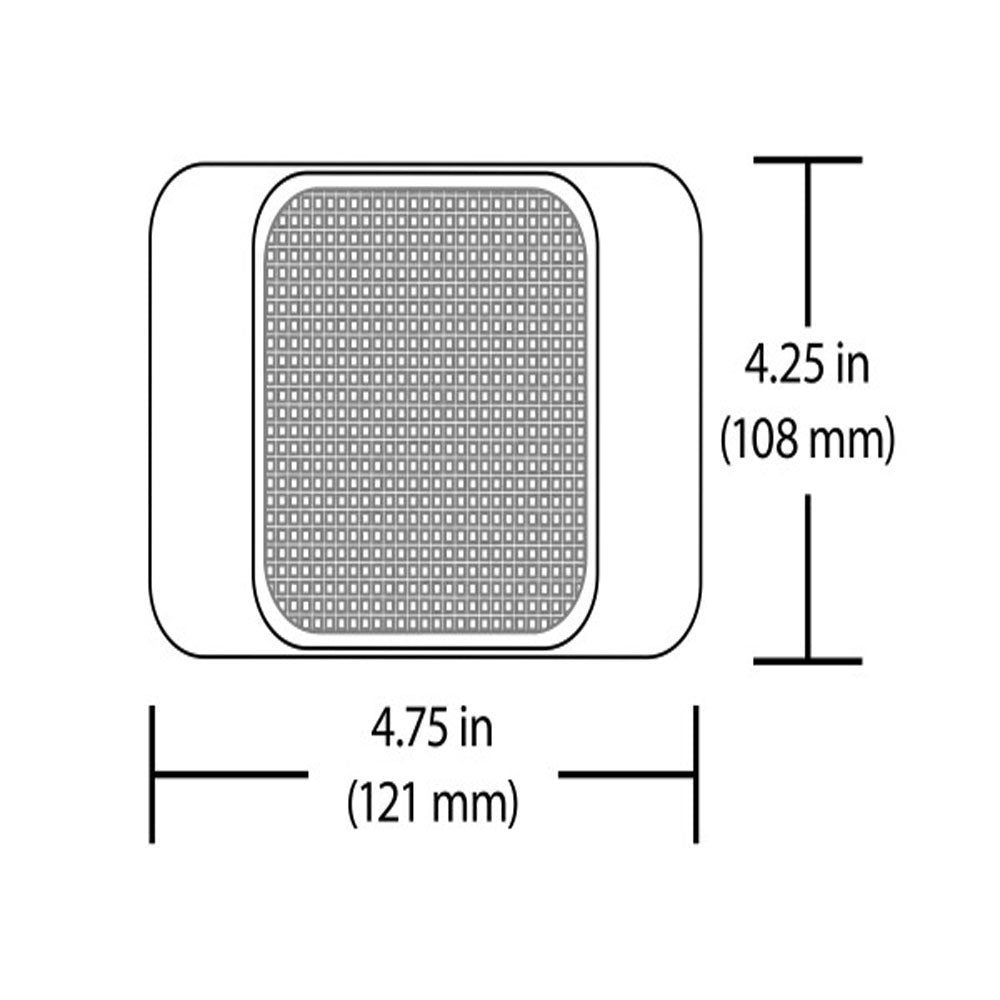

Size (in.)	4.75-in
Product Color	White
Finish	Matte
Wattage	1.46
Voltage	3.6
Lumens	101
Application	Residential or Commercial
Bulb Type	LED
Bulbs Included	Yes
Listings/Certifications	UL Listed, cUL Listed, IC-Rated, Damp Location
Warranty	1 Year Limited

Manual:

ECL120RH1 Data Sheet
