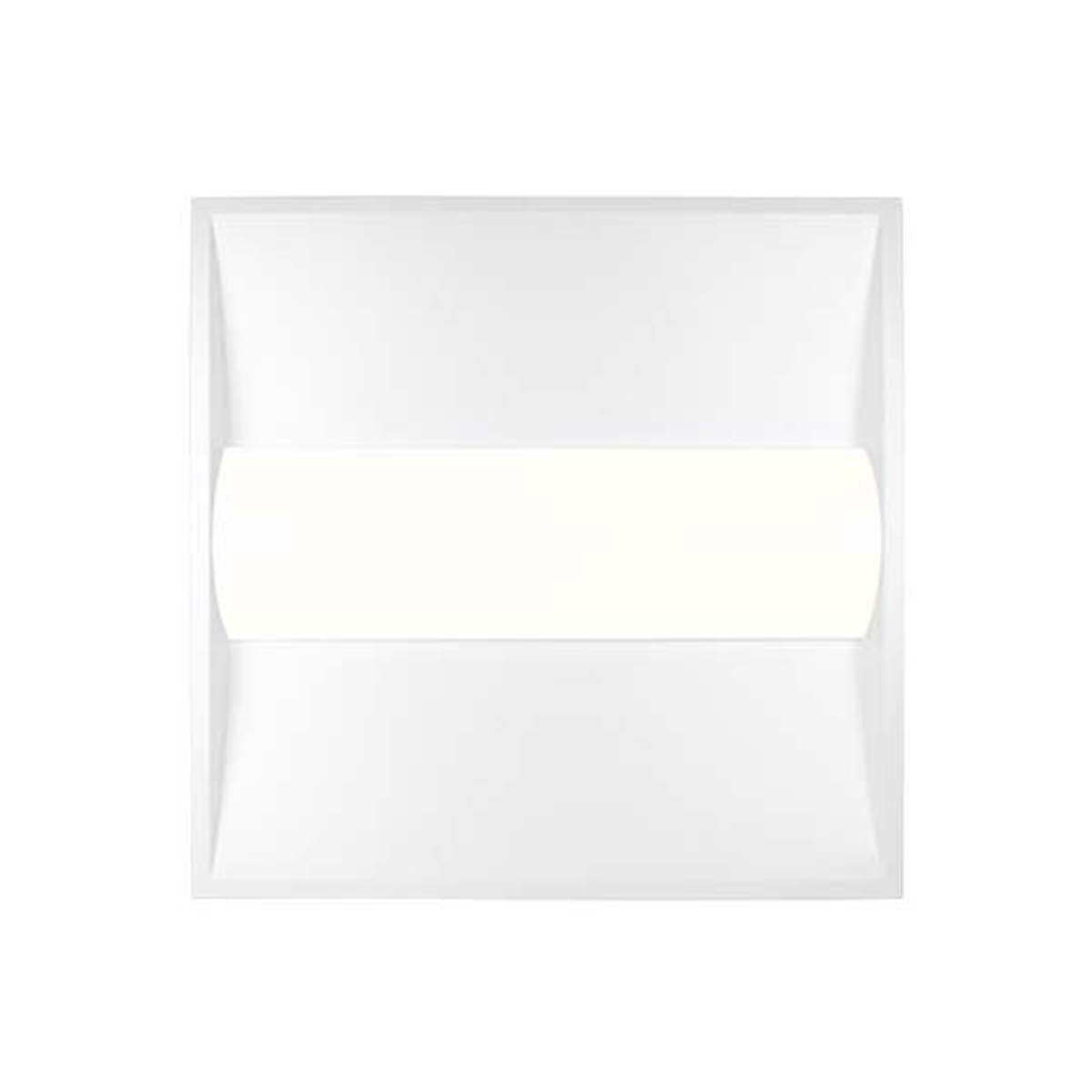

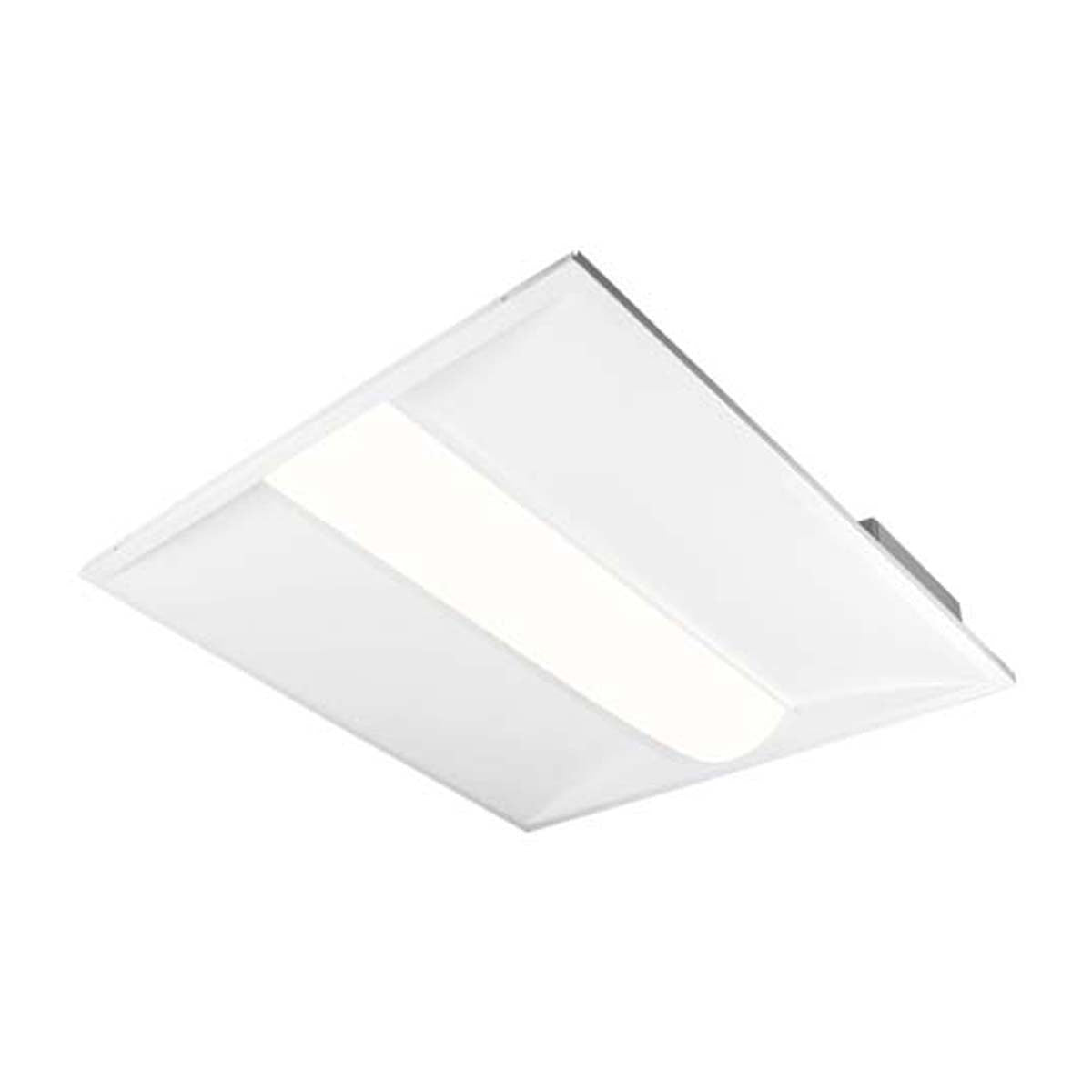

Nicor TACS3 Series Selectable 2x2 Architectural LED Troffer

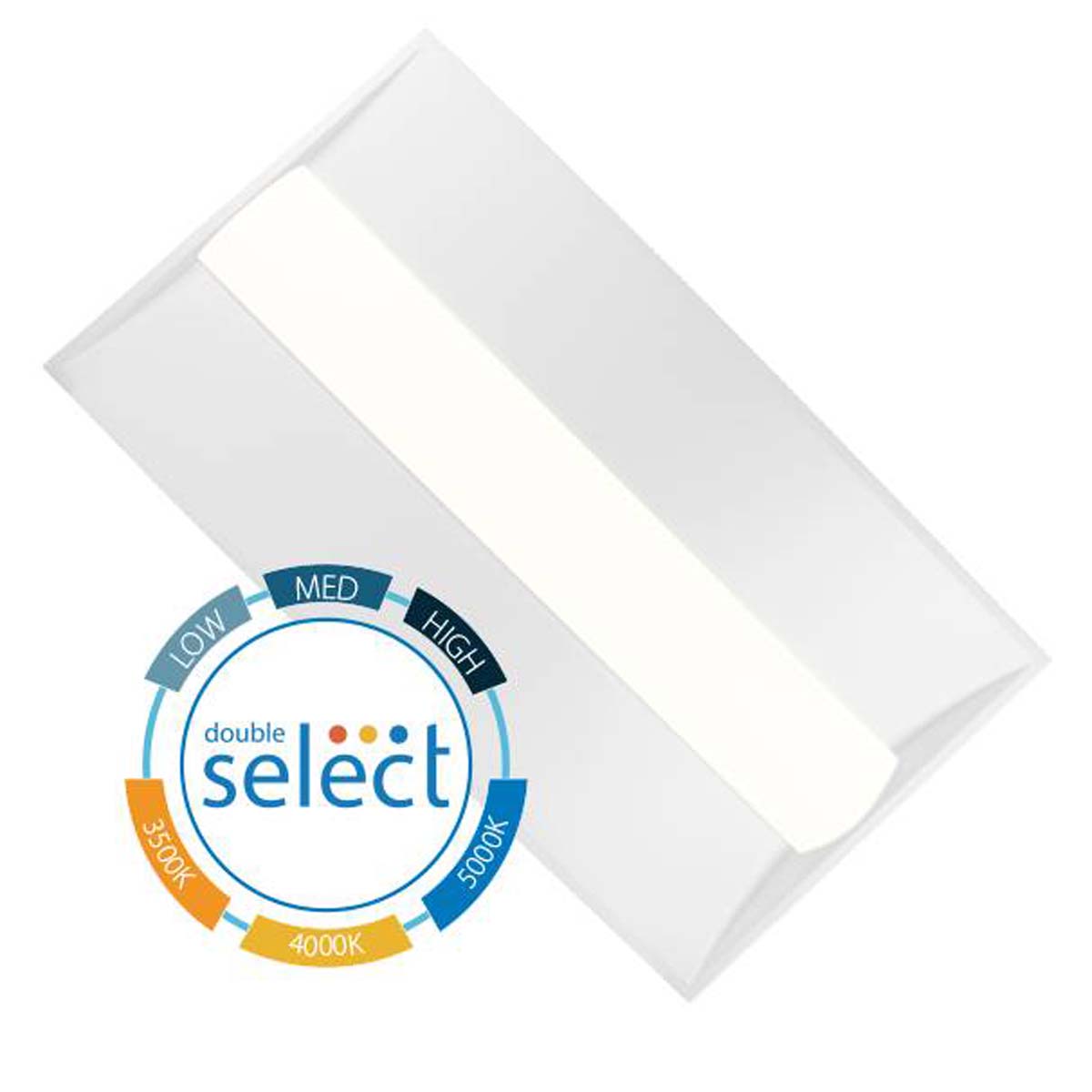

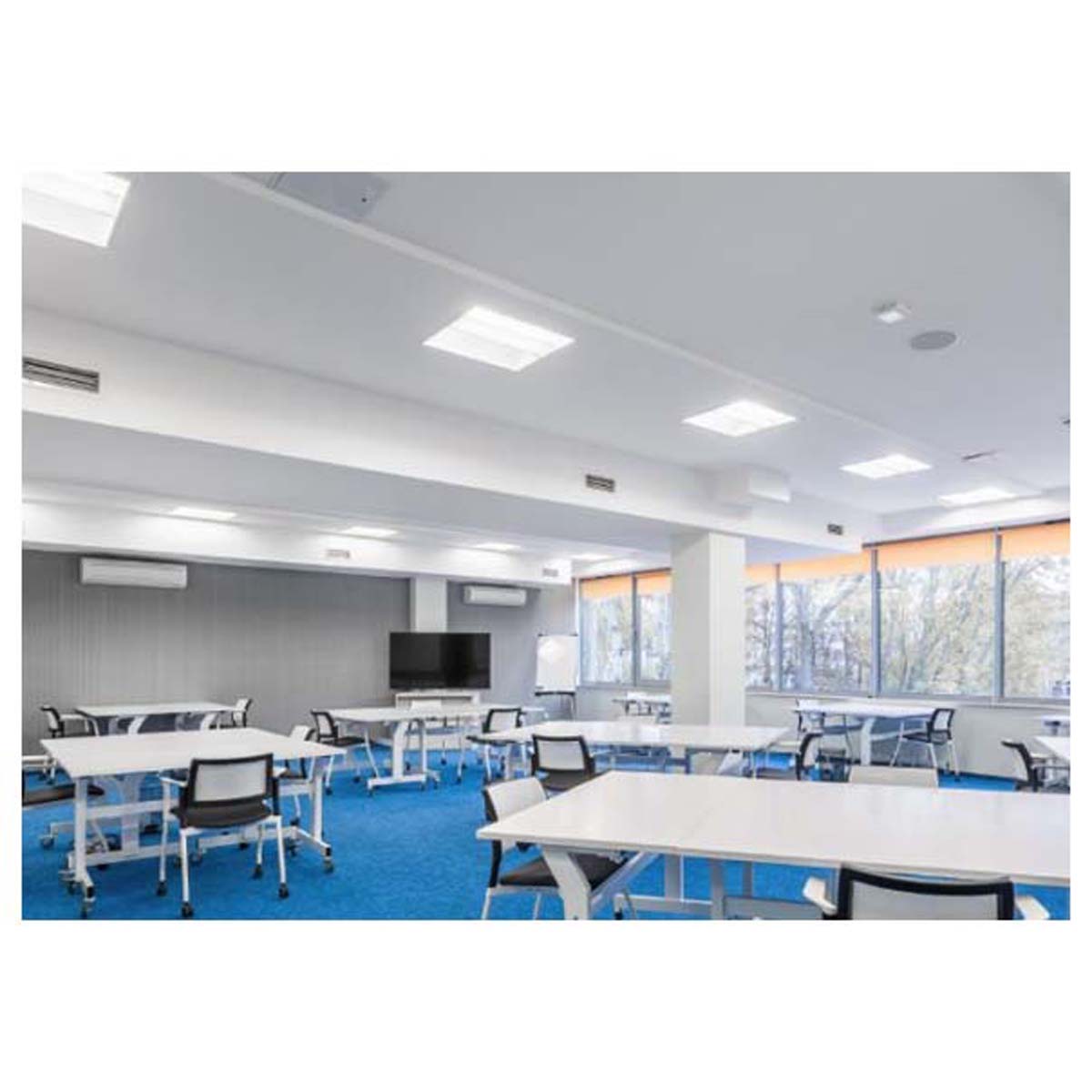

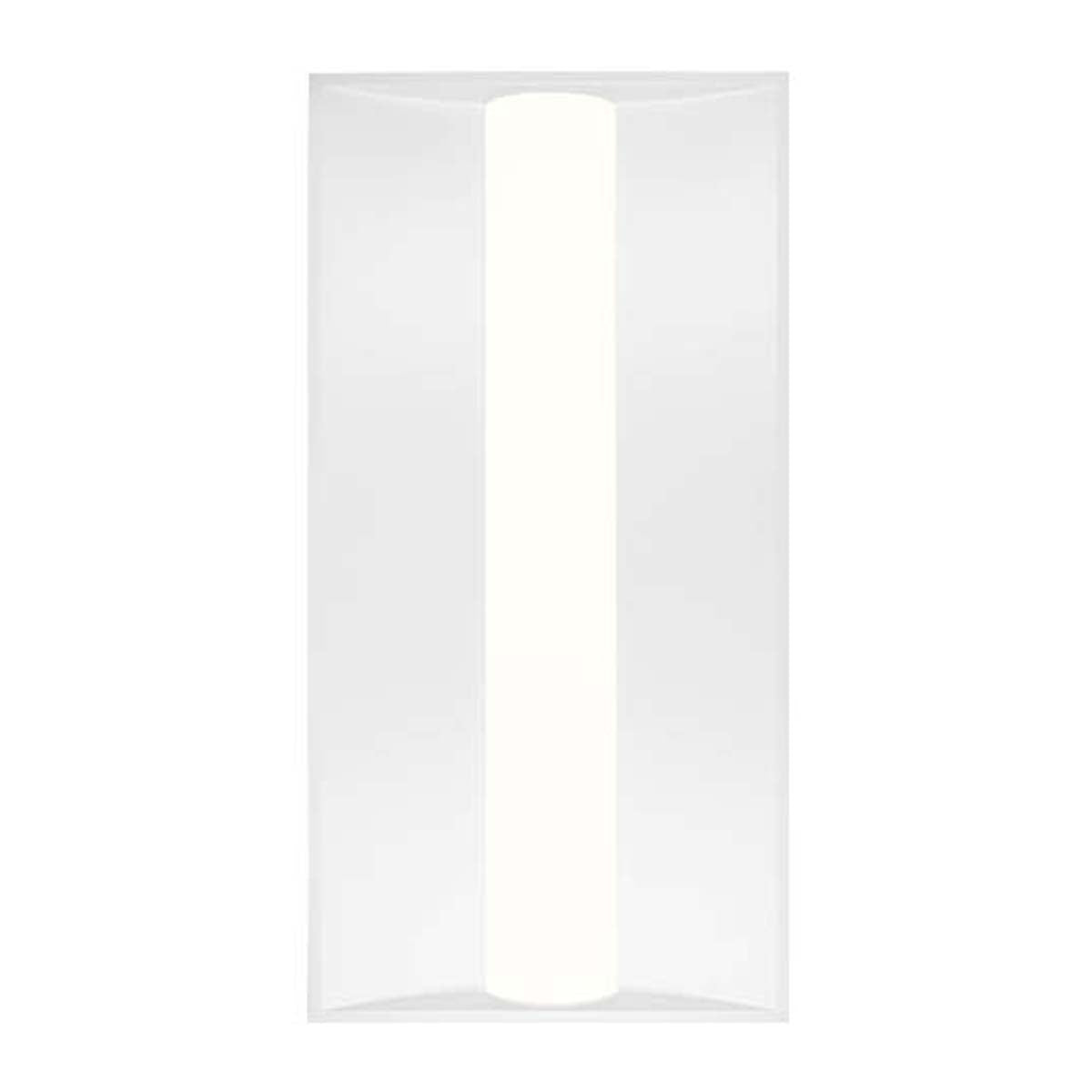

The TACS Select Architectural LED Troffer is an economical lighting solution for commercial, educational, medical, and retail applications where general-purpose ambient lighting is required. With its contemporary center lens design, TACS provides a soft natural glow and even illumination that minimizes glare. The CCT Selectable design allows for easy adjustment to 3500K, 4000K, or 5000K and selectable wattage allows the ability to tailor the brightness to the space. Available in 2×2′, or 2×4′ configurations, the TACS is an easy-to-install upgrade from linear fluorescent lighting to a long-lasting, energy-efficient LED solution..

Features:
- Precision engineered polycarbonate (PC) diffuser
- No visible diodes, hot-spots, or shadows providing high uniformity, and reduced glare
- 85CRI for good color definition in public spaces
- Input voltage of 120-277VAC

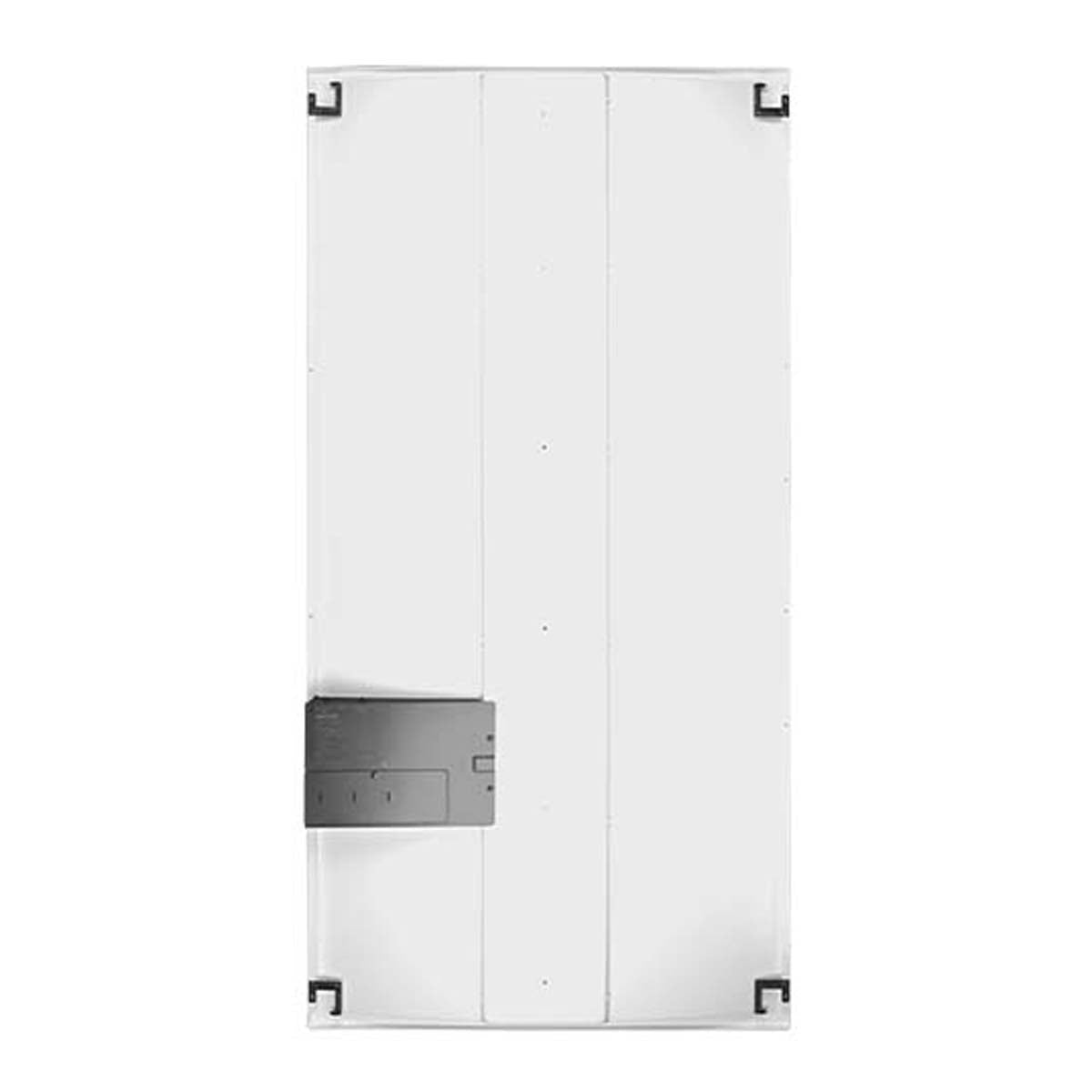

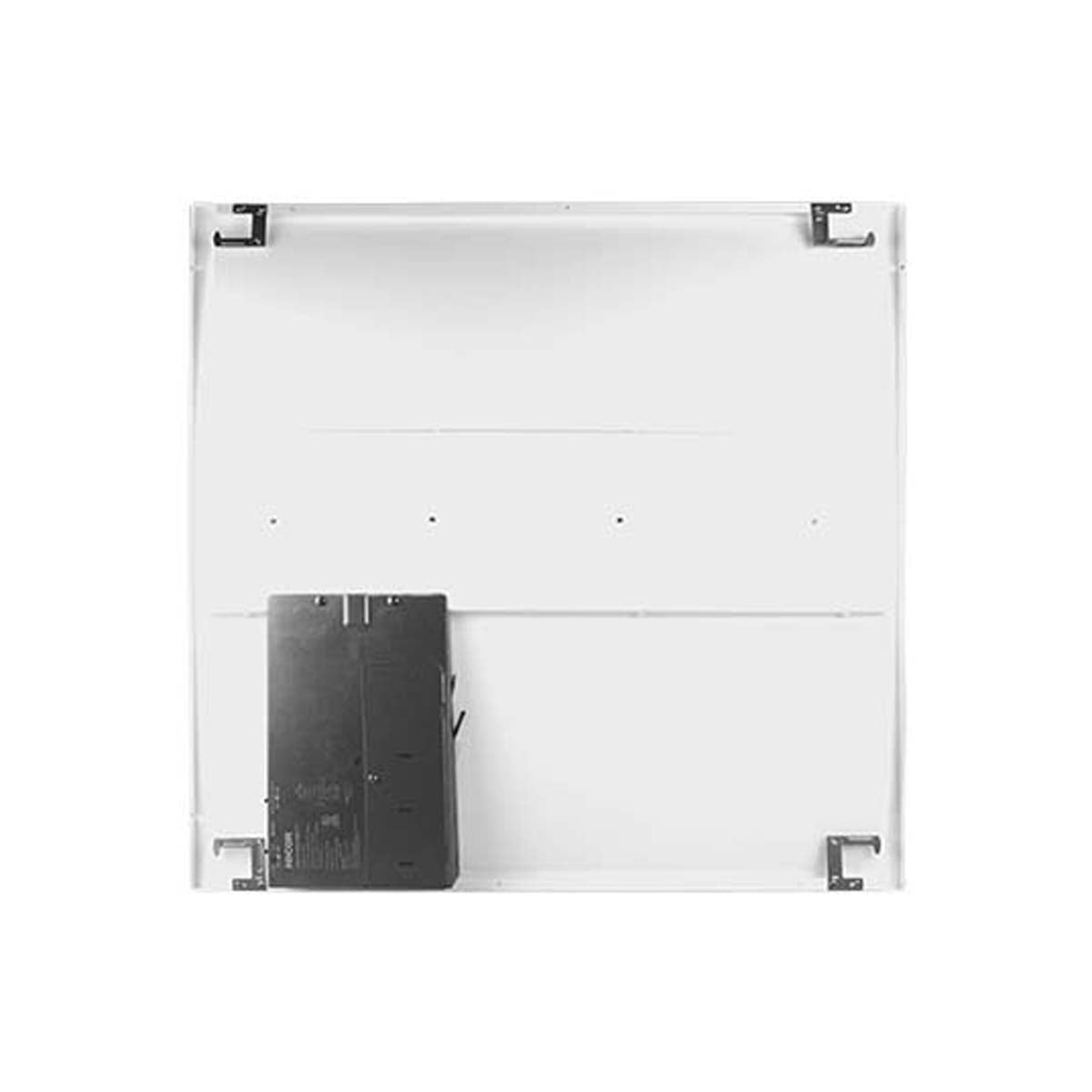

- CCT and Output selector switches accessible on junction box
- Full-range dimming via 0-10VDC (dim-to-off) controls
- Power factor > 0.9
- THD < 20%
- Operating temperature range: -4°F to 104°F (-20° to 40°C)
- Protected by NICOR 5-year limited warranty

Size	2x2
Product Color	White
Finish	Powder Coat
Light Source	LED
Wattage	38.5
Voltage	120-277v
Lumen	4822
Color Temperature (CCT)	3500K, 4000K, 5000k
CRI	85
Operating Temperature	-4°F to 104°F (-20° to 40°C)
Listings/Certifications	cULus1598 Listed for damp locations, cULus 8750 Listed LEDs, Certified for direct contact with insulation (IC), DLC 5.1 Standard listed, RoHS Compliant
Other Certifications	LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty	5 Year Limited

Manual:

TACS322U8 Data Sheet
TACS322U8 Installation Manual
