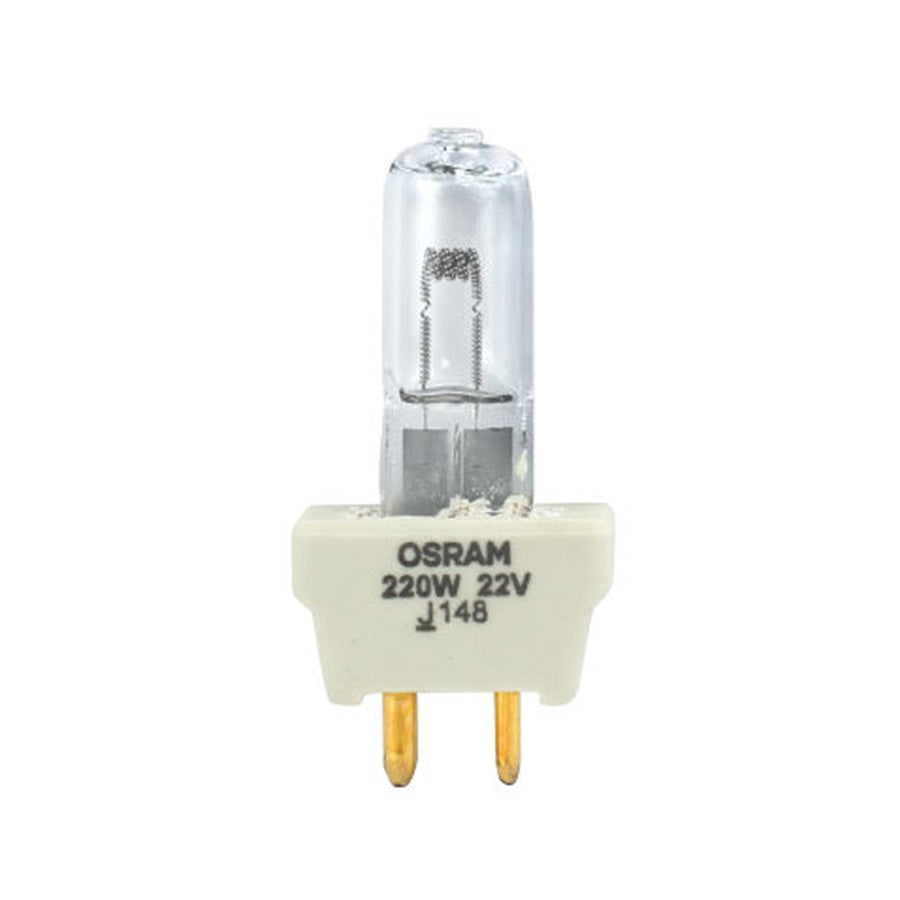

OSRAM 220T4Q/2PPF 220W 22V GY9.5 Halogen Medical Bulb

OSRAM SKU: 58939
$1371 $24.99 USD
211 in stock



Description

Osram 220T4Q/2PPF220W22V GY9.5 is a 220 watt T12 Halogen Lamp. Typical lifetime is 200 hours. This lamp has a GY9.35 Bipin base.

Specs

Abbreviation Name 220T4Q2PPF220W22VGY9.5
Application Medical Overhead Illumination
Average Rated Life (hr) 200

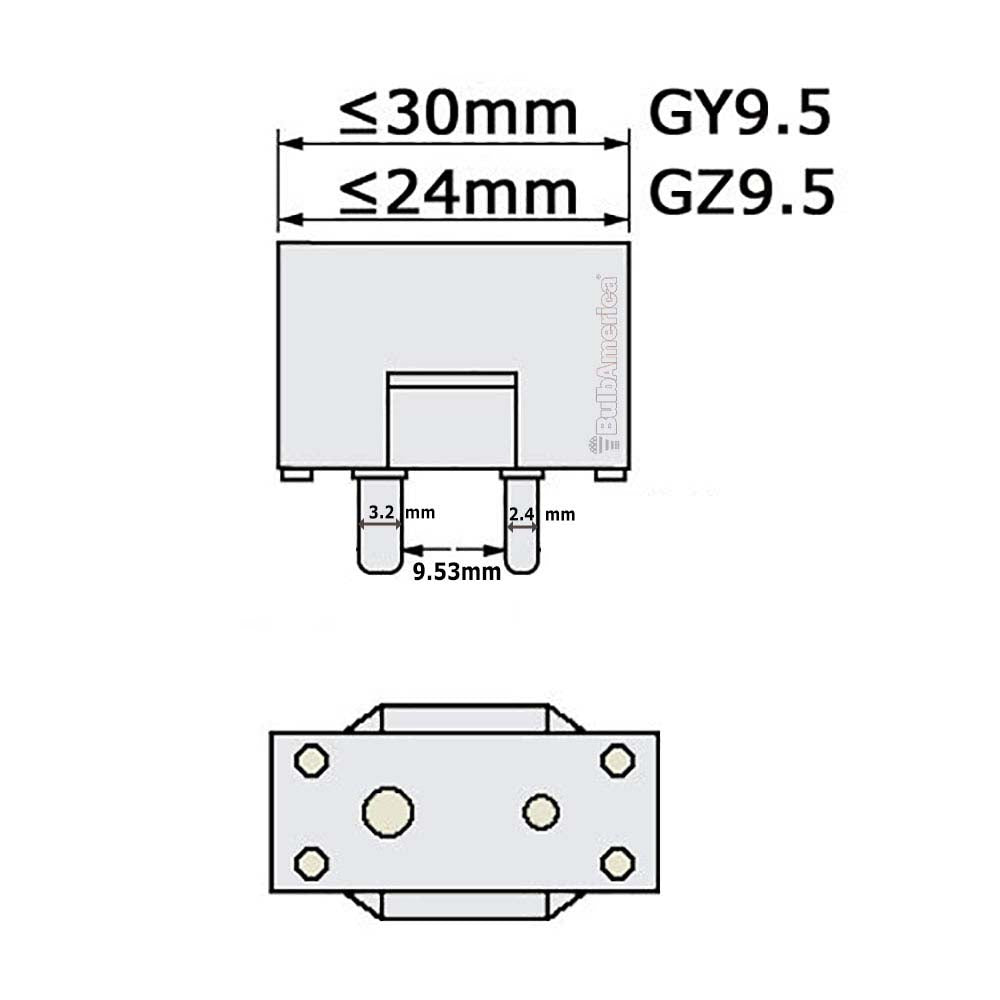

Base GY9.35 Bipin
Bulb T12
Class C (gas)
Color Rendering Index (CRI) 100
Color Temperature (K) 3250
Diameter d (in) 0.5
Diameter d (mm) 12.7
Distance a (in) 1.525
Distance a (mm) 39.1
Filament CC-6
Lamp Finish Clear
Length l (in) 2.574
Length l (mm) 66
Length l max. (in) 2.574
Length l max. (mm) 66
Light Center Length - LCL (in) 1.525
Light Center Length - LCL (mm) 39.1
Luminous Flux (lm) 6200
Maximum Overall Length - MOL (in) 2.574
Maximum Overall Length - MOL (mm) 66
Nominal Voltage (V) 22
Nominal Wattage (W) 220
Operating Position Any
Type of Current AC
