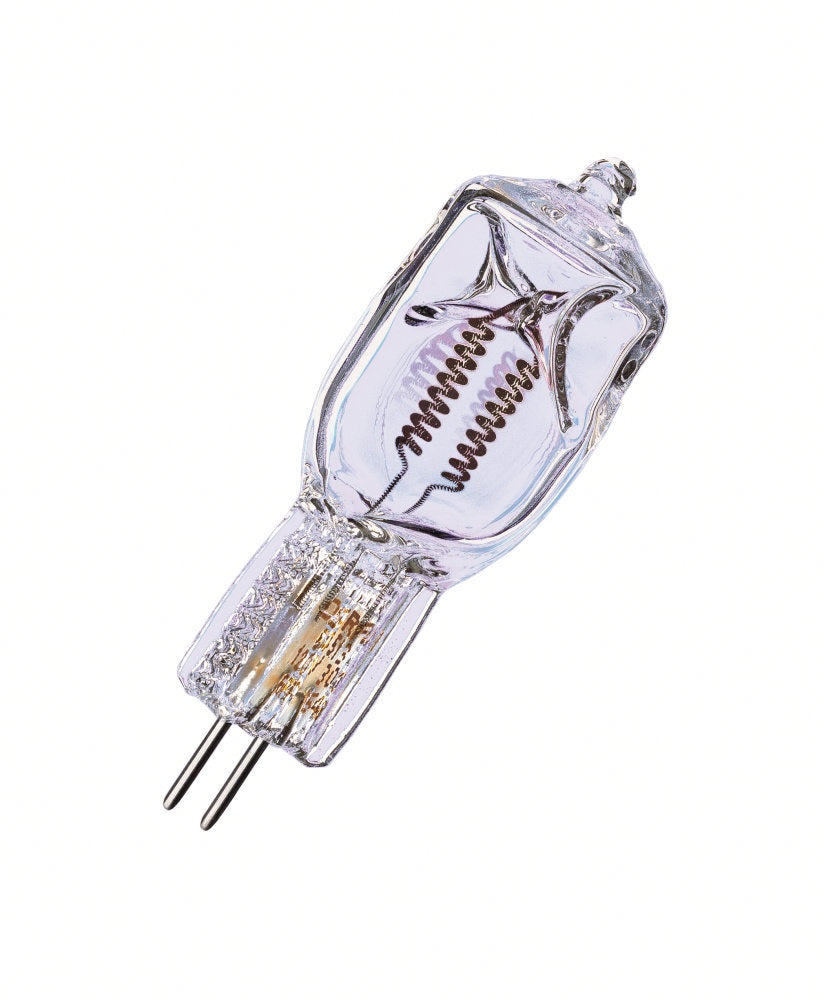

OSRAM 64515 - 300W 230V GX6.35 Bipin Stage Studio Halogen Bulb

OSRAM 64515 - 300W 230V GX6.35 Bipin Stage Studio Halogen Bulb

OSRAM SKU: 54768
$899 $19.99 USD
12 in stock




Description

This item is discontinued with no available replacement at this time. For further information, please contact our sales department.

OSRAM 64515 - 300W 230V GX6.35 Bipin Stage Studio Halogen Bulb

Application
- Projector - Overhead

Specs

Abbreviation Name 64515
Average Rated Life (hr) 15
Base GX6.35 Bipin
Bulb T6
Class C (gas)
Color Rendering Index (CRI) 100
Color Temperature (K) 3300
Diameter d (in) 0.728
Diameter d (mm) 18.5
Distance a (in) 1.053
Distance a (mm) 27
Filament Dimensions Length (in) 0.492
Filament Dimensions Length (mm) 12.5
Filament Dimensions Width (in) 0.385
Filament Dimensions Width (mm) 9.8
Length l (in) 2.086
Length l (mm) 53
Length l max. (in) 2.086
Length l max. (mm) 53
Light Center Length - LCL (in) 1.053
Light Center Length - LCL (mm) 27
Luminous Flux (lm) 9600
Maximum Overall Length - MOL (in) 2.086
Maximum Overall Length - MOL (mm) 53
Nominal Voltage (V) 230
Nominal Wattage (W) 300
Operating Position s 90
Reflector Coating 18.5
Type of Current AC
