OSRAM 55035 1200W GX9.5 for Vari-Lite VL5 & VL500 Moving Light Replacement Bulb

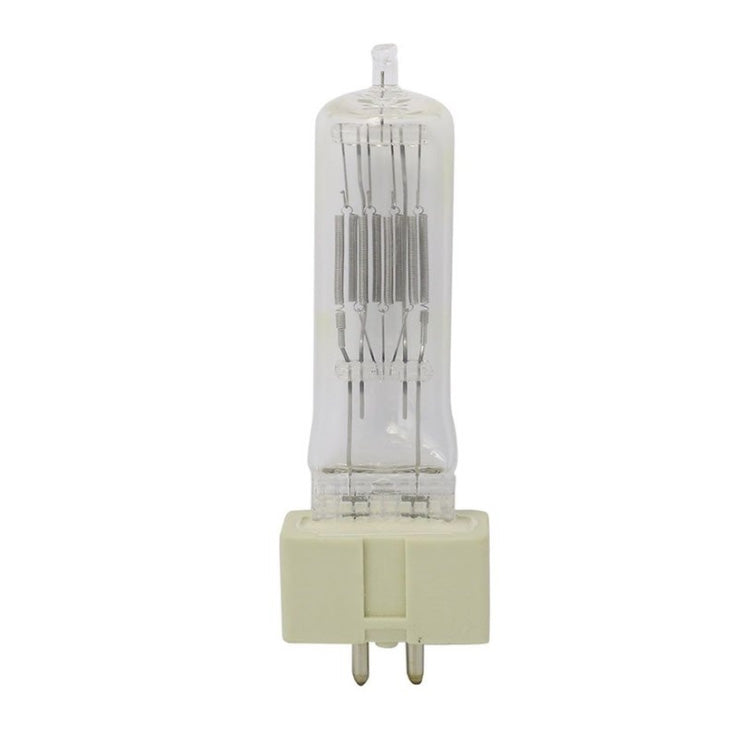

OSRAM 55035 1200W GX9.5 120V Replacement Bulb

The OSRAM 55035 bulb is a 1200W, 120V halogen lamp with a GX9.5 base, primarily used in professional stage and studio lighting equipment. It's commonly found in Vari-Lite luminaires, including the VL5, VL500, VL500D, VL500TM, VL500DTM, VL550, and 500TM Wash models. ​
Key specifications include a luminous flux of 34,200 lumens, a color temperature of 3200K, a color rendering index (CRI) of 100, and an average rated life of approximately 150 hours. The bulb features a C-13D filament and can operate in any position, making it versatile for various lighting setups. ​
Due to its high wattage and heat output, the OSRAM 55035 should be used in fixtures equipped with appropriate safety measures, such as protective shields or grids, to prevent injury or damage in case of lamp failure.

Features:
- Robust construction for reliable, lasting performance
- Consistent color over the life of the lamps
- Instant on and nearly constant luminous flux over the life of the lamp
- Broad product portfolio supporting the stage and studio markets
- Dimmable with traditional amber shift

Applications:
- Stage and Theatre productions
- Studio, TV, and Film lighting
- Professional photography setups
- Club and disco lighting environments ​

Abbreviation Name	1200W120VGX95
Average Rated Life (hr)	150
Base	GX9.5
Bulb	T8
Color Rendering Index (CRI)	100
Color Temperature (K)	3200
Cooling	Required
Diameter d (in)	0.984
Diameter d (mm)	25
Filament	C-13D
Filament Dimensions Length (in)	0.465
Filament Dimensions Length (mm)	11.8
Filament Dimensions Width (in)	0.59
Filament Dimensions Width (mm)	15
Lamp Finish	Clear
Light Center Length - LCL (in)	2.165
Light Center Length - LCL (mm)	55
Luminous Flux (lm)	34200
Maximum Base Temperature °C	350
Maximum Overall Length - MOL (in)	4.331
Maximum Overall Length - MOL (mm)	110
Nominal Voltage (V)	120
Nominal Wattage (W)	1200
Operating Position	Any
Type of Current	AC

Vari-Lite VL 500D Wash Standard Color Vari-Lite VL5 Vari-Lite VL500 Wash Vari-Lite VL550 Wash Vari-Lite 500TM Wash Luminaires Vari-Lite VL500TM Wash Vari-Lite VL500DTM Wash
