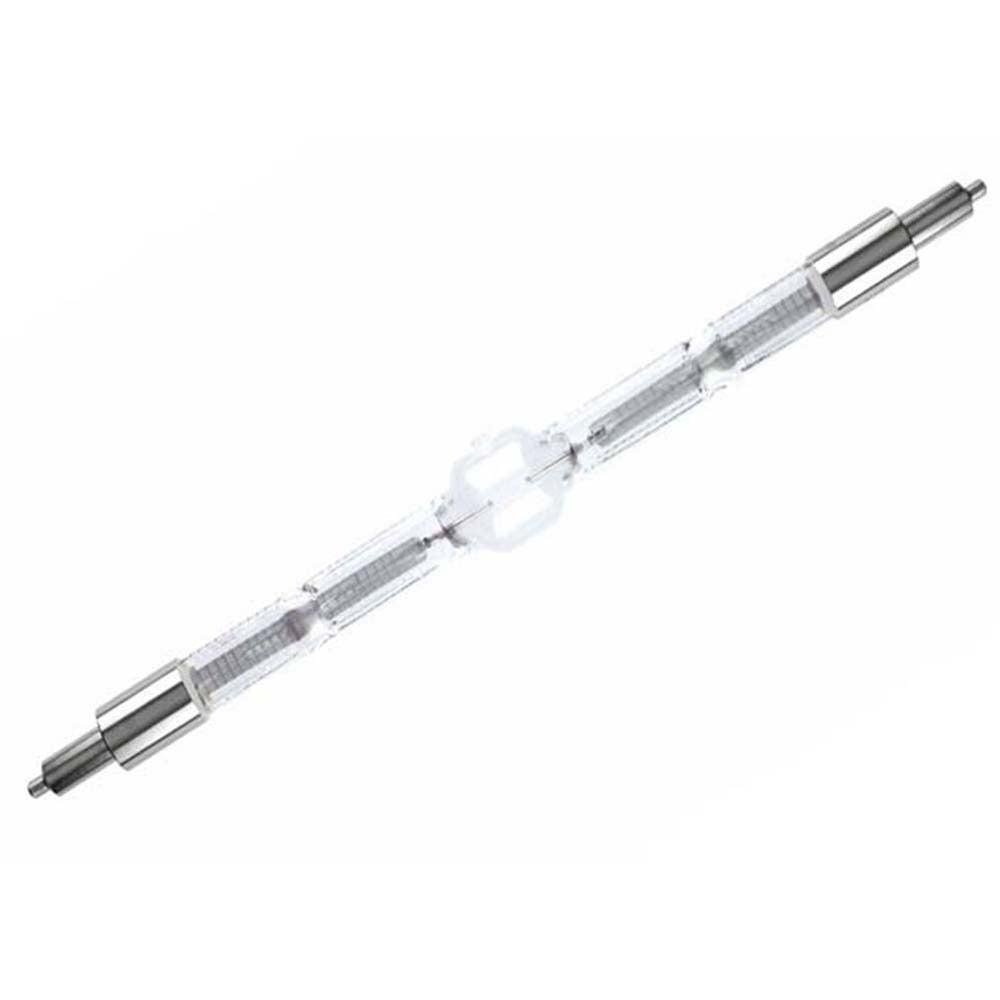

OSRAM 56783 HMI 4000W/DXS SOLAR Double Ended Metal Halide Light Bulb

OSRAM 56783 HMI 4000W/DXS HMI lamps are the professional's choice for exterior and interior daylight lighting. Thanks to the special blend of mercury and Metal Halide in the arc tube, HMI lamps generate the 7000K color temperature required to match natural daylight, making them very effective for stage lighting and large screen projection applications. Excellent hot-restart.

Product Features:
- Color temperature: approx. 7,000 K (Daylight)
- High color rendering index: Ra > 90
- Very bright with luminous flux up to 2.3 million lumen.
- Very high luminous efficacy up to 100 lm/W.
- Robust design with eXtreme Seal (XS) technology, allowing up to 450 deg. C at the pinch seal.
- Hot restart capability.

Safety Advice:

Because of their high luminance, UV radiation and high internal pressure during operation, HMI lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.

Cross Reference:
- OSRAM 56783 HMI 4000 W/DXS SOLAR
- GE CSR 4000/DE
- USHIO UMI - 4000
- SLI BA 4000 W DE
- Koto DI-40

Manufacturer	OSRAM
PartNumber	56783
UPC	4052899152601
Abbreviation Name	HMI4000WDXS SOLAR
Bulb Type	High Intensity Discharge Bulbs (HID)
Shape	Double-Ended
Base	SFa21-12
Wattage	4000W
Voltage	201V
Luminous Flux (LM)	395000
Color Temperature (K)	7000K
Lamp Finish	Clear
Rated Life	500 hrs
Color Rendering Index (CRI)	90

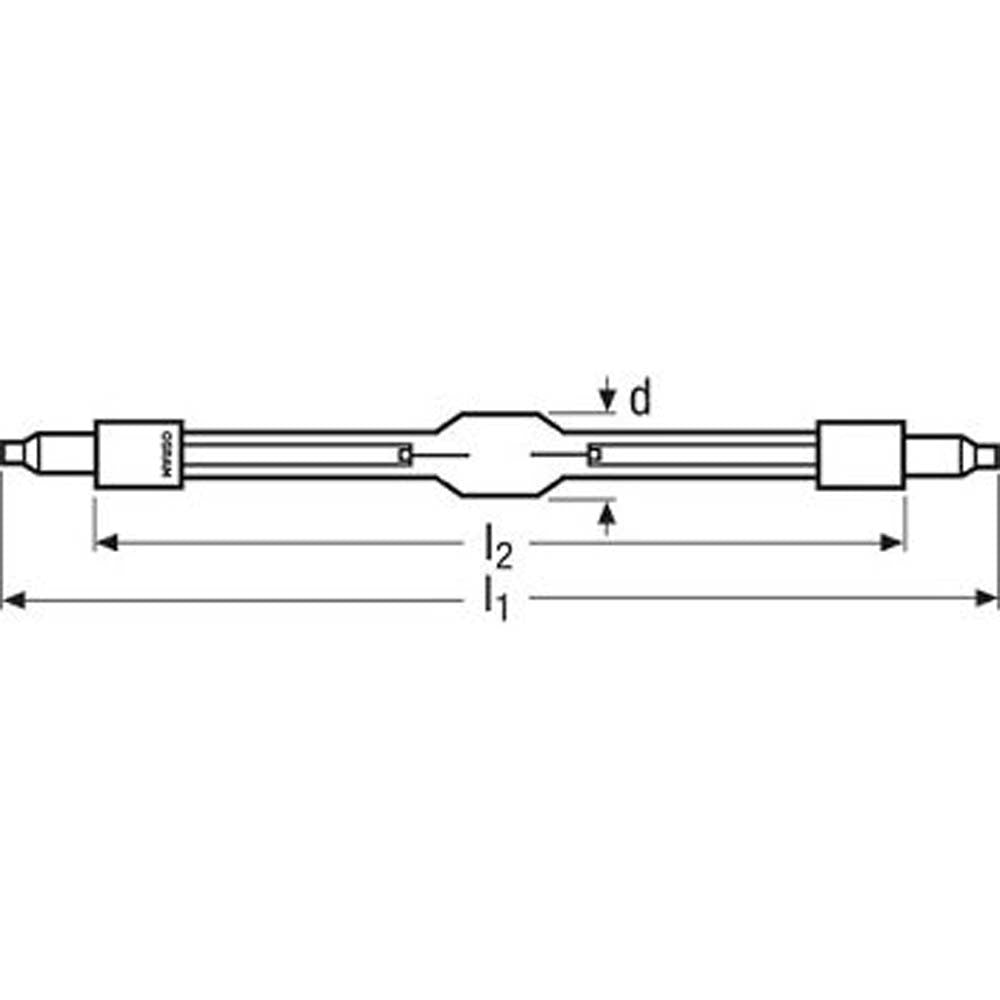

Diameter (in)	1.47
Maximum Overall Length (in)	15.94
CA Prop 65	Yes
CA Prop 65 Material	Mercury

Manual:

56783 Data Sheet
