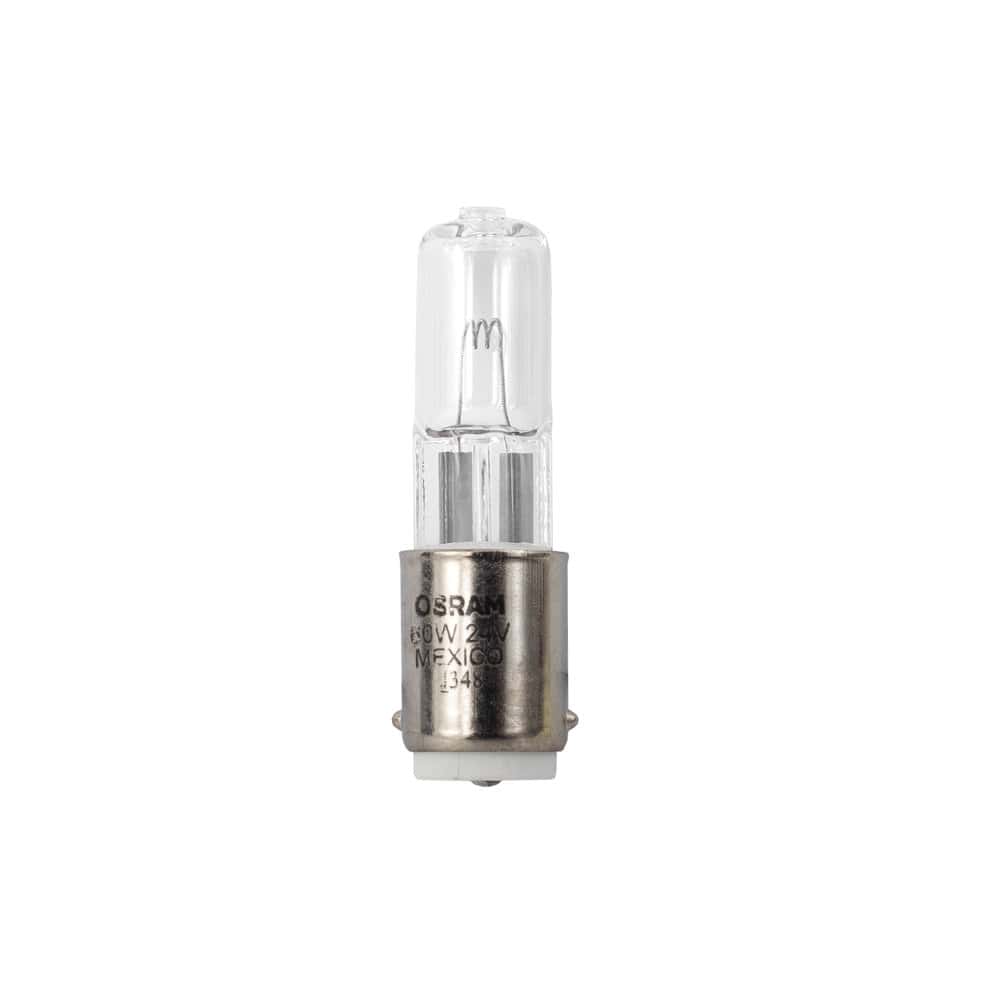

OSRAM 60T4QCL 60W 24V BA15D Base Halogen Medical Bulb

OSRAM SKU: 58729
$1395 $26.99 USD
156 in stock



Description

Osram 60T4QCL is a 60 watt T12 Halogen Lamp. Typical lifetime is 500 hours. This lamp has a BA15d Double Contact Bayonet base.

Specs

Abbreviation Name 60T4QCL
Application Medical Overhead Illumination
Average Rated Life (hr) 500
Base BA15d Double Contact Bayonet
Bulb T12
Class C (gas)
Color Rendering Index (CRI) 100
Color Temperature (K) 3100
Diameter d (in) 0.567
Diameter d (mm) 14.4
Distance a (in) 1.374
Distance a (mm) 37.1
Filament CC-6
Lamp Finish Clear
Length l (in) 2.362
Length l (mm) 63.8
Length l max. (in) 2.362
Length l max. (mm) 63.8
Luminous Flux (lm) 1280
Maximum Overall Length - MOL (in) 2.362
Maximum Overall Length - MOL (mm) 63.8
Nominal Voltage (V) 24
Nominal Wattage (W) 60
Operating Position Any
