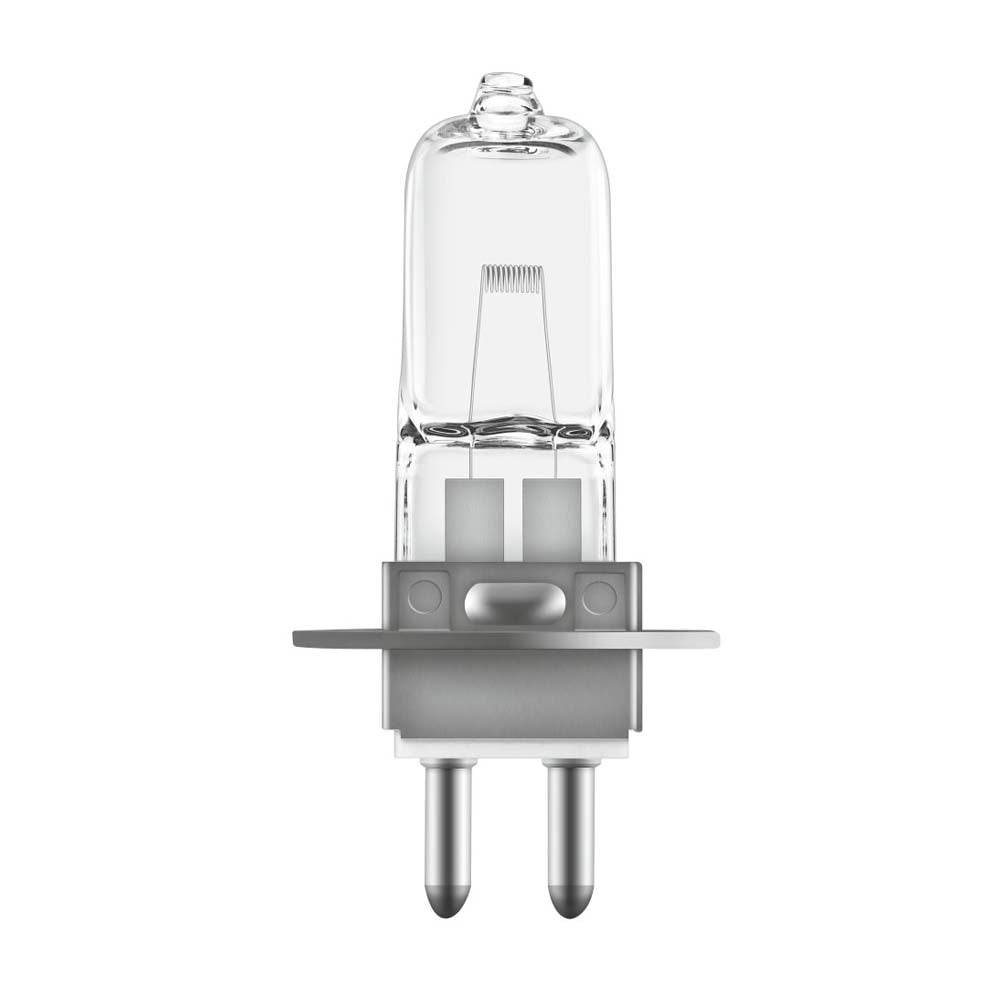

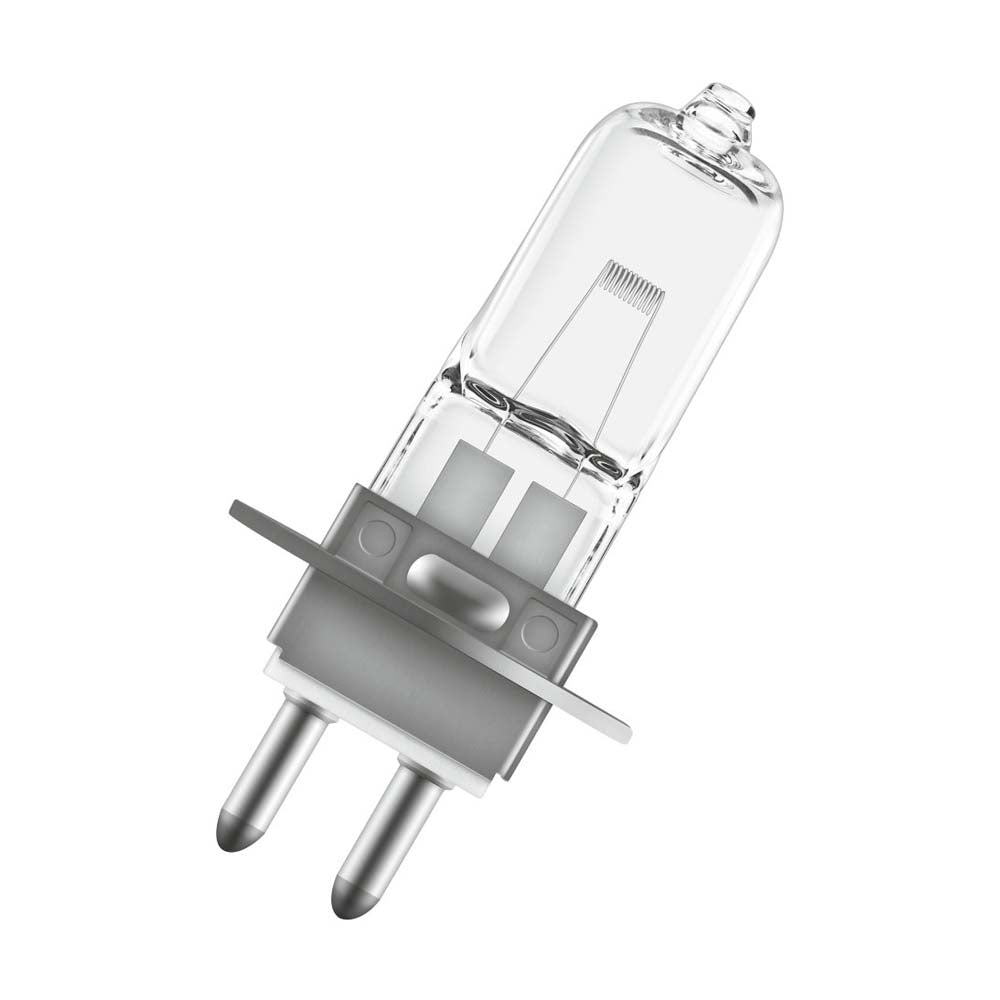

OSRAM 64222 10w 6v - HLX Tungsten Halogen Medical Fiber Optics Bulb

OSRAM 64222 - 10w 6v HLX Halogen lamps offer brilliant light, high light output, a constant color temperature and excellent color rendering throughout their lives.

The OSRAM 64222 HLX are easy to use, dimmable and do not contain any mercury. This makes them not only extremely powerful but also extremely eco-friendly.

Product family features:
- Xenon instead of krypton as the filler gas (XENOPHOT HLX versions)
- Luminous flux up to 10 % higher with same power consumption (XENOPHOT HLX versions)
- HLX tungsten halogen low-voltage lamp
- Dimmable (HLX)

Product family benefits:
- Compared to standard lamps up to 10 % higher luminous efficacy (HLX)
- Instant light (HLX)

Areas of application:
- Lamps for special luminaires
- Medical fiber optics (HLX)

Alternate Part Numbers:
- JC 6V 10W PG22
- Osram 64222
- Sylvania 54049
- Hikari M-01006
- HLX64222
- HLX
- Ritter 015-1385-00
- Xenophot
- Zeiss 3801-20-7030
- 3801-20-7030D
- 38-01-20-7030-D
- Ushio SM64222
- SM-64222
- Carley CL70676
- GER BER 6ER 1268

Electrical data
Nominal voltage	6v
Nominal wattage	10w
Photometrical data
Color temperature	3050k
Finish	Clear
Color rendering index Ra	100
Nominal luminous flux	150lm
Dimensions & weight
Diameter	9mm
Filament length	44mm
Length	14
Illuminated field	13.08mm
Light center length (LCL)	14mm
Filament diameter	0.8mm
Lifespan
Lifespan	300 hrs
Additional product data
Base	PG22 Pre-Focused 2 Pin
Shape	T3
Filament	C-6
Capabilities
Burning position	Universal
Type	Halogen
Certificates & standards
EEI – Energy Label	B

Manual:

64222 Data Sheet
