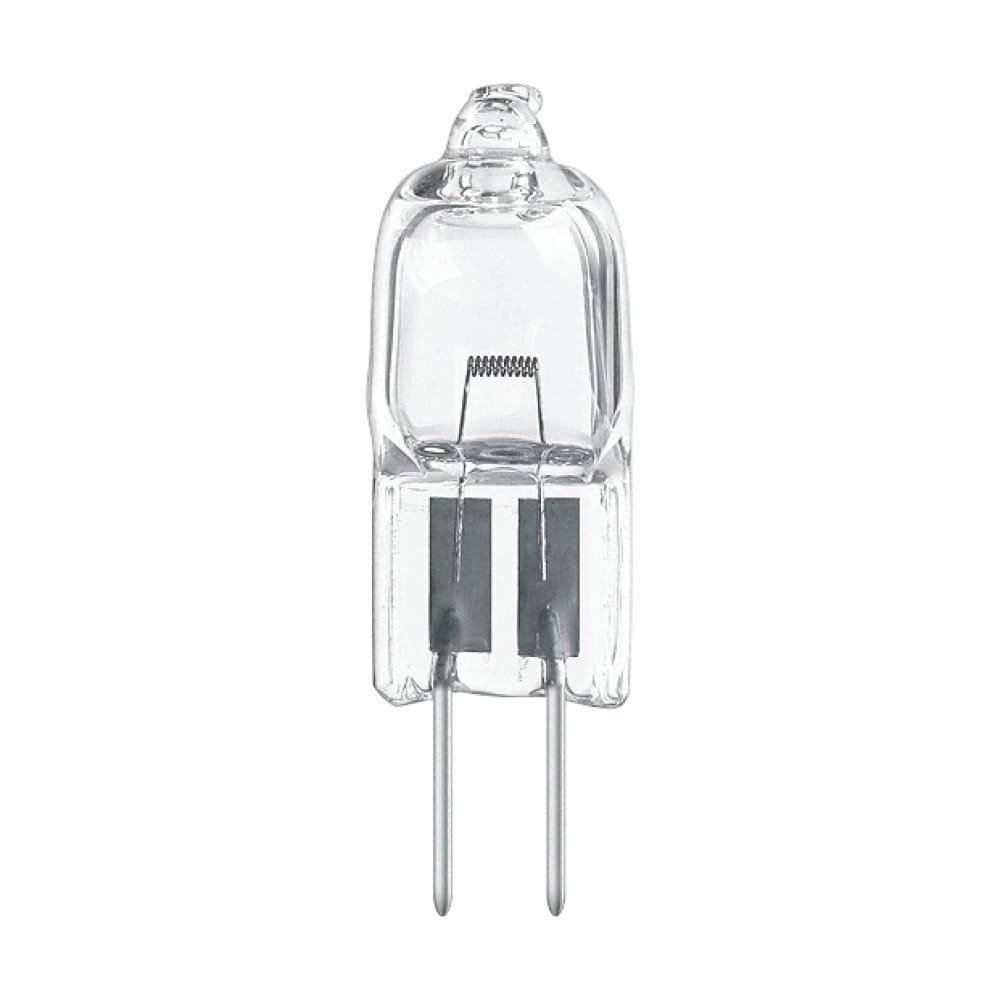

OSRAM 64223 HLX 10W 6V G4 Base Xenon Halogen Bulb

OSRAM 64223 HLX 10W 6V G4 Base Xenon Halogen Bulb

OSRAM SKU: 54245
$1999 $38.99 USD
233 in stock




1

Description

OSRAM 64223 HLX 10w 6v Halogen lamps offer brilliant light, high light output, a constant color temperature and excellent color rendering throughout their lives.

The OSRAM 64223 HLX are easy to use, dimmable and do not contain any mercury. This makes them not only extremely powerful but also extremely eco-friendly.

The Osram 64223 HLX is the long life version of ESA 64225 HLX Lamp.
- 64223 - 150 Lumens, 300 hours
- ESA 64225 - 200 Lumens, 100 hours

Fetures
- Xenon instead of krypton as the filler gas (XENOPHOT HLX versions)
- Compared to standard lamps up to 10 % higher luminous efficacy (HLX) higher with same power consumption

Specs

Abbreviation Name 64223
Application Projector
Average Rated Life (hr) 300
Base G4 Bipin
Bulb T9
Class C (gas)
Color Rendering Index (CRI) 100
Color Temperature (K) 2900
Diameter d (in) 0.354
Diameter d (mm) 9
Distance a (in) 0.936
Distance a (mm) 24
Filament Dimensions Length (in) 0.027
Filament Dimensions Length (mm) 0.7
Filament Dimensions Width (in) 0.059
Filament Dimensions Width (mm) 1.5
Lamp Finish Clear
Length l (in) 1.482
Length l (mm) 38
LIF Code M/43
Light Center Length - LCL (in) 0.936
Light Center Length - LCL (mm) 24
Luminous Flux (lm) 150
Maximum Overall Length - MOL (in) 1.482
Maximum Overall Length - MOL (mm) 38
Nominal Voltage (V) 6
Nominal Wattage (W) 10
Operating Position Any
Reflector Coating 9
Type of Current AC
‎
